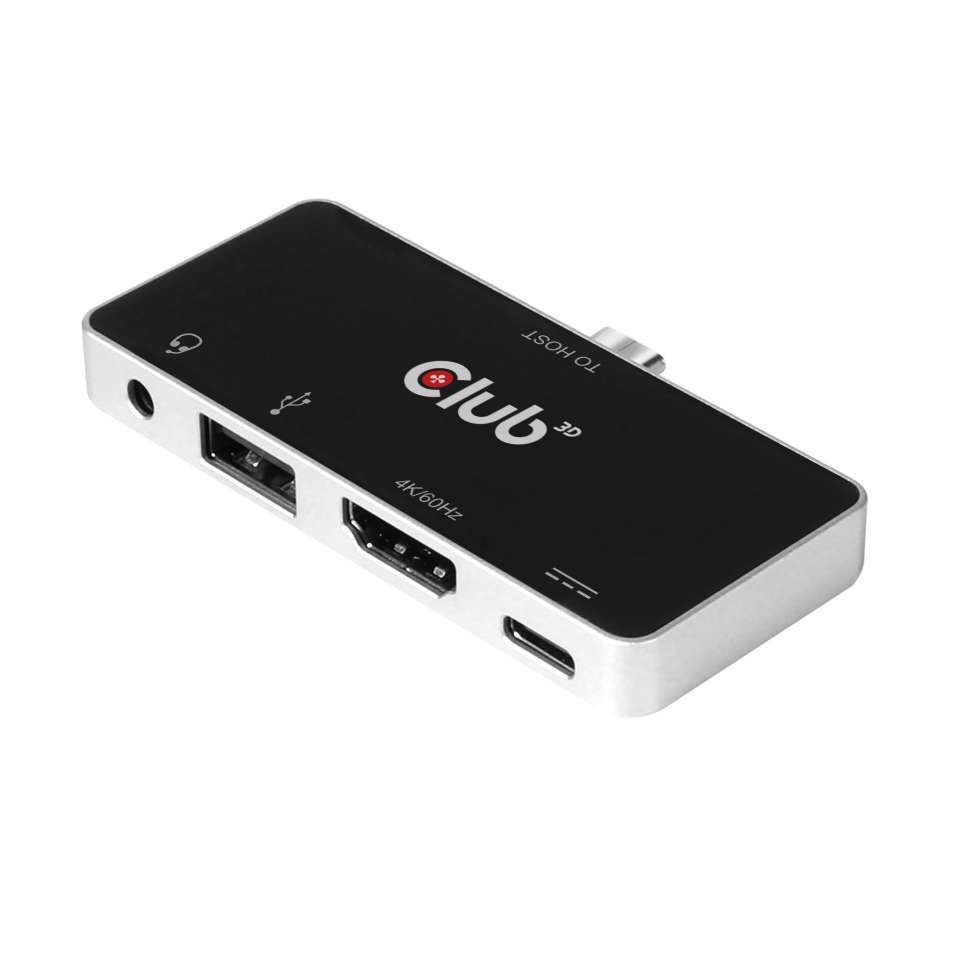

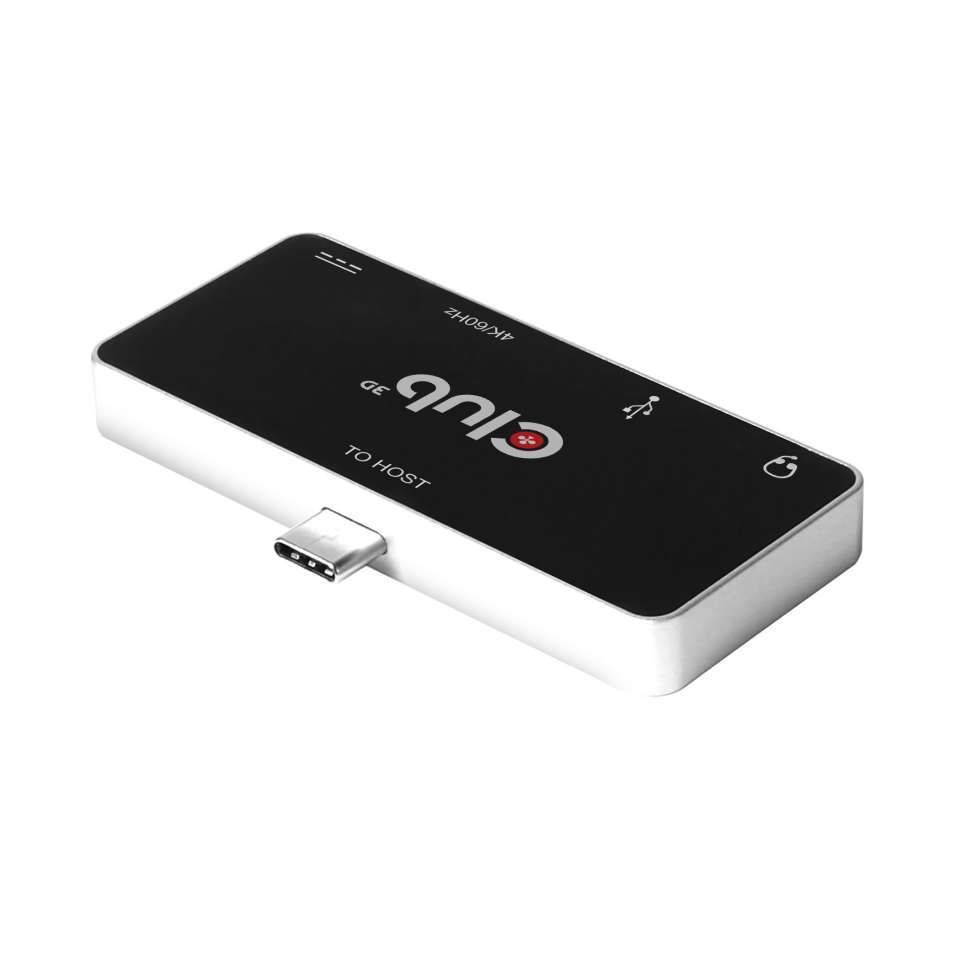

USB Hub Type C => HDMI 4K60Hz, USB Type C PD, USB Type A, Audio Socket *Club 3D*

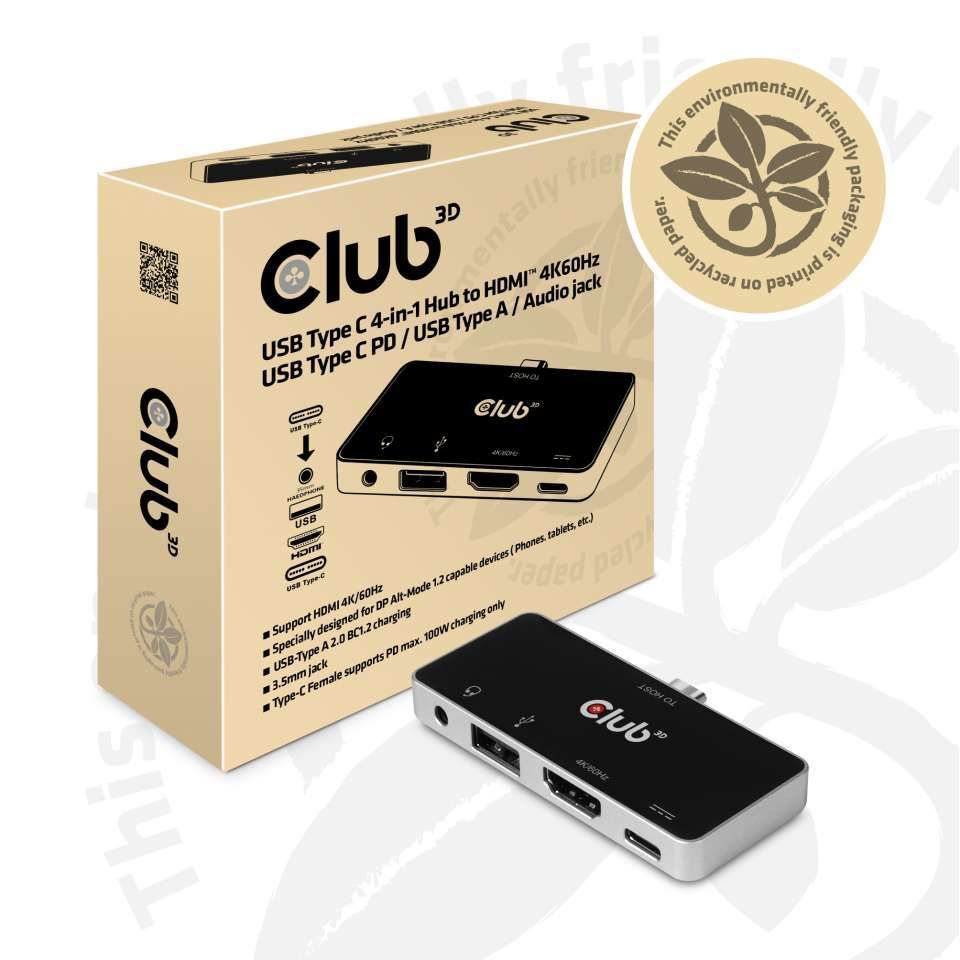

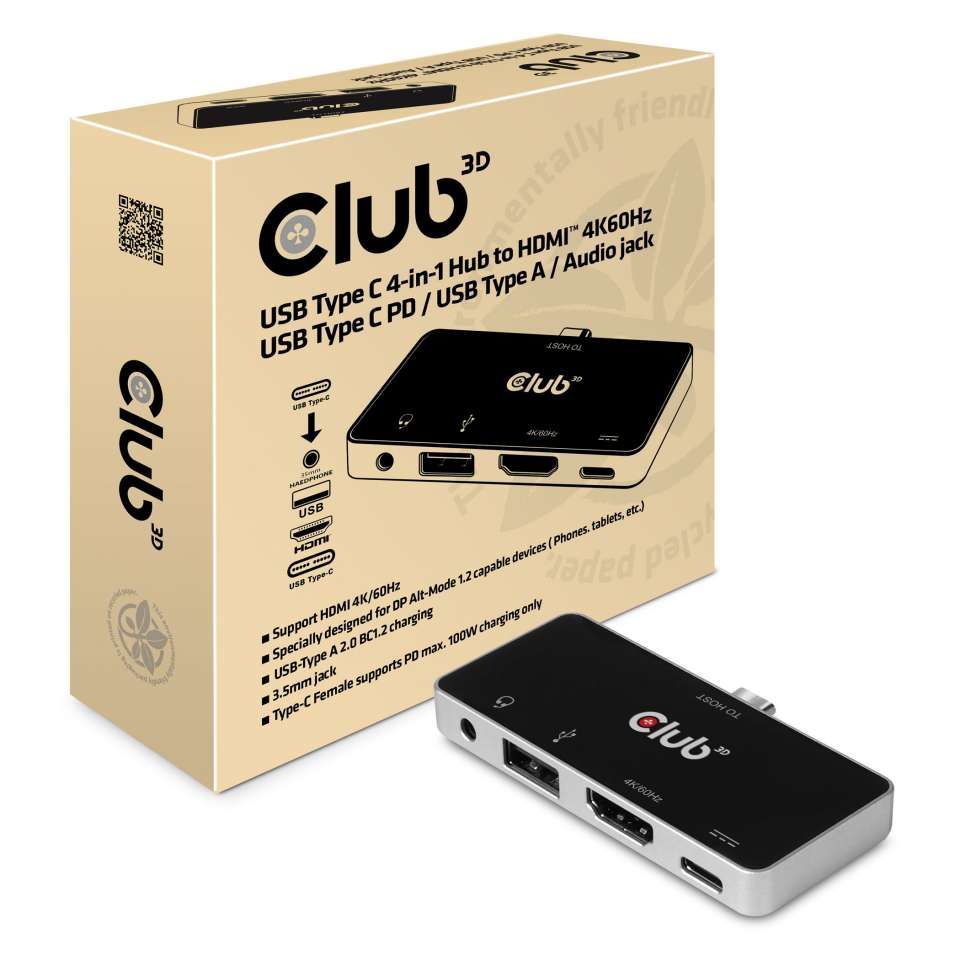

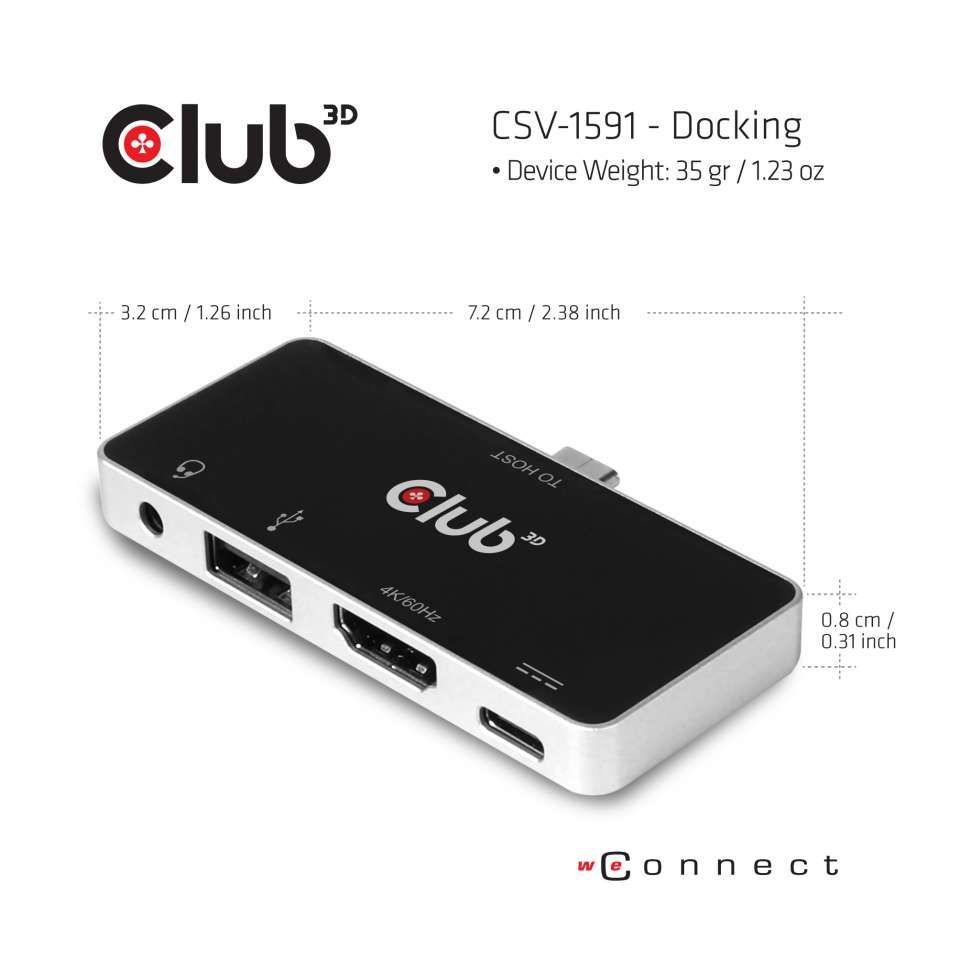

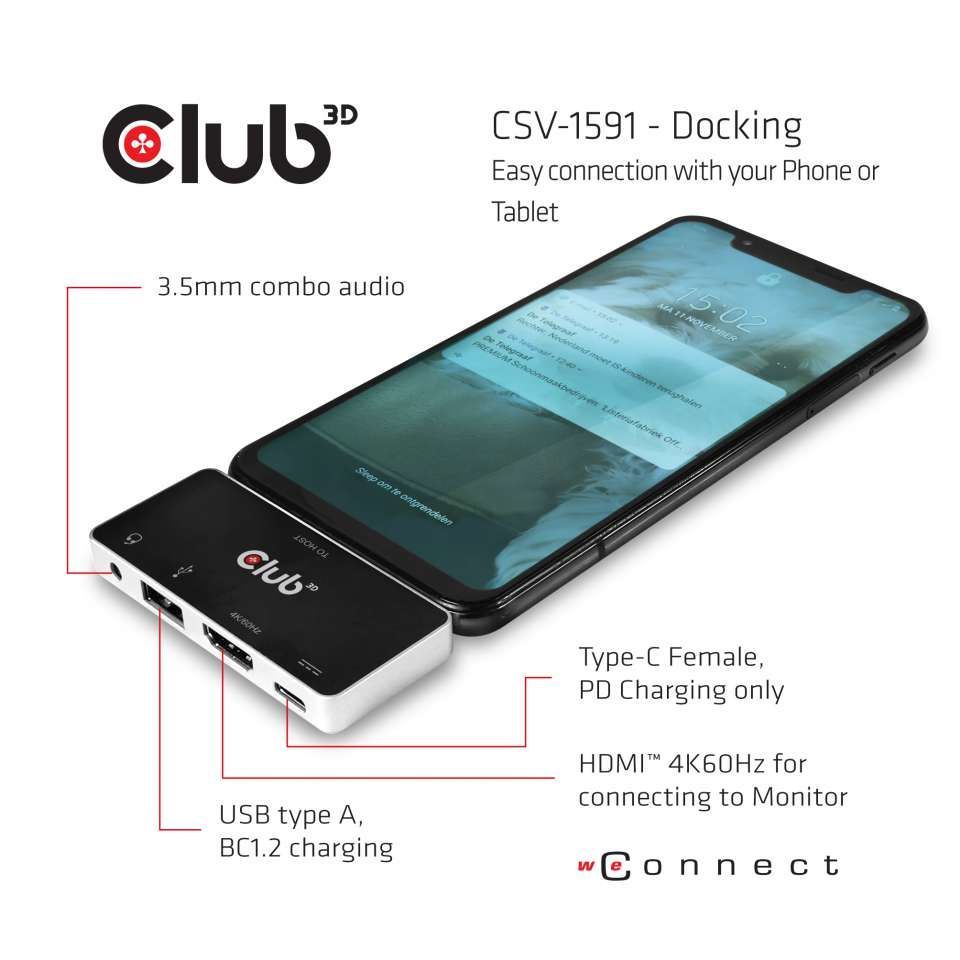

• Available interfaces: Upstream: 1x USB Type C plug (host connection) Downstream: 1x HDMI 4K60Hz socket for connection to the monitor, 1x USB Type A, BC1.2 charging, 1x USB Type C socket only PD charging, 1x.3.5mm Audio socket • Upstream: 1x USB Type-C male (connection to host) Supports DP1.2 Alt Mode, with maximum bandwidth of 5.4Gbps per lane, 4 lanes 21.6Gbps • Downstream: 1x HDMI socket. Supports HDMI max 4K/60Hz 4:4:4 8bit with 18Gbps bandwidth. Supports 6/8/10/12 bit color depth output. Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2. Supports HDCP 2.2 < HDCP1.4. Supports HDR 1x USB Type A 2.0 Max 480Mbps bandwidth • Supports BC 1.2 with max 7.5W(5V@1.5A) downstream charging • 1x 3.5mm audio jack* Supports 48K/44.1KHz sampling rate audio output *Note: Audio can be output via HDMI or the 3.5mm audio jack • In the packaging: CSV-1591, 4-in-1 hub, quick installation guide • Packaging size: 10x10x3cm • Product size: 7.2x3.2x0.9cm • Product weight: 35g • LDPE bag weight: 5g • Packaging weight : 65g • Total weight: 105g • Meets ROHS, FCC and CE EMI requirements
