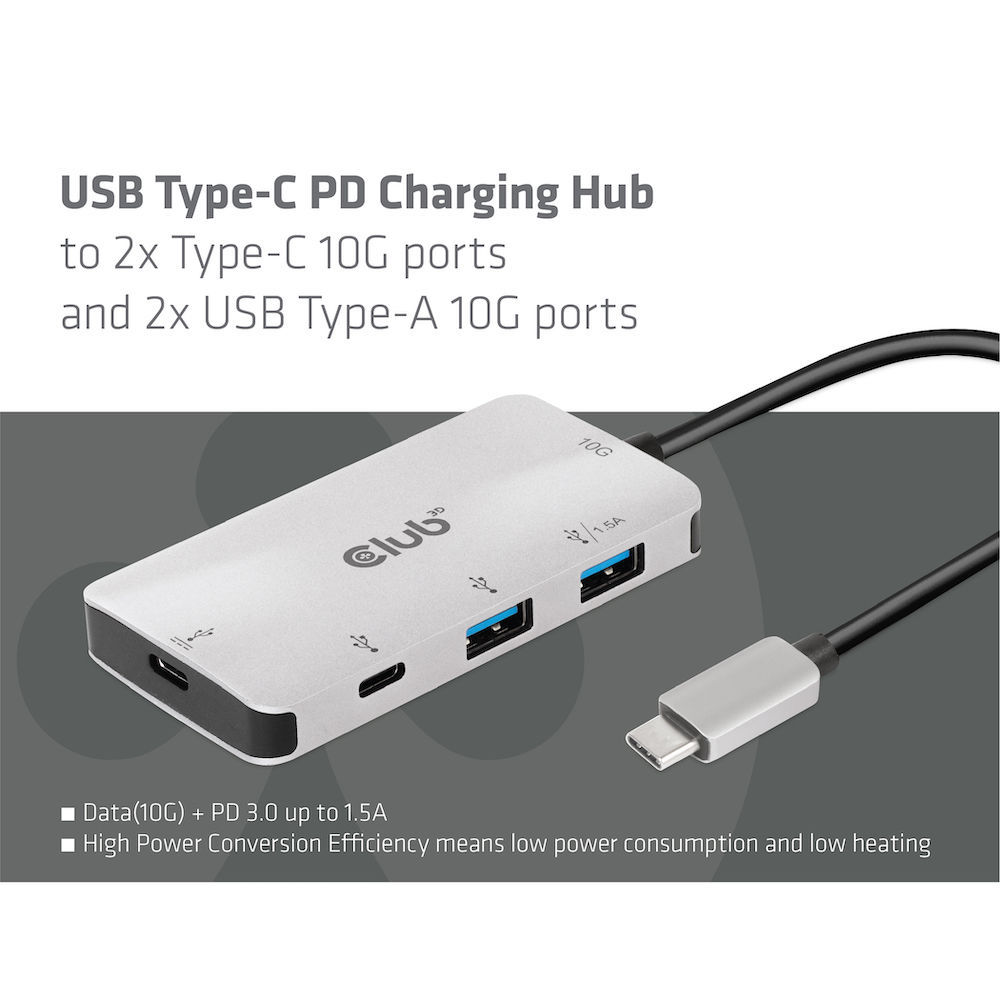

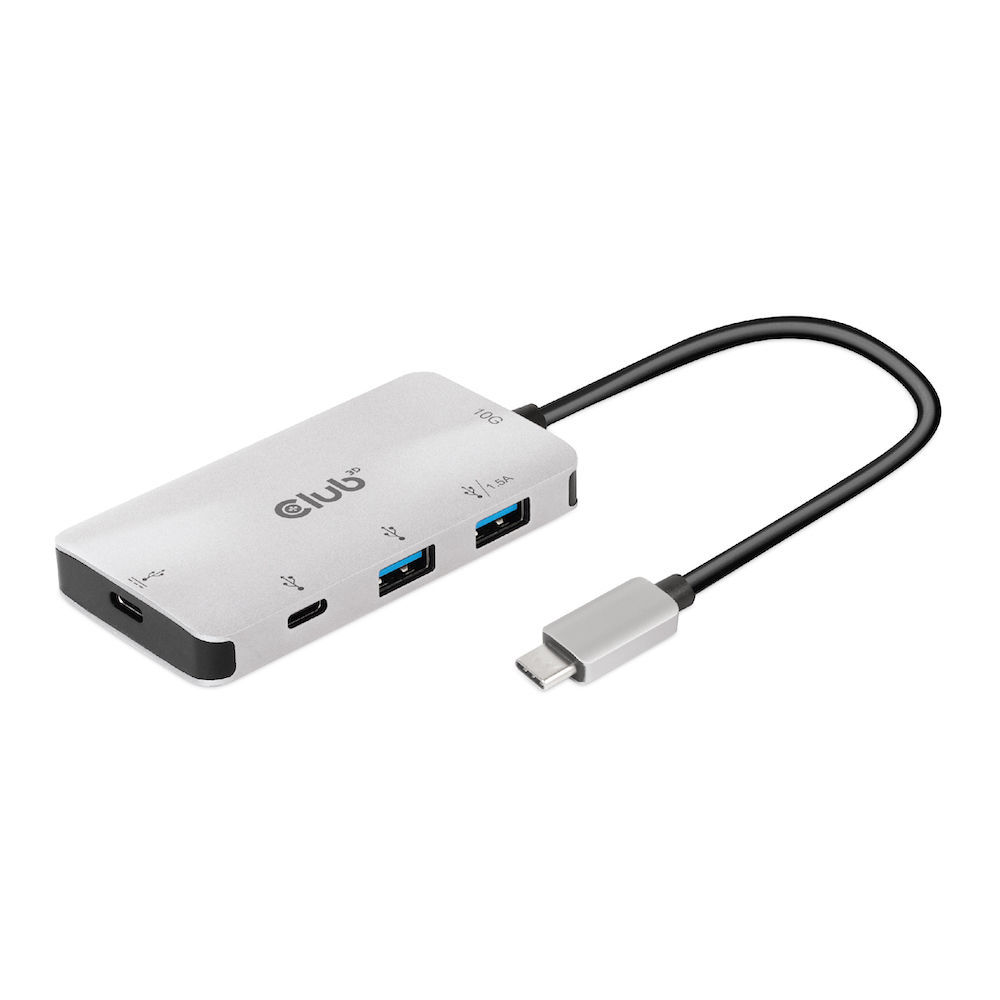

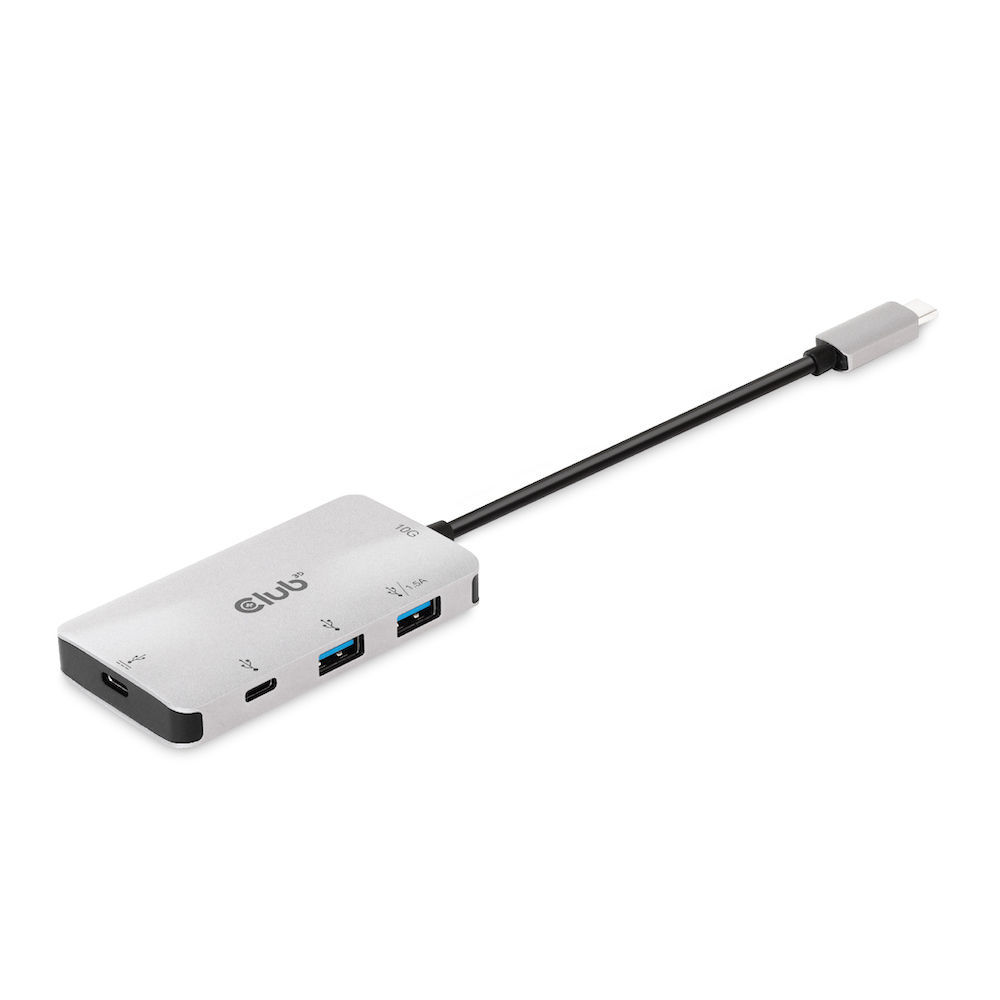

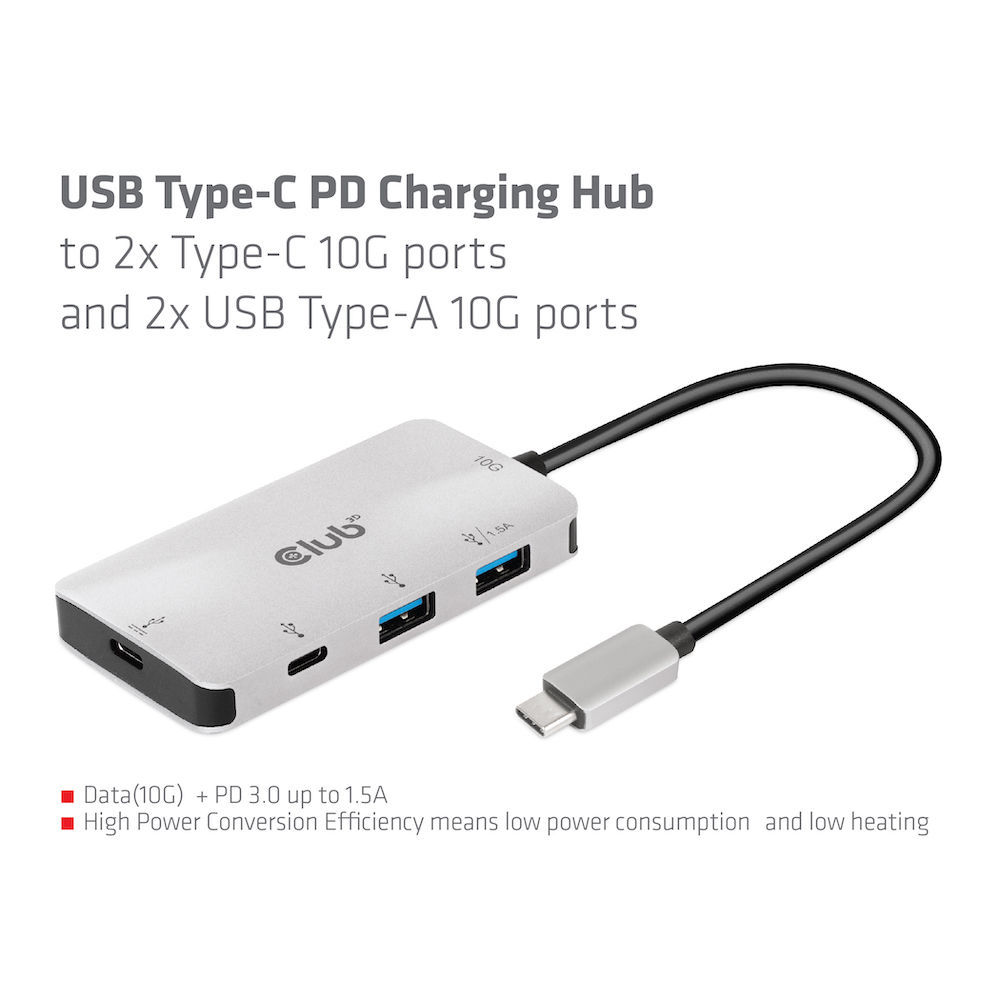

Club 3d CSV-1543 USB Hub 3.0 Type C => 2-way USB-A + 2-way USB-C Hub fast charging *Club3D* content_copy

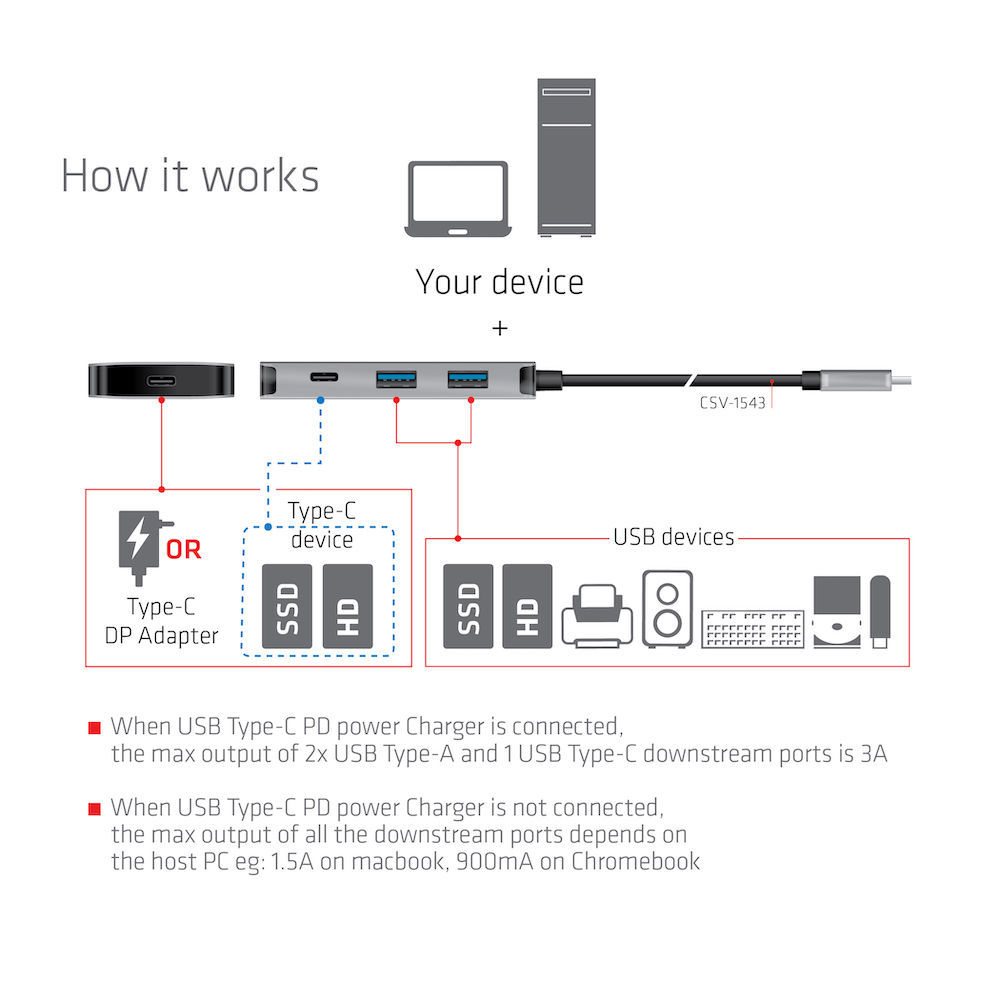

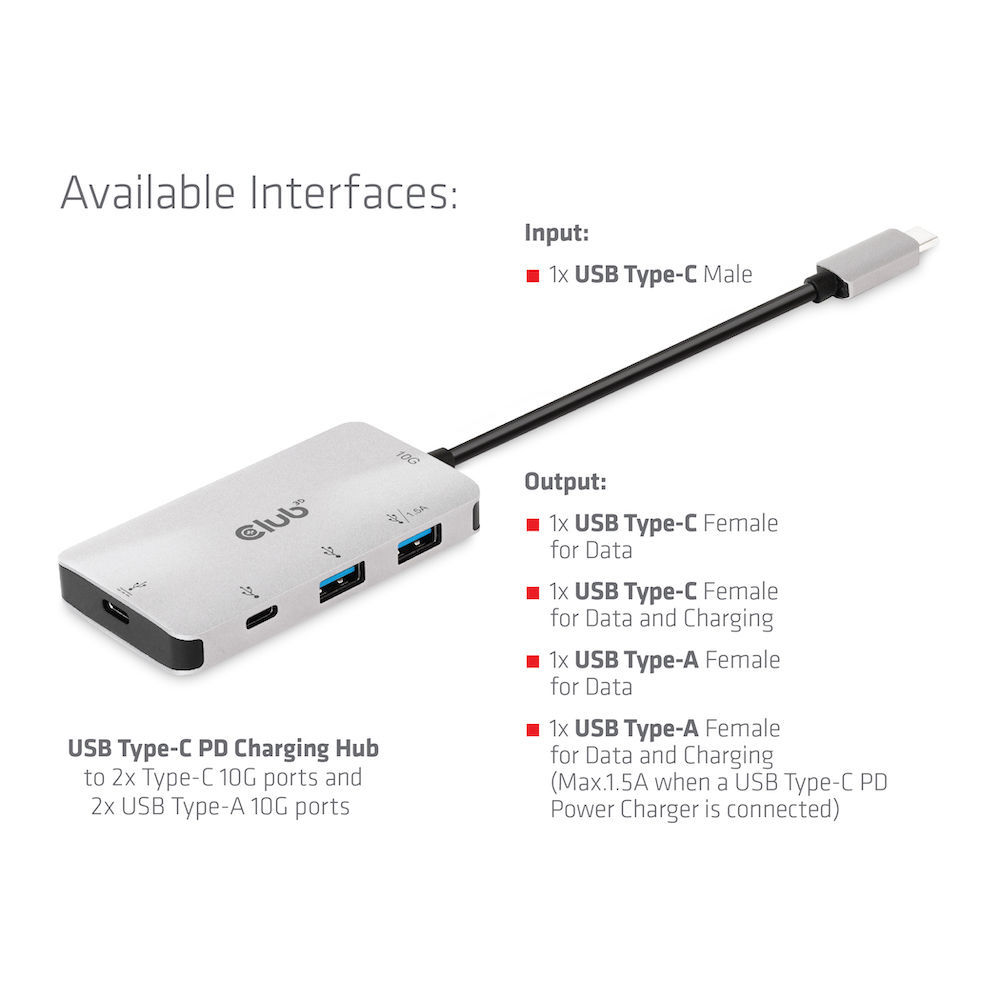

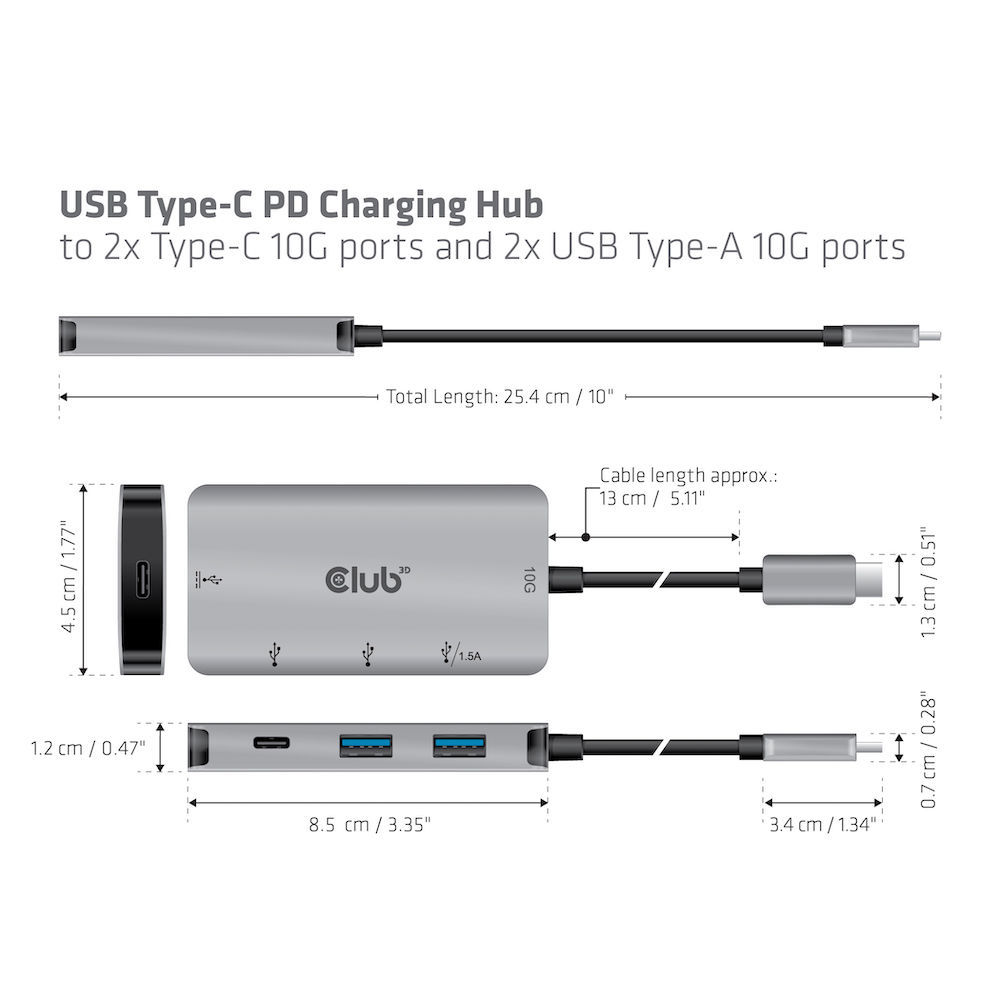

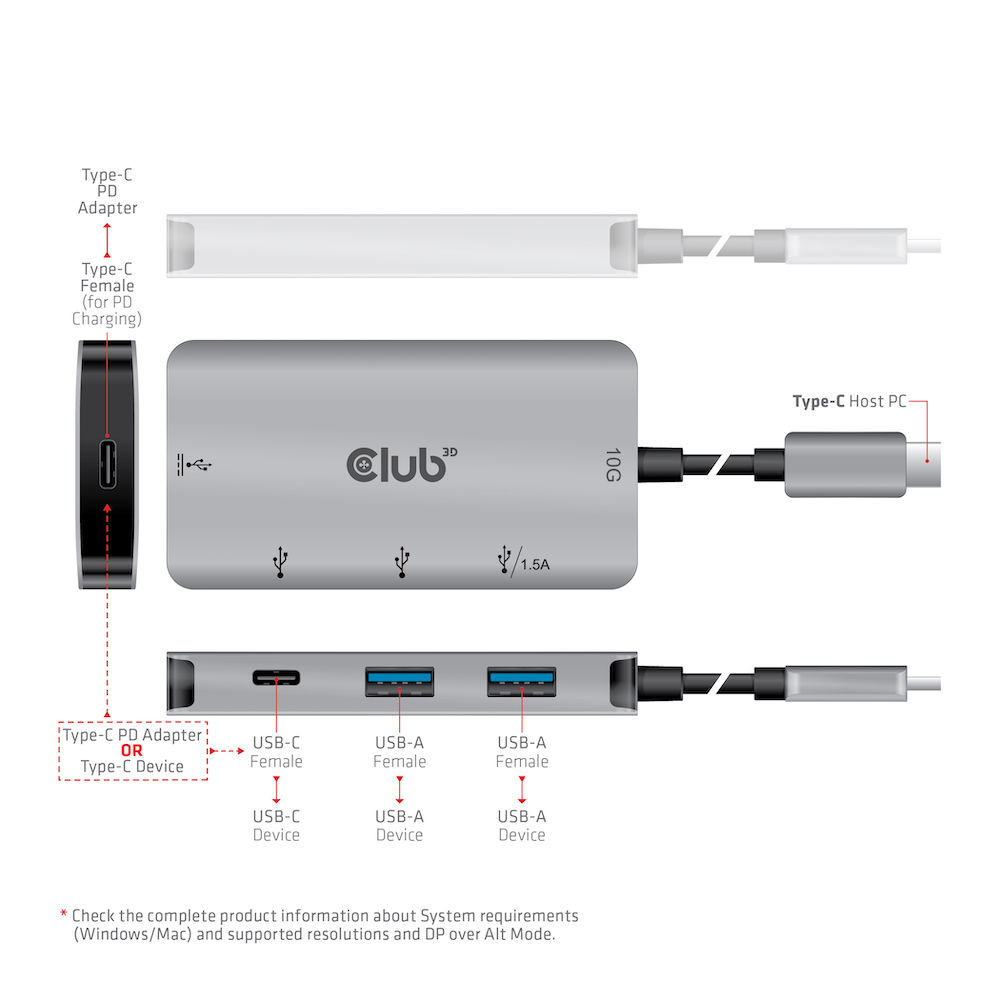

• Input: 1x USB Type-C plug • Output: 1x USB Type-C socket for data 1x USB Type-C socket for data and charging 1x USB Type-A socket for data 1x USB Type-A socket for Data and charging (max.1.5A when a USB Type-C PD charger is connected) • High power conversion efficiency, means low power consumption and low heating, 98.2%@Vin=5V, 92.5% @Vin=20V • Advanced power management • Supports Fast Role Swap with PD 3.0 • Supports USB Type-C input, 2x USB Type-C + 2x USB Type-A output • Compliant with USB 3.1 specification and backwards compatible with older versions • USB Type-A: Both USB Type-A ports support max. 10Gbps data transfer 1 USB Type-A supports 5V/1.5A downstream charging (when a Type-C PD charger is connected) • USB Type-C: 1 USB Type-C port supports max. 10Gbps data transfer the other Type-C port supports max. 10Gbps as downstream data port and max. 100W PD charging as upstream charging port • Packaging size: 7x32x3.5cm • Product size: 8.5x4.5x1.2cm • Total length: 25. 4cm • USB Type-C connector dimensions: 3.4x1.3x0.7cm • Product weight: 60g • Packaging weight: 42g • LDPE bag weight: 3g • Total weight: 105g • Meets ROHS, FCC and CE EMI requirements
