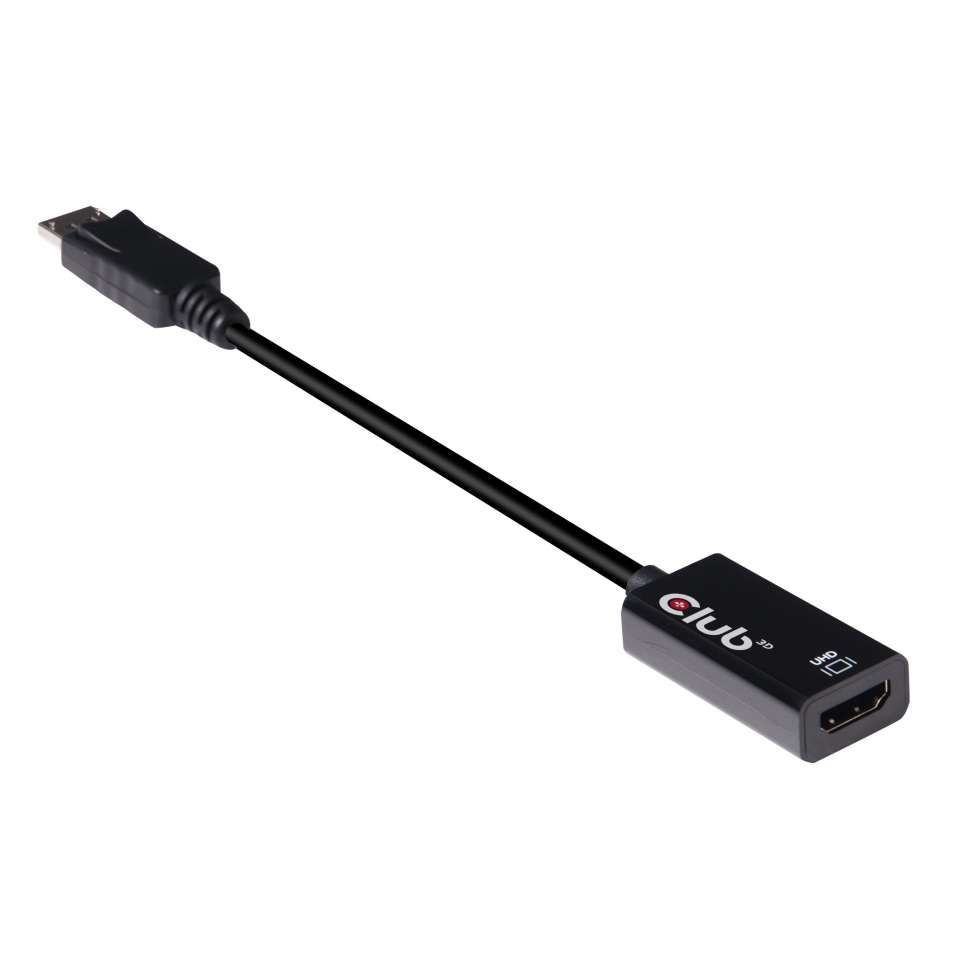

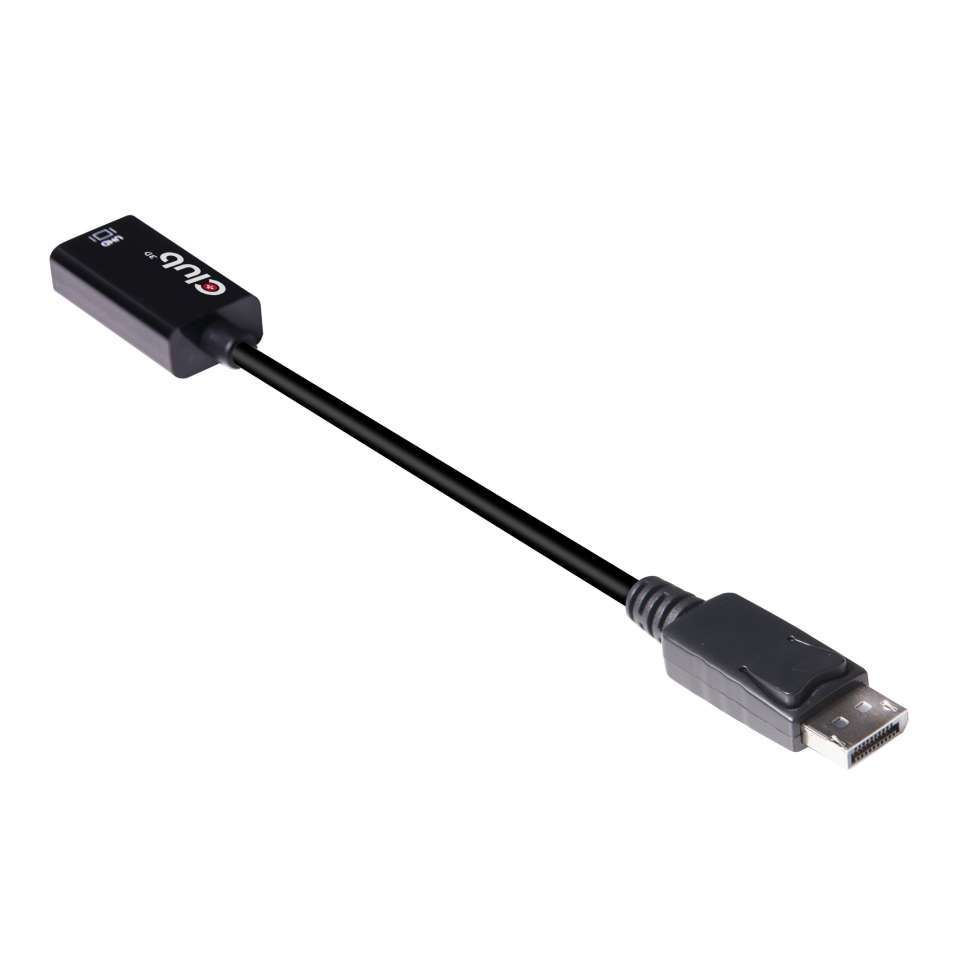

Adapter DisplayPort 1.4 => HDMI 2.0a *Club 3D* HDR 4K60Hz active

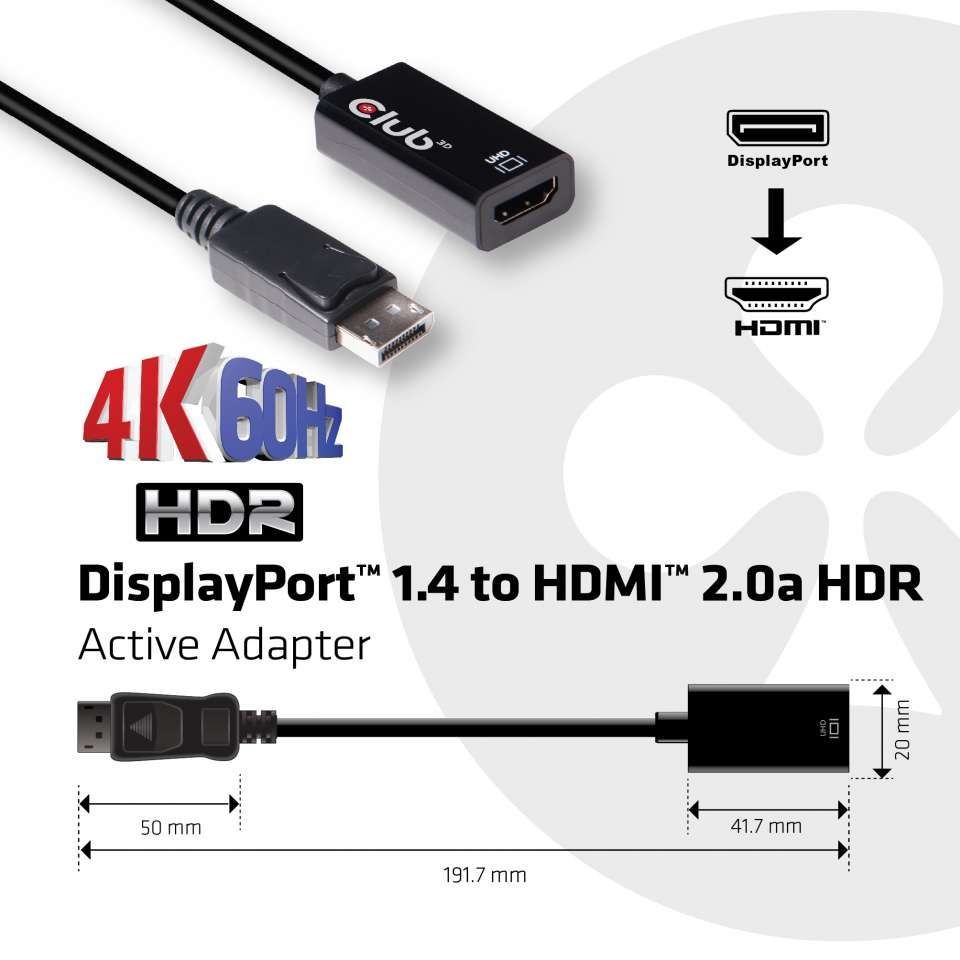

• Input: DisplayPort 1.4 male • Output: HDMI 2.0b female • DisplayPort 1.4 receiver, up to 5.4Gbps link rate, HBR2/HBR/RBR • Video stream treatment: • Up to 600MHz dual pixel path and 16bpc • RGB/YCbCr 4 :4:4/4:2:2/4:2:0 pixel format • Horizontal expansion if Vesa CVT according to CEA timings (according to DP 1 .4 specification) • DisplayPort to HDMI Stereoscopic 3D Transport: • Frame Sequential to Stacked Top-Bottom Conversion • Iterating through 3D formats • Handling audio streams: • LPCM and compressed audio encoding formats • Maximum audio sampling rate of 192Khz x 8 channel or 768KHz x 2 channel • HDCP support: • HDCP 1.3 to HDCP 1.4 repeater function • HDCP 2.2 to HDCP 1.4 and 2.2 repeater function • HDMI transmitter: • Compliant with HDMI specifications version 2.0b • 600MHz max TMDS character clock • High daynamic range supports both static and dynamic HDR • CEC support - snooping , tunneling • Max. video resolution and color depth at HDMI 2.0b output: • 4K 60Hz RGB/YCbCr 4:4:4, 8bpc • 4K 60Hz YCbCr 4:2:2, up to 12bpc • 4K 60Hz YCbCr 4:2:0 , up to 16bpc • 4K 30Hz RGB/YCbCr 4:4:4, up to 16bpc • Box size: 182x60x35mm • Adapter: 191.7x20x11mm • Weight: 32g • Meets ROHS, FCC and CE EMI requirements
