Clicktronic 70403 Antenna cable - coaxial cable with a shielding rating> 95 dB
|
-39% 11,61 EUR 18,99 EUR |
|
|
( 13,82 EUR incl. VAT ) ≈ £9.69 | ≈ $13.01 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| End-Of-Life: | 08. May 2026 |
|---|---|
| Lieske Part No.: | 789071 |
| Mfg Part No: | 70403 |
| UPC/EAN: | 4040849704031 |
| Weight: | 0.317 kg |
| Type: | CLICK C Koax-St./Koax-Ku. (Antenne) 0500 |

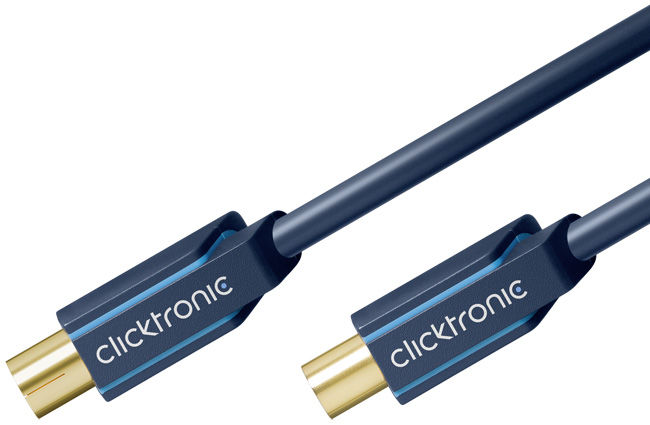

Product information for Clicktronic 70403:
pure copper conductor and 2-way shielding for clear signal quality
especially suitable for digital terrestrial or cable TV
24-carat gold-plated contacts for minimum transmission resistance
Plug material: 3-coated PVC / ABS
Port 1, type: COAX plug
port 2, type: COAX coupling
type: round cable
length (m): 5
Capacity AWG: 22
number of shieldings: 2 x
type of 1st shielding: Aluminium foil
type of 2nd shielding Cu braid 96 wires x 0,12mm
diameter outer sheath (mm): 6
ferrite core: on both sides
Shielding (dB): 95
Characteristic impedance (Ohm): 75
inner conductor diameter (mm): 0.65 mm
| Technical data | |
| Connection, housing material | ABS, PVC |
| Connection 2, type | Coaxial socket |
| Conductor, material | CU (Copper) |
| Cable jacket, material | PVC |
| Type 1, shielding | Braided (copper) 96x |
| Type 2, shielding | foil (Alu) |
| Connection, type | Coaxial connector |
| Connection, contact material | Gold (24 kt) |
| Cable type | Tubular cable |
| Consumption unit | 1 piece per carton |
| Packaging type | Retail box |
| Cable sheath diameter (approx.) | 6 mm |
| Connection, shielding | |
| Signal amplification | |
| Ferrite core | |
Questions & answers
What is the delivery time of Clicktronic 70403 Antenna cable - coaxial cable with a shielding rating> 95 dB?
The article Clicktronic 70403 Antenna cable - coaxial cable with a shielding rating> 95 dB is currently in stock
According to our experience the article is ready for dispatch within 4 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Clicktronic 70403 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Clicktronic 70403 Antenna cable - coaxial cable with a shielding rating> 95 dB always at the best possible price. We can give you a discount of 2% on Clicktronic 70403 Antenna cable - coaxial cable with a shielding rating> 95 dB if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
