Cimco Logo

Cimco 180028 crimp ring mold , 0,5-1qmm 6mm red

Your rating:
Average rating
Rating for Cimco 180028 crimp ring mold , 0,5-1qmm 6mm red
( 4.5 / 5 ) 14 ratings
Cimco 180028
This image may differ from the desired article.
29,60 EUR 30,80 EUR
( 35,22 EUR incl. VAT )
2025-09-13Delivery time on requestinfo_outline
Sales unit: 100 pieces
1x Cimco 180028 crimp ring mold , 0,5-1qmm 6mm red
Lieske Part No.:368647
Mfg Part No: 180028
UPC/EAN: 4021103800287
Weight:0.1 kg
Graduated prices net
From piecesPrice per pieces
1528,71 EUR
3027,82 EUR
7026,94 EUR
10026,05 EUR

Product information for Cimco 180028:

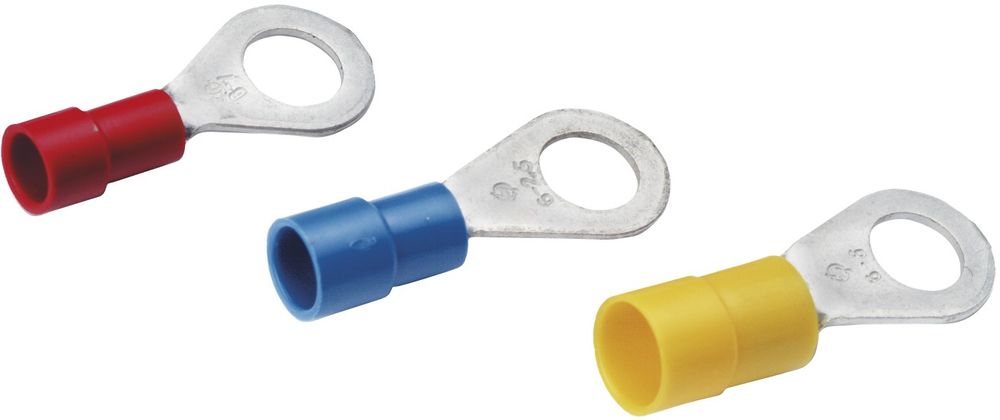

Insulated crimp cable lugs, ring shape Cu, insulated, DIN 46237 from 0.5 - 6 mm². Technical data - Material: Cu-ETP in accordance with DIN EN 13600 - Surface: tin-plated - For strain-relieved connections - Insulation PA (polyamide, nylon), halogen-free - Temperature resistance -60°C to +105°C - Easy Entry enables simple and quick insertion of the conductor, 600 V max. Design: Cross section: 0.5 - 1 mm², bolt with a Ø of 6 mm, insulation color: red, D1: 1.6, D2: 4.1, D3: 6.5, A1: 11.5, B 11, L 20, weight per 100 pieces: 0.11 kg, in accordance with DIN: -, UL listed: x, PU/piece: 100.

The item price shown refers to 100 pieces Cimco 180028

Questions & answers

What is the delivery time of Cimco 180028 crimp ring mold , 0,5-1qmm 6mm red?

The article Cimco 180028 crimp ring mold , 0,5-1qmm 6mm red is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Cimco 180028 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Cimco 180028 crimp ring mold , 0,5-1qmm 6mm red always at the best possible price. We can give you a discount of 2% on Cimco 180028 crimp ring mold , 0,5-1qmm 6mm red if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 15 pieces of Cimco 180028 crimp ring mold , 0,5-1qmm 6mm red we can offer you a price of 28,71 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.

How many units does the article contain?

Cimco 180028 crimp ring mold , 0,5-1qmm 6mm red is offered by us in a sales unit of 100 pieces If you need a larger quantity, you can contact us at any time. We will make a special offer for you
