Cimco 118017 mounting tool LSA-Plus Economy AWG24-20

Your rating:
Average rating
product review for Cimco 118017 mounting tool LSA-Plus Economy AWG24-20
( 4.5 / 5 ) 66 ratings

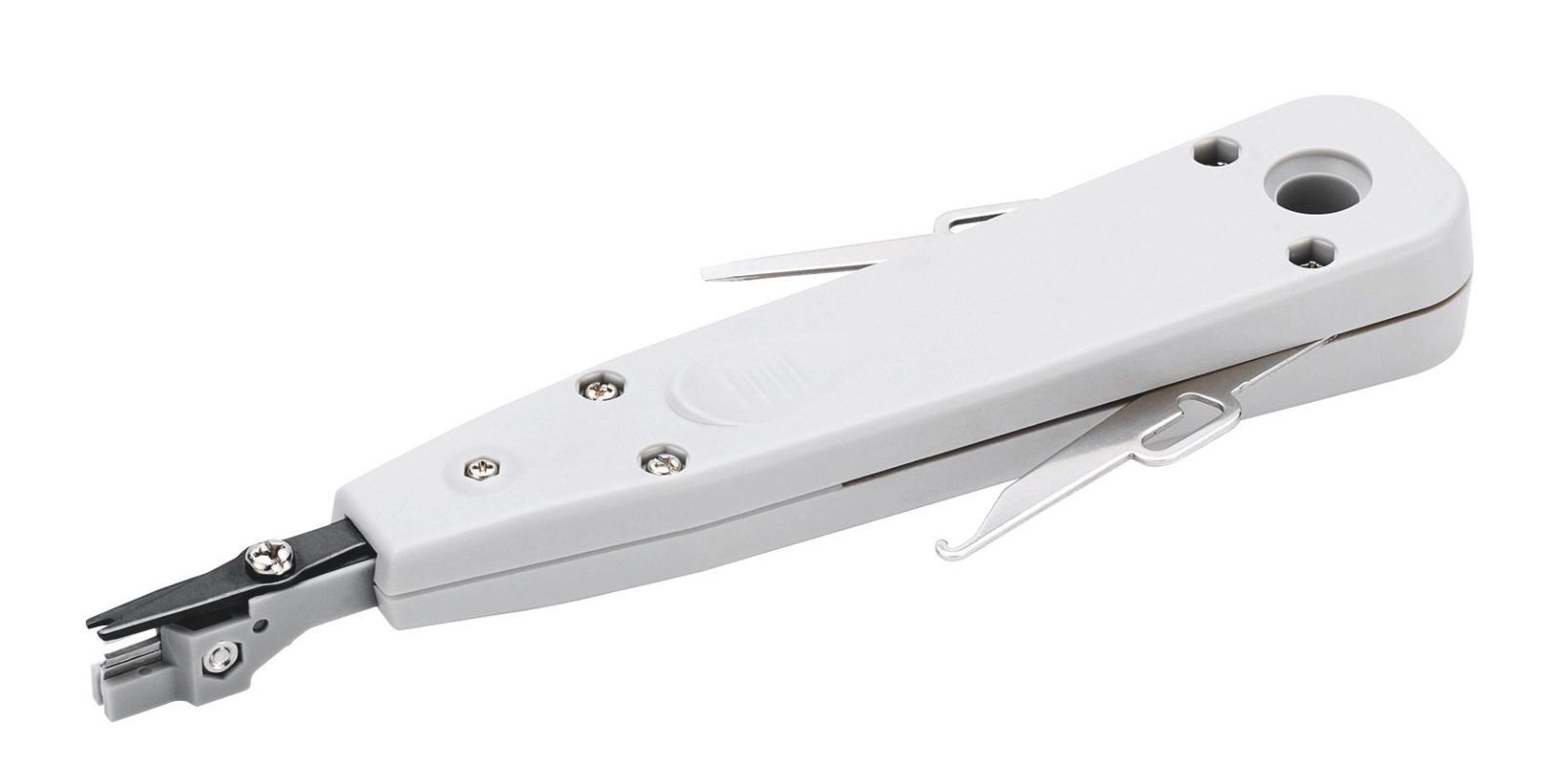

Cimco 118017
This image may differ from the desired article.
Cimco 118017Cimco 118017
38,20 EUR 38,65 EUR
( 45,46 EUR incl. VAT )
≈ £31.97  |  ≈ $41.98
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline
In Stock: >50 pieces
1x Cimco 118017 mounting tool LSA-Plus Economy AWG24-20
Datasheet:file_download Download
Lieske Part No.:877031
Mfg Part No: 118017
UPC/EAN: 4021103180174
Weight:0.1 kg
Type:118017
Graduated prices net
From piecesPrice per pieces
1037,91 EUR
2537,63 EUR
5037,34 EUR
7537,05 EUR

Product information for Cimco 118017:

The 118017 mounting tool from Cimco is a tool for mounting LSA-Plus terminals, specifically designed for use in connection boxes and patch panels. It enables solder-, screw- and stripping-free connection of conductors with a cross-section of 0.5 to 0.8 mm² (equivalent to AWG 24 to 20). The tool is designed for automatic cutting, ensuring that the conductor ends are precisely cut after crimping. The profile design with integrated pressure sensor guarantees optimal crimping force, ensuring a reliable and durable connection. The model is offered as an Economy version and features two extraction hooks to facilitate removal of the terminal from the tool.

Applications
This tool is used in the field of electrical and IT installation, particularly for mounting cut terminals in connection boxes and patch panels. It is suitable for processing copper conductors with a cross-section of 0.5 to 0.8 mm², covering the standard for data and communication lines in many network applications. The application is primarily in the installation of structured cabling systems, where fast and error-free connections are required.

Functions and Equipment in Detail
The tool features a profile design specifically designed for LSA-Plus terminals. The integrated pressure sensor ensures that the crimping force is optimally controlled during the connection process, guaranteeing a secure and uniform connection. The automatic cutting function precisely cuts the conductor after crimping, ensuring optimal connection reception in the terminal. The two extraction hooks facilitate removal of the terminal from the tool, increasing work speed and simplifying handling.

Technology Explained Simply
LSA-Plus terminals allow for quick and secure connection of conductors without additional tools such as soldering irons or screwdrivers. The 118017 mounting tool performs the mechanical crimping of the conductor into the terminal, with the pressure sensor monitoring the required force to ensure a reliable connection. The automatic cutting function ensures that the conductor is cut to the correct length after crimping, allowing it to fit optimally in the terminal. The profile design fits exactly to the geometry of the LSA-Plus terminal, enabling precise and secure mounting.

Compatibility and Accessories
The tool is specifically designed for LSA-Plus terminals and is compatible with these. Suitable accessories available in the range include the mounting tool 118018, which is also designed for LSA-Plus terminals but features an integrated pressure sensor.

Mounting and Installation
Mounting is performed by simply inserting the conductor into the terminal and then crimping it with the tool. The automatic cutting function ensures that the conductor is cut after crimping. The two extraction hooks facilitate removal of the terminal from the tool. Handling requires no special tools or aids, and mounting can be performed quickly and efficiently.

Advantages in Operation
The tool enables fast and reliable mounting of LSA-Plus terminals without additional tools. The integrated pressure sensor ensures optimal crimping force, improving connection quality. The automatic cutting function reduces working time and increases precision. The two extraction hooks simplify handling and increase efficiency during mounting. The Economy model offers a cost-effective solution for use in standard installations.

General
Applicationfor LSA-Plus terminals
Conductor cross section0,5-0,8 mm²
AWG size24-20
Functionsolder-, screw- and stripping-free connection
Cut-off functionAutomatic
Pull-out hook2
ModelEconomy
Pressure sensorYes


Product data sheet
Datasheet for Cimco 118017, EAN: 4021103180174

Questions & answers

What is the delivery time of Cimco 118017 mounting tool LSA-Plus Economy AWG24-20?

The article Cimco 118017 mounting tool LSA-Plus Economy AWG24-20 is currently in stock

According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Cimco 118017 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Cimco 118017 mounting tool LSA-Plus Economy AWG24-20 always at the best possible price. We can give you a discount of 2% on Cimco 118017 mounting tool LSA-Plus Economy AWG24-20 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 10 pieces of Cimco 118017 mounting tool LSA-Plus Economy AWG24-20 we can offer you a price of 37,91 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
