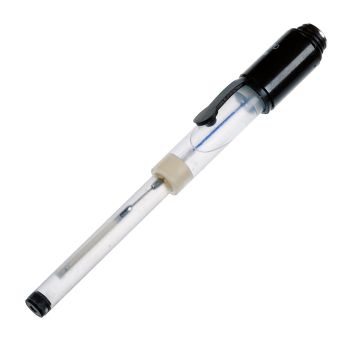

Chauvin Arnoux XR43-S7 XR43 argentometry reference electrode S7 plug content_copy

The XR43-S7 is a reference electrode from the manufacturer Chauvin Arnoux, specifically designed for redox potential measurements. It serves as a reference electrode in conjunction with separate measuring electrodes and provides a constant reference potential, which is required for the accurate determination of redox potential. The electrode is based on the mercury sulfate system (Hg/Hg₂SO₄) and is housed in a PVC housing that protects it mechanically. The connection to the measuring device is made via an S7 plug, ensuring a secure and screwable connection.

Applications
The XR43-S7 is particularly used in applications where the use of a calomel electrode is not possible, for example, in argentometric dosing. In such cases, Ag⁺ ions can react with chloride ions to form a silver chloride precipitate (AgCl), which would impair the functionality of a calomel electrode. The mercury sulfate reference electrode is therefore a suitable alternative to ensure stable measurement of redox potential. It is used in combination with measuring electrodes such as BAG1 or XAG1 to achieve accurate measurement results.

Functions and Equipment in Detail
The electrode consists of a glass tube containing a drop of mercury and a drop of mercury sulfate (Hg₂SO₄) placed on a platinum wire. The reference electrolyte is a saturated potassium sulfate solution (K₂SO₄), contained inside the electrode. The porous ceramic diaphragm allows exchange of the electrolyte with the measuring solution, while preventing uncontrolled leakage. This construction ensures a stable and reproducible potential reference during measurement.

Technology Explained Simply
The function of the reference electrode is to provide a constant potential that remains independent of changes in the measuring solution. While the measuring electrode responds to redox conditions in the solution, the XR43-S7 serves as a reference point. The difference between the potential of the measuring electrode and that of the reference electrode is measured in millivolts (mV) and enables the determination of redox potential. The ceramic connection ensures controlled diffusion of the electrolyte, allowing a uniform and slow reaction with the measuring solution without loss of electrolyte.

Compatibility and Accessories
The XR43-S7 is intended for use with measuring electrodes of type BAG1 or XAG1. The connection is made via an S7 plug, ensuring a secure mechanical connection. As an accessory, a Pepsin/HCl solution (125 ml) is offered, which can be used for maintenance or calibration of the electrodes.

Mounting and Installation
The electrode is immersed directly into the measuring solution, with the S7 plug connected to the measuring device. The ceramic connection must be fully immersed in the solution to ensure proper diffusion of the electrolyte. Mounting requires no additional tools, as the S7 plug is screwed directly in place. The operating temperature ranges from 0 to 80 °C, and the electrode is suitable for use in laboratory and field conditions.

Advantages in Operation
The XR43-S7 provides a stable and reproducible reference for redox measurements, particularly in applications where the use of a calomel electrode is not possible. The ceramic connection ensures controlled diffusion, extending the electrode's service life. The PVC housing mechanically protects the sensitive internal components, and the S7 plug ensures a secure and reliable electrical connection. The electrode is suitable for use in various industries, particularly in the chemical and pharmaceutical industries, where precise redox measurements are required.
