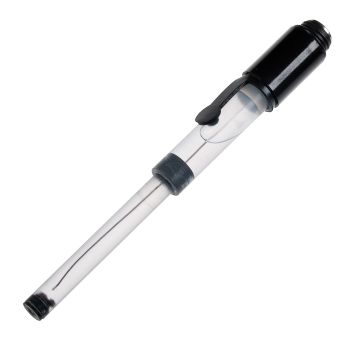

Chauvin Arnoux XR41-S7 XR41 pH and redox reference electrode with S7 connector content_copy

The XR41-S7 is a pH and redox reference electrode from manufacturer Chauvin Arnoux, specifically designed for use with separate measuring electrodes in pH value measurements. It serves as a reference electrode, maintaining a constant and stable potential during measurement to ensure precise and reproducible results. The electrode features a PVC body that protects the internal silver wire and enables a robust construction. The reference electrolyte consists of a KCl solution with a concentration of 1 mol/l, in contact with an Ag/AgCl system. Connection to the measuring device is made via an S7 plug, providing a secure and standardized connection option.

Applications
The XR41-S7 is suitable for pH and redox measurements in laboratory and industrial applications where a stable reference voltage is required. It is used in combination with measuring electrodes such as BV41A/H or XV41 to accurately determine the pH value of liquids. The electrode is particularly advantageous in applications where minimal crystallization of the electrolyte and extended service life due to reduced contamination of the diaphragm are important. The use of 1 mol/l KCl minimizes the risk of crystallization on the membrane when liquid evaporates and reduces the risk of contamination of the porous ceramic diaphragm.

Functions and Equipment in Detail
The reference electrode consists of a PVC body enclosing the silver wire, partially coated with an AgCl film. This wire is immersed in a KCl solution with a concentration of 1 mol/l, creating a stable reference potential. The porous ceramic diaphragm allows controlled exchange of the electrolyte with the measuring environment while preventing uncontrolled leakage. The design ensures high stability and reliability of measurement values. The electrode is designed for use with devices supporting an S7 plug, ensuring universal compatibility with various measuring systems.

Technology Explained Simply
The function of the XR41-S7 is based on the principle of a reference electrode, which provides a constant potential relative to the measuring electrode. The Ag/AgCl system forms the electrochemical basis, with the silver wire coated with an AgCl film and immersed in a KCl solution (1 mol/l). This solution acts as the electrolyte, enabling potential formation. The ceramic diaphragm functions as a selective barrier, regulating electrolyte flow without allowing the entire electrode content to escape. The PVC housing provides mechanical and chemical protection, making the electrode more resistant to external influences.

Compatibility and Accessories
The XR41-S7 is intended for use with measuring electrodes such as BV41A/H or XV41 to form a complete pH measurement setup. Available accessories include solutions such as a KCl solution at 1 mol/l in 30 mL and a pepsin/HCl solution in 125 mL, which may be suitable for maintenance or calibration of the electrode. The electrode is equipped with an S7 plug, enabling compatible connection to corresponding measuring devices. Various ordering options for connections are available, tailored to specific device requirements.

Mounting and Installation
Mounting of the XR41-S7 is done by direct connection to the measuring device via the S7 plug. The electrode is immersed in the liquid to be measured, ensuring the ceramic diaphragm comes into contact with the sample. It is essential to ensure the electrode is fully covered by the measuring liquid to guarantee correct potential formation. The electrode is used in combination with a measuring electrode, with both components working together in the measurement setup.

Advantages in Operation
Using the XR41-S7 provides high stability of the reference potential, leading to precise and reproducible measurement results. The 1 mol/l KCl concentration reduces crystallization on the membrane and extends the electrode's service life. The ceramic diaphragm minimizes contamination risk, extending maintenance intervals. The PVC housing increases mechanical robustness, and the S7 plug ensures universal connectivity. Thus, the electrode is suitable for continuous and reliable measurements in various application areas.
