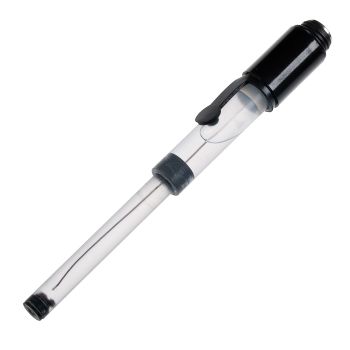

Chauvin Arnoux XR41-BA4 XR41 pH and redox reference electrode / 4 mm plug content_copy

The XR41-BA4 from Chauvin Arnoux is a reference electrode for pH and redox measurements, operating with a silver/silver chloride (Ag/AgCl) system. It serves as a reference electrode in combination with a measuring electrode to precisely determine the pH value in a solution. The electrode features a PVC body that protects the internal silver wire and ensures a stable, constant potential reference. Contact with the measuring solution is made via a porous ceramic diaphragm, which allows the reference electrolyte (KCl 1 mol/l) to exit in a controlled manner, preventing uncontrolled leakage. This ensures uniform and reproducible measurement conditions.

Applications
The XR41-BA4 is suitable for laboratory and industrial applications where precise pH or redox measurement is required. It is particularly used in combination with measuring electrodes such as the BV41A/H or XV41. The use of 1 mol/l KCl as the reference electrolyte reduces the risk of crystallization on the membrane when liquid evaporates and minimizes the contamination risk of the diaphragm, thereby extending the electrode's service life. The electrode is thus suitable for applications requiring high stability and reliability of measurement results.

Functions and Equipment in Detail
The reference electrode consists of a PVC body containing a silver wire partially coated with an AgCl film. This wire is immersed in a KCl solution with a concentration of 1 mol/l, serving as the reference electrolyte. The ceramic diaphragm enables controlled exchange between the internal solution and the measuring environment, maintaining a constant potential. The electrode is equipped with a 4 mm banana plug, enabling simple and secure connection to compatible measuring devices.

Technology Explained Simply
The function of the reference electrode is based on providing a constant electrical potential that serves as a reference for pH measurement. The Ag/AgCl system is particularly suitable for this, as it offers high stability and reproducibility. The PVC housing protects the internal structure from mechanical damage and chemical exposure. The ceramic diaphragm acts as a selective filter, regulating the outflow of the reference electrolyte without impairing measurement accuracy. The use of 1 mol/l KCl minimizes crystal formation on the membrane, increasing maintenance-free operation.

Compatibility and Accessories
The XR41-BA4 is intended for use with measuring electrodes such as the BV41A/H or XV41. As accessories, solutions such as KCl 1 mol/l (30 mL) and Pepsin/HCl (125 ml) are available, which can be used for maintenance and calibration of the electrode. These accessory items support the functionality and service life of the reference electrode by providing the necessary chemicals for proper operation.

Mounting and Installation
The electrode is connected to the measuring device via the 4 mm banana plug. Installation is done by simply inserting it into the corresponding socket on the device. The electrode should be stored in the KCl solution before first use and after prolonged storage to maintain the function of the diaphragm. Connection to the measuring solution is achieved by directly immersing the electrode in the liquid to be measured.

Operational Advantages
The XR41-BA4 offers high stability of the reference potential, leading to reproducible and reliable measurement results. The use of 1 mol/l KCl reduces the risk of crystallization and contamination of the diaphragm, extending the electrode's service life. The PVC housing ensures mechanical robustness, and the 4 mm banana plug ensures a secure and easy connection to compatible devices. The electrode is thus suitable for users who value precise and low-maintenance measurement solutions.
