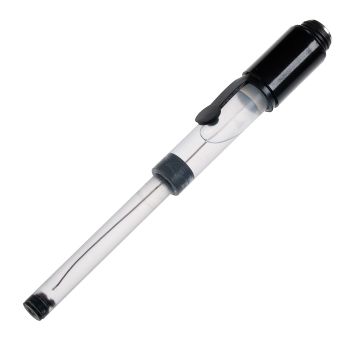

Chauvin Arnoux XR41-BA2 XR41 pH and redox reference electrode / 2 mm plug content_copy

The XR41-BA2 from Chauvin Arnoux is a pH and redox reference electrode with silver/silver chloride (Ag/AgCl) as the reference electrode material. It serves as a component of a pH measurement system, where a separate measuring electrode (e.g. BV41A/H or XV41) is combined with a reference electrode to precisely determine the pH value in a solution. The reference electrode ensures a constant and stable potential during measurement, which is crucial for the accuracy of the measurement. The body of the electrode is made of PVC, providing a robust and chemically resistant housing. Inside, there is a silver wire partially coated with an AgCl film, immersed in a potassium chloride solution (KCl 1 mol/l). This solution acts as the reference electrolyte and ensures the necessary electrical conductivity.

Applications
The XR41-BA2 is suitable for pH and redox measurements in laboratory and industrial applications, particularly when high stability of the reference potential is required. The use of 1 mol/l KCl as electrolyte reduces the risk of crystallization at the membrane when liquid evaporates, and minimizes the risk of contamination of the diaphragm, thereby extending the electrode's service life. The electrode is therefore especially suitable for applications requiring long-term, reliable measurement without frequent maintenance or replacement.

Functions and Equipment in Detail
The electrode features a porous ceramic diaphragm, which is permeable to the reference electrolyte while preventing uncontrolled leakage. This ensures controlled diffusion of the electrolyte and protects the measurement environment from contamination. Connection is made via a 2 mm banana plug, designed for connection to suitable measuring instruments or electrode amplifiers. The PVC housing protects the sensitive internal components and offers high protection against mechanical damage and chemical exposure.

Technology Explained Simply
The operation of the reference electrode is based on the principle of a galvanic cell, where the Ag/AgCl system establishes a defined potential relative to the electrolyte being measured. The KCl solution inside the electrode forms a bridge between the internal Ag/AgCl system and the solution being measured. The ceramic diaphragm ensures that the electrolyte diffuses slowly and controlled into the measurement solution, without the entire liquid running out. The stability of the potential is crucial for the accuracy of pH measurement, as deviations in the reference potential would directly lead to measurement errors.

Compatibility and Accessories
The XR41-BA2 is designed for use with measuring electrodes of type BV41A/H or XV41. As accessories, solutions such as KCl 1 mol/l (30 mL) and Pepsin/HCl (125 mL) are available, which can be used for maintenance or calibration of the electrode. These solutions support the maintenance of the electrode's functionality and accuracy over a longer period.

Installation and Mounting
The electrode is connected to the measuring device via the 2 mm banana plug. Installation requires no special tools or additional components. The electrode is ready for immediate use as soon as it is connected to the measuring electrode. No special mounting or installation is required, as the electrode is used as a standard component in pH measurement systems.

Operational Advantages
The use of 1 mol/l KCl as electrolyte offers the advantage of reduced crystallization tendency, lowering maintenance frequency. The ceramic membrane extends the electrode's service life by reducing diaphragm contamination. The PVC housing provides additional protection against mechanical and chemical stresses, increasing operational safety. The electrode is thus suitable for continuous and reliable measurements in various application areas.
