Chauvin Arnoux P01710055 Adapter DIN 8-pin to S7 and jack (conductivity) content_copy

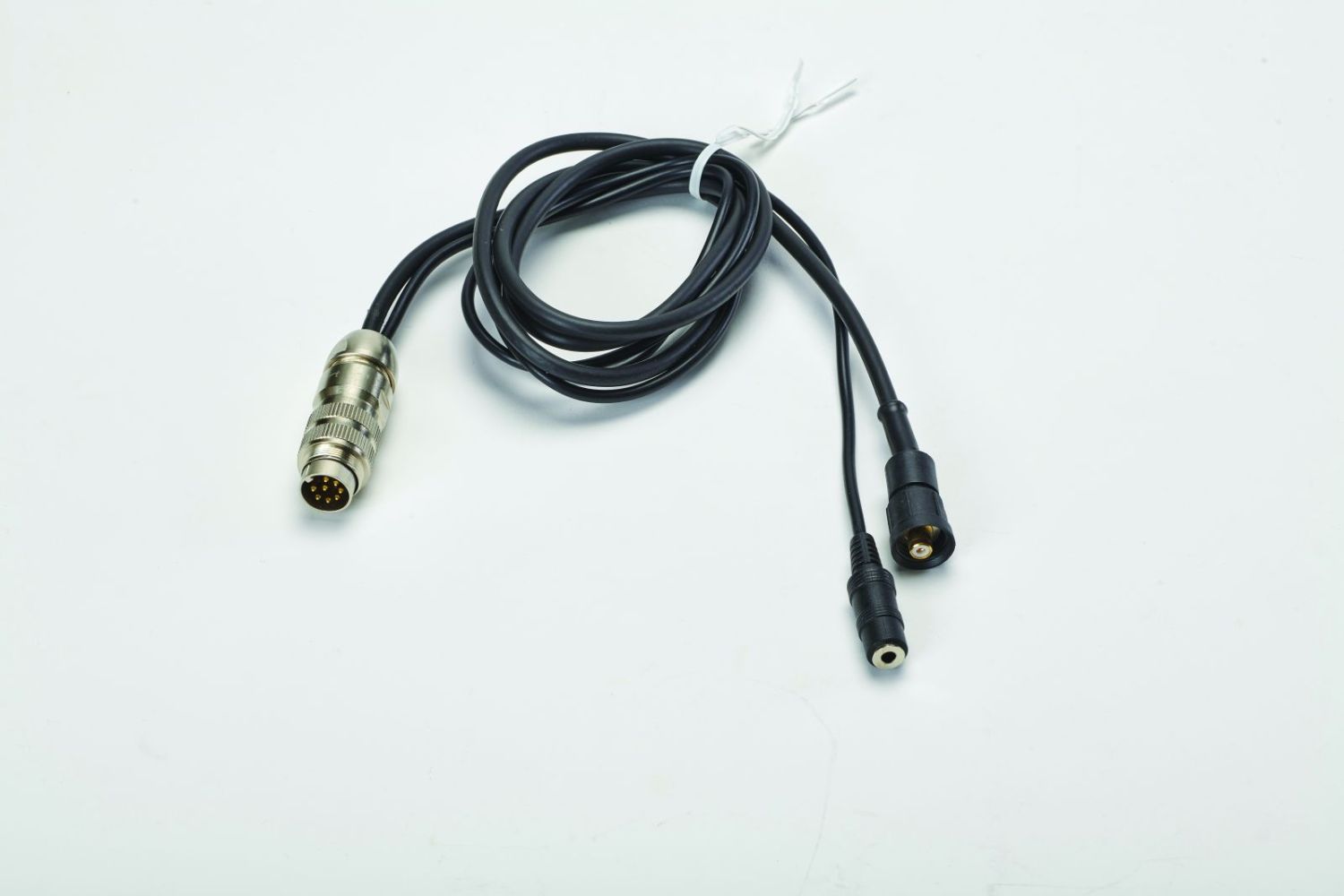

The S7 and jack adapter from Chauvin Arnoux is a specific accessory for the conductivity meter C.A 10141. It serves as an interface between the measuring device and external sensors, particularly conductivity probes and temperature sensors from the manufacturer's range. The connection is made via an 8-pin DIN connector on the device side, which switches to connections for S7 (for conductivity cells) and jack connectors (for temperature sensors). This configuration enables direct and reliable integration of the sensors into the measurement system.

Applications

The adapter is designed for applications where the C.A 10141 measuring device is combined with various sensors to measure the electrical conductivity of liquids and the temperature of the measurement environment. It is particularly suitable for use in laboratories as well as for mobile measurement tasks, where a stable and quick connection is required. The robust construction ensures long-term use under various conditions.

Functions and Equipment in Detail

The adapter features an 8-pin DIN connector, which connects to the conductivity meter C.A 10141. On the other side, it provides two separate connections: an S7 connector for connecting conductivity probes and a jack connector for temperature sensors. This design allows the sensors to be connected directly to the device without requiring additional adapters or conversion boxes. The connection is mechanically stable and prevents loose contacts, which could lead to measurement errors.

Technology Explained Simply

The adapter functions as a mechanical and electrical interface. The 8-pin DIN connector is a standard connection for many measuring devices and ensures a secure, multi-pin connection. The S7 and jack connectors are specific connection types commonly used in measurement technology for conductivity cells and temperature sensors. The connection is made via direct electrical contacts, ensuring that sensor signals are transmitted to the measuring device without distortion and without additional amplification or conversion.

Compatibility and Accessories

The adapter is exclusively intended for the conductivity meter C.A 10141 from Chauvin Arnoux. It enables the use of conductivity probes and temperature sensors also offered by the manufacturer Chauvin Arnoux. Compatibility is limited to this specific device and its sensors; use with other measuring devices or sensors is not intended.

Installation and Mounting

Installation is performed by simply plugging the 8-pin DIN connector into the corresponding socket on the C.A 10141 measuring device. Subsequently, the conductivity probe is connected to the S7 connector and the temperature sensor to the jack connector. No additional tools or settings are required. The connection is immediately ready for use.

Operational Advantages

Using the adapter increases measurement accuracy, as it ensures a direct and stable connection between the device and the sensors. The robust construction ensures a long service life and minimizes the risk of contact problems. The adapter enables the combination of conductivity and temperature measurement on a single device, increasing efficiency for measurement tasks. Using original accessories from Chauvin Arnoux ensures optimal performance and compatibility.

The delivery includes 1 x S7 & jack adapter.
