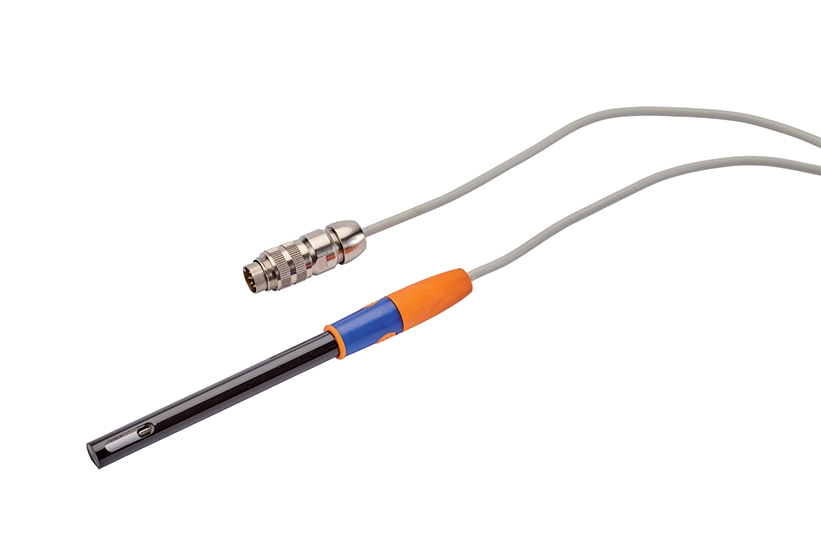

Chauvin Arnoux P01710053 XCP4ST1 conductivity measuring cell with integrated temperature sensor content_copy

The 4-pole conductivity probe from Chauvin Arnoux is a replacement part for the conductivity meter C.A 10141 and is designed for precise, temperature-compensated measurement of conductivity in liquids. The probe is specifically designed for applications requiring high measurement accuracy and stability under varying temperature conditions. With its integrated PT1000 temperature sensor, it enables exact temperature measurement, which is directly incorporated into the conductivity calculation to minimize measurement errors caused by temperature fluctuations.

Applications

The probe is suitable for use in water treatment, process control systems, and laboratory analyses. In these areas, reliable and reproducible determination of conductivity is essential to monitor fluid quality or optimize processes. The robust construction also makes the probe suitable for field use, where mechanical stresses and environmental conditions can vary.

Functions and Equipment in Detail

The probe features 4-pole technology, which separates current and voltage measurement. This minimizes the influence of electrode resistance on the measurement, resulting in more precise and stable results. The integrated PT1000 temperature sensor measures the temperature of the liquid and transmits this data directly to the measuring device, enabling automatic temperature compensation. This is particularly important because the conductivity of liquids is highly temperature-dependent.

Technology Explained Simply

The 4-pole technology operates with two separate current electrodes and two voltage electrodes. Current is supplied through the current electrodes, while voltage is measured at the voltage electrodes. This allows the resistance of the liquid to be determined independently of the electrode resistance. The PT1000 sensor is a platinum-based resistance thermometer that offers high accuracy in temperature measurement and is standardized for industrial applications.

Compatibility and Accessories

The probe is exclusively intended for use with the conductivity meter C.A 10141. Designed as a replacement part, it ensures direct interchangeability in case of wear or damage to the original component.

Installation and Mounting

Mounting is performed directly onto the C.A 10141 measuring device. The probe is inserted into the device, and the electrical connection is established automatically. No additional tools or mounting aids are required. The connection is mechanically stable to ensure reliable measurement.

Operational Advantages

The combination of 4-pole technology and integrated PT1000 sensor ensures high measurement accuracy and reproducibility. Temperature compensation enables precise conductivity determination, even when the liquid temperature varies. The robust design ensures long service life and reliability under industrial conditions. Thus, the probe is a reliable component for continuous measurements in critical applications.

Scope of Delivery

The scope of delivery includes 1 x 4-pole conductivity probe with integrated PT1000 temperature sensor. The probe is designed as a replacement part and is delivered without additional instructions or accessories.
