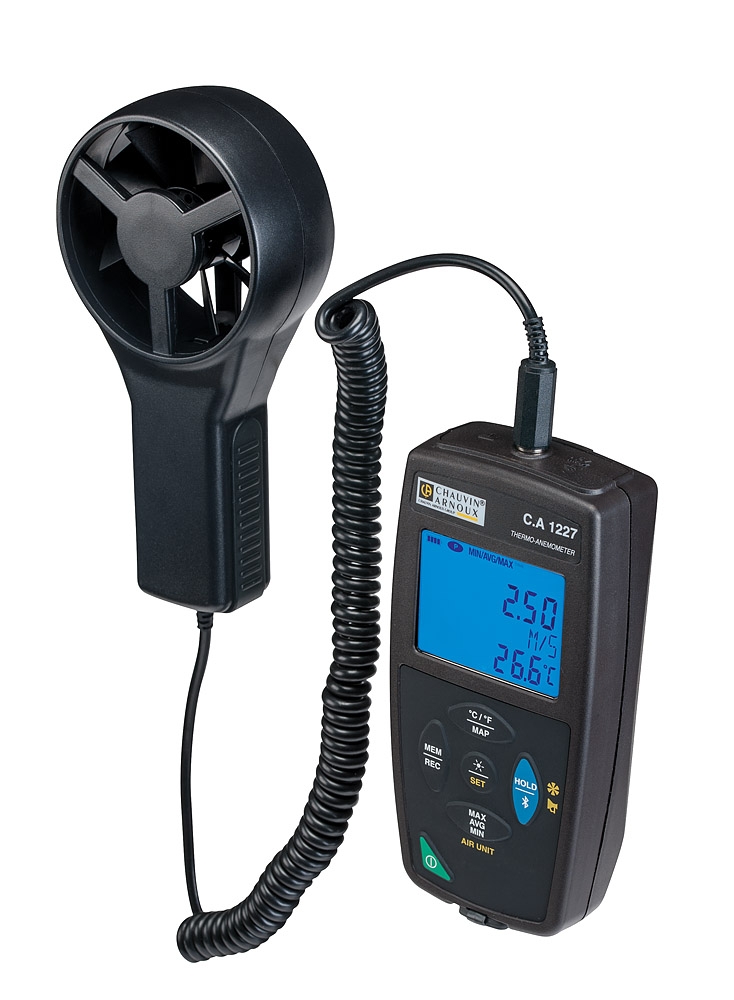

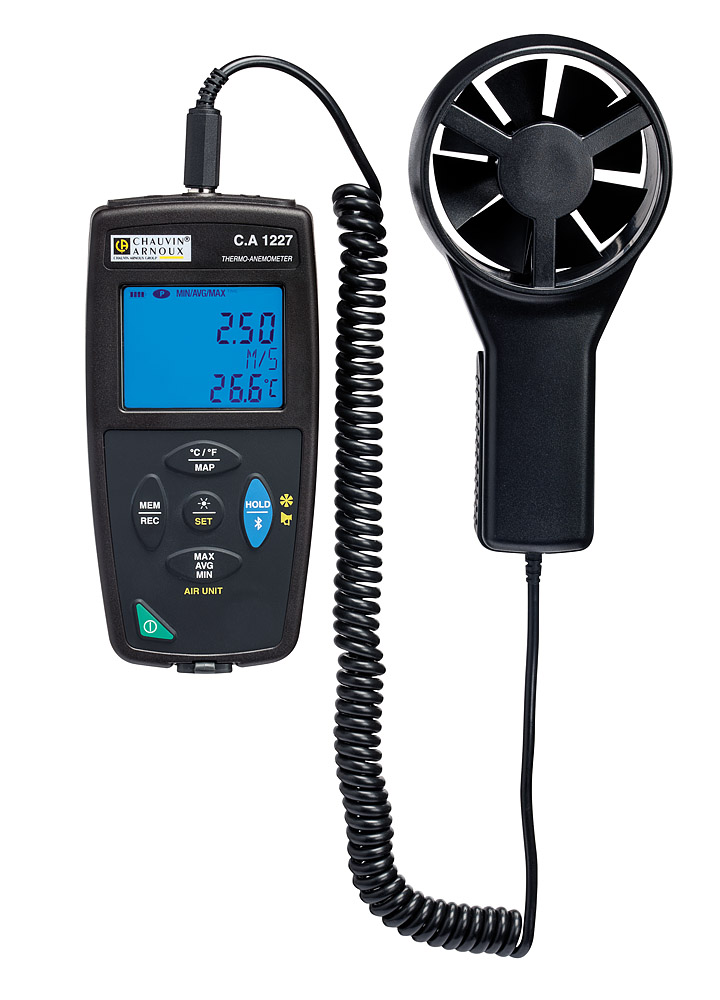

Chauvin Arnoux CA 1227 Thermo-Anemometer
|
488,04 EUR |
|||||||||||
|
( 580,77 EUR incl. VAT ) ≈ £407.03 | ≈ $545.14 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1927913 | ||||||||||
| Mfg Part No: | P01654227 | ||||||||||
| UPC/EAN: | 3663653000987 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Measurement from Chauvin ArnouxFurther products in category Measurement
All products of Chauvin Arnoux
Product information for Chauvin Arnoux P01654227:
Highlights:
– Compact device for measuring air velocity and airflow
– Separate vane anemometer sensor for convenient operation
– Suitable for stationary and mobile use
– Housing with integrated magnetic mount, compatible with Multifix accessories
– Logging of up to 1 million readings with extended battery life
– USB and Bluetooth connectivity, PC software, and Android app for analysis and configuration
– Convenient MIN/MAX/HOLD functions
Description:
The C.A 1227 is a versatile and user-friendly device for precise measurement of air velocity and airflow. Its separate vane sensor enables flexible operation, making it ideal for both stationary and mobile applications. The large backlit display ensures clear readability, while functions like Min, Max, Average, Hold, and MAP curve display enhance data analysis.
The free Data Logger Transfer software allows users to evaluate stored and live data, configure the device, and generate reports. Optional air cones are available for direct airflow volume measurements.
Technical Details:
– Air Velocity Range: 0.50 m/s to 27.0 m/sAccuracy: ± 3 % of reading ± 0.1 m/s
– Airflow Measurement (with accessory air cones):
– Square: 346 x 346 mm
– Circular: Ø 210 mm
– Air Temperature Range: -20.0 °C to +50.0 °C
Accuracy: 0 °C to 50 °C: ± 0.8 °C / -20 °C to 0 °C: ± 1.6 °C
– Functions: Min, Max, Average, MAP, Hold, backlit display
– Air Velocity Units: m/s, km/h, fpm, mph
– Airflow Units: m³/s, m³/h, l/s, cfm
– Storage Capacity: up to 1 million readings
– Interfaces: USB, Bluetooth
– Propeller Diameter: Ø 8 mm
– Dimensions:
– Housing: 150 x 72 x 32 mm
– Sensor: 160 x 80 x 38 mm
– Weight: 400 g (including batteries)
– Compatible with Multifix accessories
– Optional protective rubber housing available
Questions & answers
What is the delivery time of Chauvin Arnoux CA 1227 Thermo-Anemometer?
The article Chauvin Arnoux CA 1227 Thermo-Anemometer is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Chauvin Arnoux P01654227 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Chauvin Arnoux CA 1227 Thermo-Anemometer always at the best possible price. We can give you a discount of 2% on Chauvin Arnoux CA 1227 Thermo-Anemometer if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Chauvin Arnoux CA 1227 Thermo-Anemometer we can offer you a price of 484,38 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
