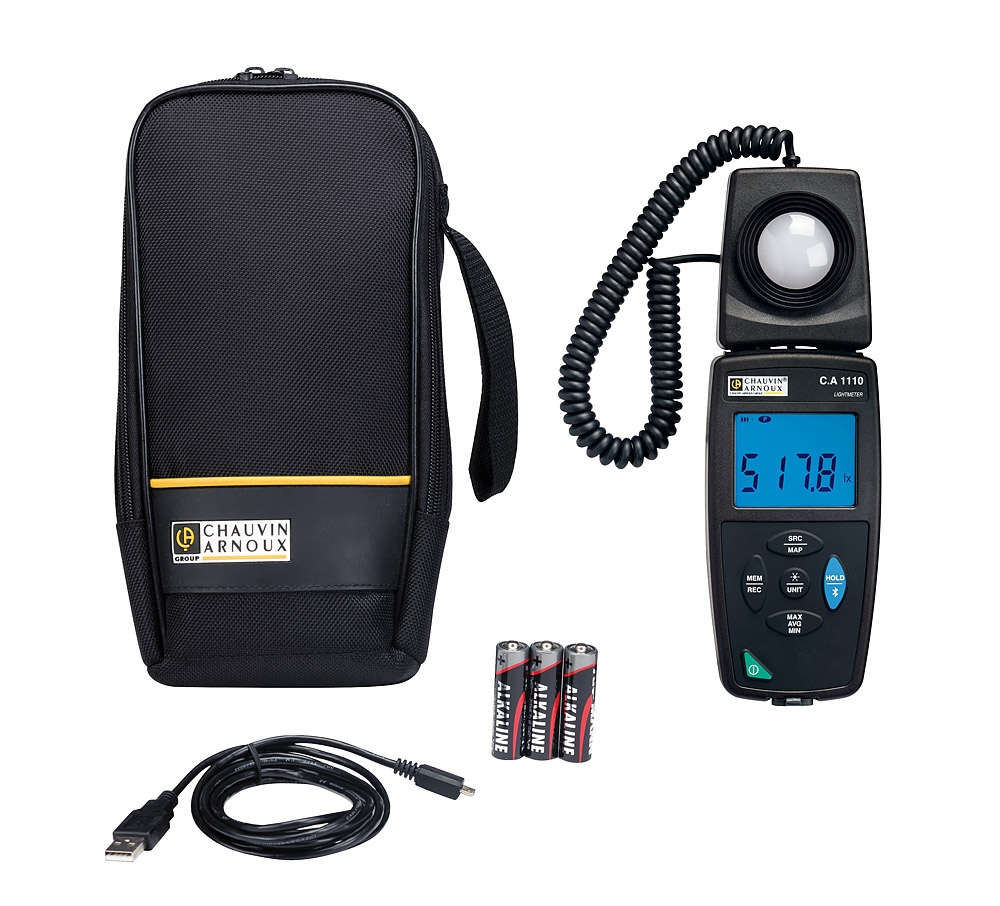

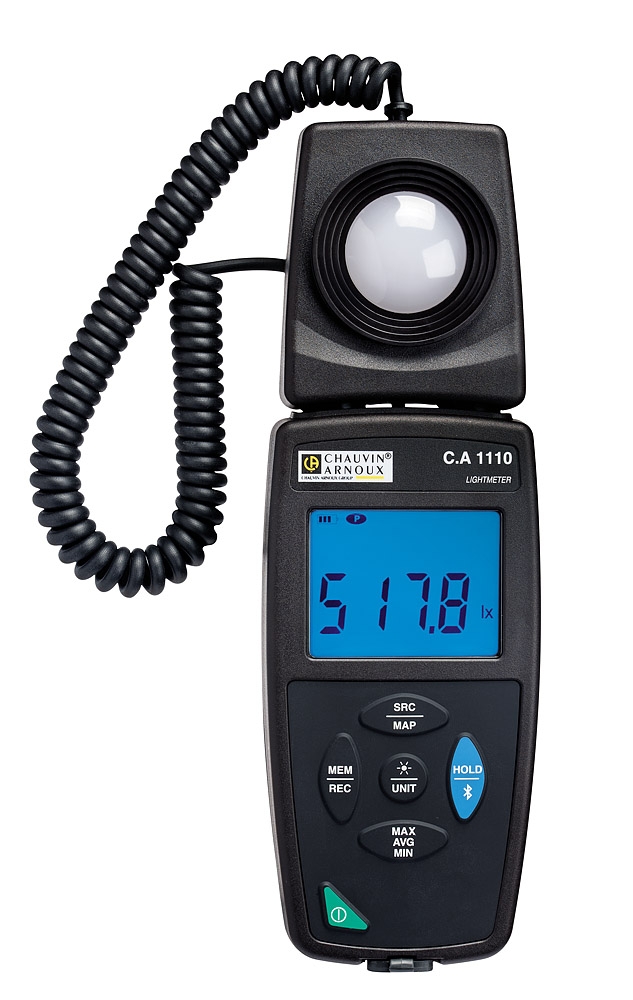

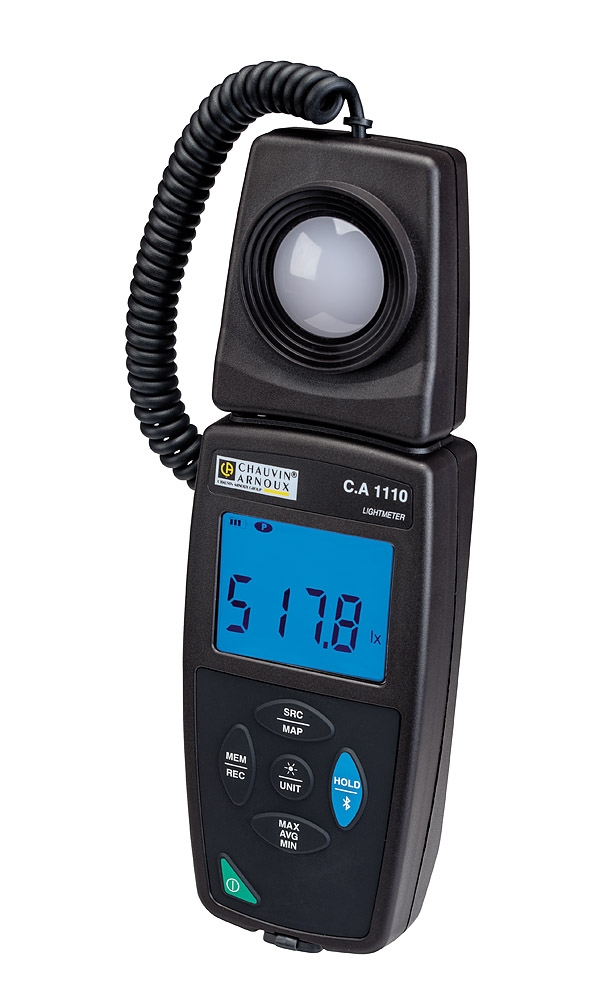

Chauvin Arnoux P01654110 CA 1110 Luxmeter content_copy

Highlights:

– Compact device for measuring illuminance levels

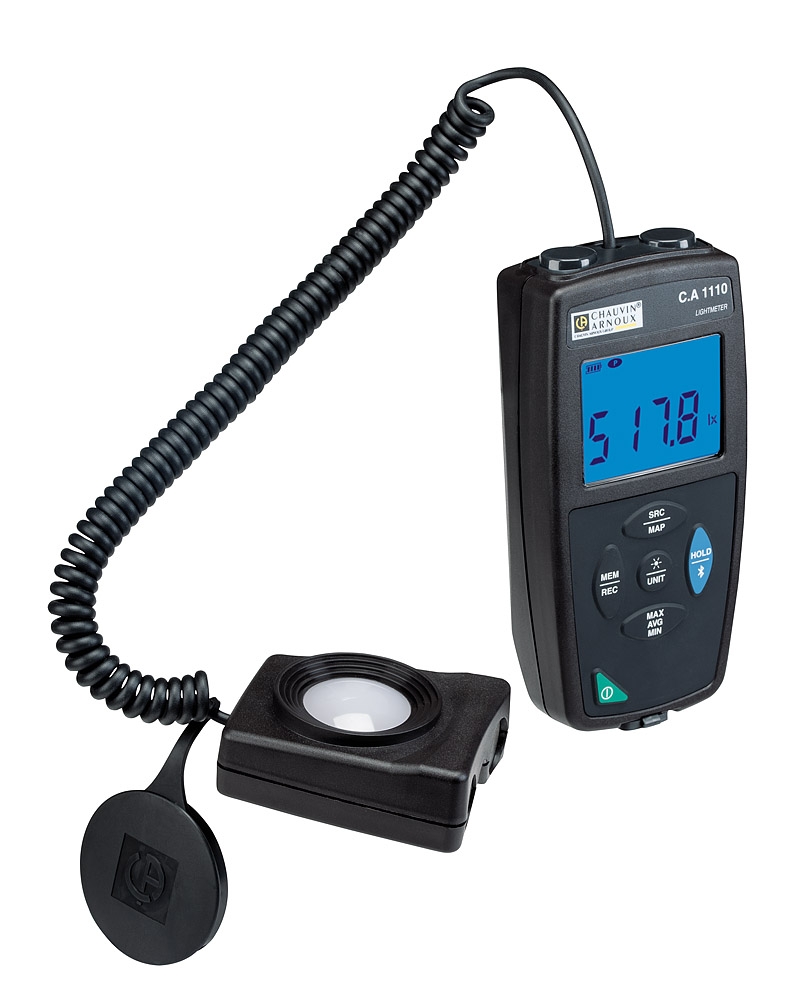

– Separate light sensor to prevent shadowing by the operator, or attachable to the device for one-handed measurements
– Compensation for spectral errors in LED or fluorescent light sources
– MAP function for mapping illuminance across surfaces
– IEC spectral correction and angle-of-incidence correction
– Single-value storage or continuous logging of up to 1 million readings
– USB and Bluetooth connectivity with PC software and Android app for analysis and configuration

Description:

The CA 1110 lux meter is a precise and versatile instrument for measuring illuminance levels from light sources such as incandescent lamps, LEDs, and fluorescent lights up to 200,000 lux, meeting Class C standards under French norm NF C 42-710. The MAP function enables visualization and analysis of lighting distribution over surfaces or in rooms.

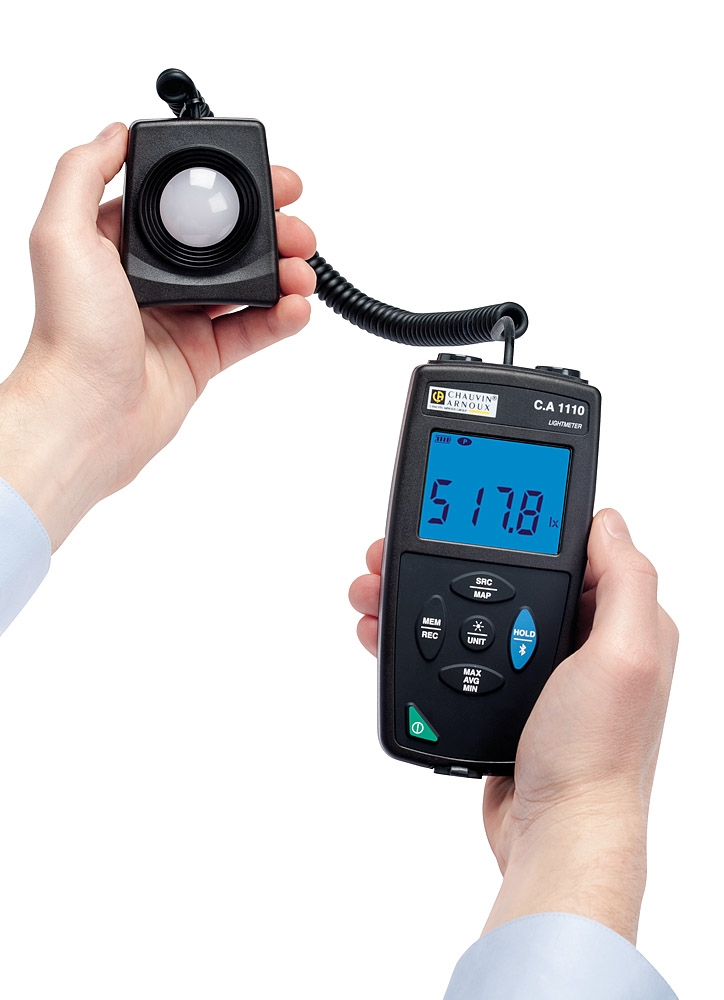

The detachable light sensor with magnetic mounting allows flexible use: for one-handed measurements directly on the device or with the sensor removed to prevent operator shadowing. It features comprehensive functions such as Min, Max, Average, Hold, and programmable or manual data storage.

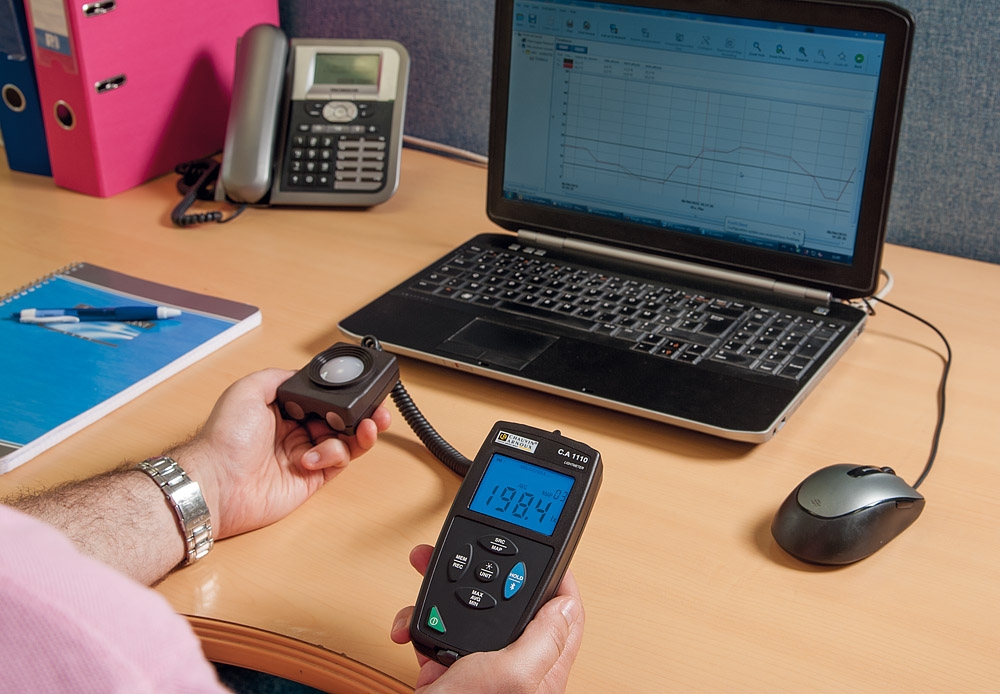

With the free Data Logger Transfer software, measurements can be analyzed, device settings configured, and reports automatically generated.

Technical Details:

– Measurement range: 0.1 lx to 200,000 lx (lux)
– Intrinsic error (without compensation):
– ± 3 % of reading for incandescent lamps (standard)
– ± 6 % of reading for LEDs (3000 K to 6000 K)
– ± 9 % of reading for fluorescent lights
– Functions: Min, Max, Average, MAP, Hold, lx or fc / backlit display
– Storage: up to 1 million readings
– Interfaces: USB, Bluetooth
– Protection rating: IP50
– Dimensions:
– Device: 150 x 72 x 32 mm
– Light sensor: 67 x 64 x 35 mm
– Weight: 345 g (with batteries)
– Compatible with Multifix accessories

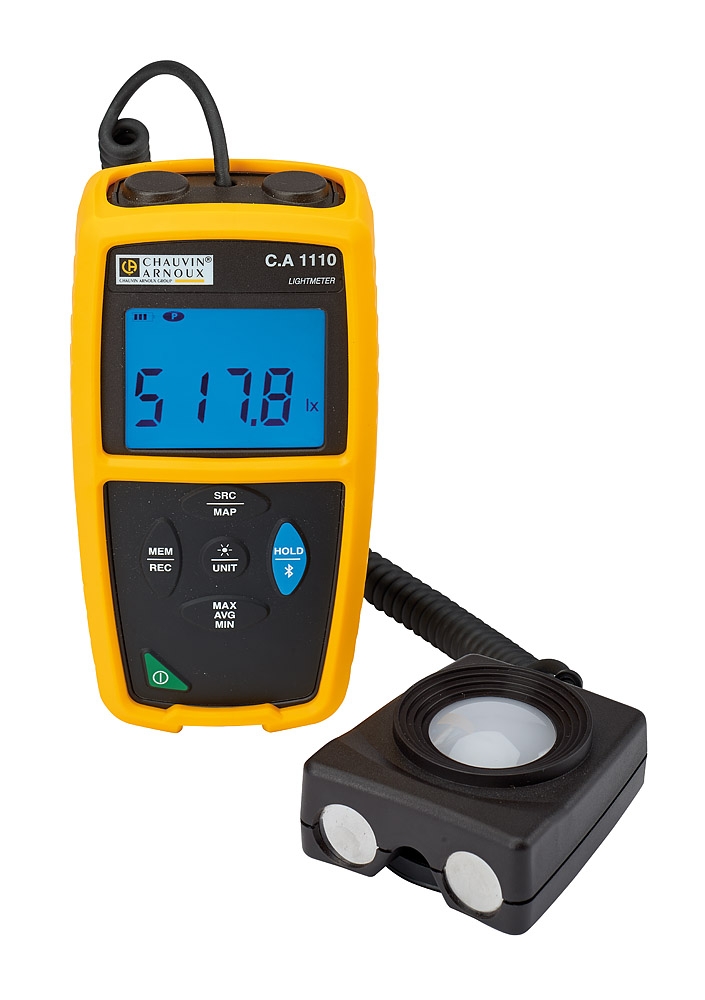

– Optional: protective rubber housing
