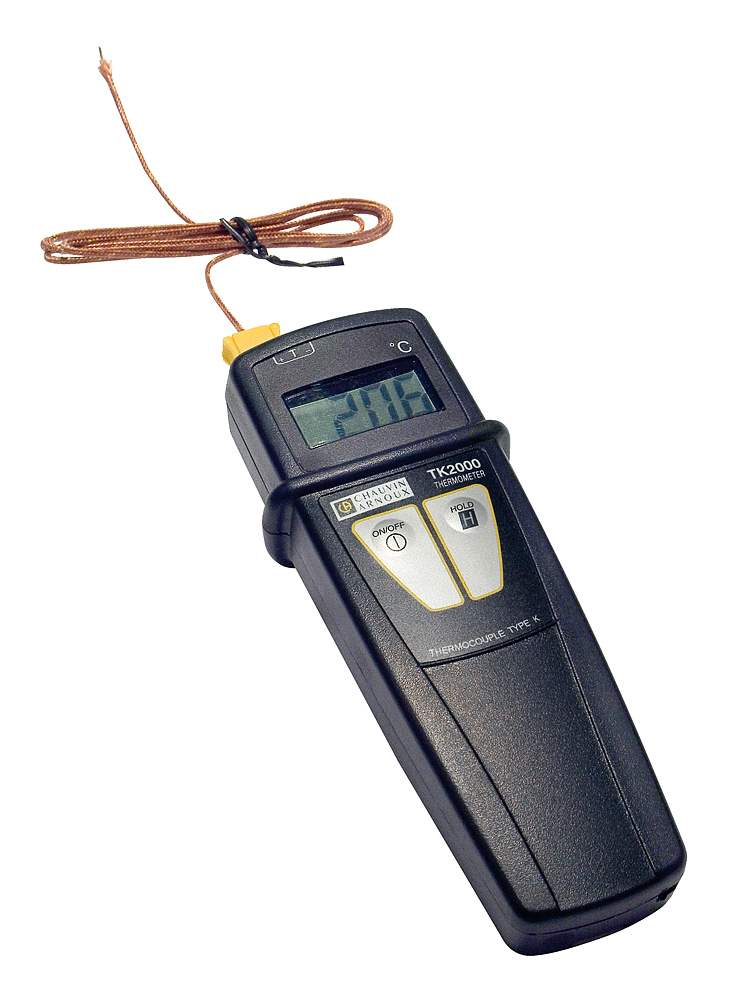

Chauvin Arnoux P01653100 TK 2000 1-channel thermometer for thermocouples content_copy

The Chauvin Arnoux TK2000 is a compact, digital thermometer with an input for K-type thermocouples, designed for precise temperature measurements in demanding environments. It is particularly suitable for industrial applications and outdoor use, where robust and reliable measuring instruments are required. The device features a protection rating of IP65, meaning it is dust-tight and protected against water jets, ensuring reliable operation even under harsh conditions. The measurement range covers temperatures from -50 °C to +1000 °C, with accuracy in the range of 0 °C to +1000 °C at ± 1.5 % + 0.5 °C. In the range of -50 °C to 0 °C, the accuracy is ± 1 °C. Resolution varies depending on the measurement range between 0.1 °C and 1 °C.

Applications
This thermometer is suitable for a wide range of applications in industry, machine building, manufacturing technology, or maintenance work where precise temperature readings are required. The IP65 protection rating makes it especially suitable for locations where dust, splashing water, or high humidity are present. It can be used, for example, to monitor motors, heating systems, pipelines, or electrical installations.

Functions and Equipment in Detail
The device features a HOLD function, allowing the current measurement value to be stored and displayed, even when the probe is no longer in contact with the measurement point. The display shows values exclusively in °C, which is sufficient for most industrial applications. The thermometer is equipped with a flexible temperature probe (K-type thermocouple) suitable for measurements in the range of -40 °C to +200 °C. The probe is included in the delivery scope, as are the instruction manual and batteries, which are already installed.

Technology Explained Simply
Measurement is performed via a K-type thermocouple, based on Seebeck effect technology. A small electrical voltage is generated when there is a temperature difference between the two ends of the thermocouple, which is then converted into a temperature value. The device processes these signals digitally and displays the value on a screen. The IP65 protection rating ensures the device can be operated even with temporary wetting or outdoors without risk of damage. The compact design with dimensions of 163 x 63 x 37.5 mm and a weight of 200 g allows for easy handling and portability.

Compatibility and Accessories
The thermometer is compatible with various measurement probes optimized for different applications. Suitable accessories include, for example, the SK20 Flexible Probe for the range -40 °C to +450 °C, the SK1 Needle Probe for -50 °C to +800 °C, or the SK2 Flexible Probe for -50 °C to +1000 °C. Additional options include surface probes such as SK4 or SK5, as well as special probes for pipes (SK8) or air measurements (SK17). Extension cables such as CK1 or CK2 (each 1 m, operating range -40 °C to +100 °C) allow flexible adjustment of the measurement length. The PP1 Handle serves as an ergonomic grip for improved handling.

Mounting and Installation
Installation is performed by simply connecting the measurement probe to the device’s input. The connection is made via a standardized plug system designed for K-type thermocouples. No additional tools or mounting work are required. The device can be held directly in hand or secured with a handle (e.g. PP1) to facilitate measurements in hard-to-reach areas.

Advantages in Operation
The combination of compact design, high accuracy, and IP65 protection rating makes the TK2000 a reliable tool for mobile and stationary temperature measurements. The pre-installed batteries and included probe allow for immediate operation. The HOLD function is particularly useful when the measurement value needs to be documented or observed over a longer period without having to hold the probe continuously at the measurement point. Compatibility with various probe types significantly expands the range of applications, allowing the device to be flexibly adapted to different requirements.

Eigenschaften
Number of inputs	1
Dimensions	163 x 63 x 37,5 mm
Weight	200 g

---
