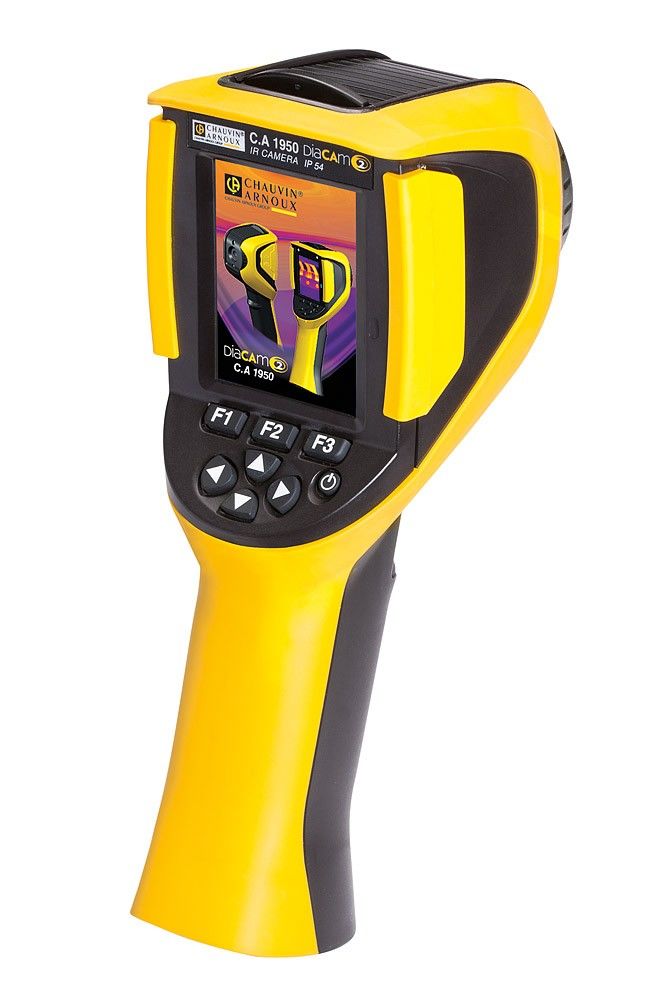

Chauvin Arnoux P01651901 CA 1950 DiaCAM2 thermal imaging camera

Highlights:

– Ideal for locating abnormal heating (hot spots) in electrical installations
– Focus-free: no adjustment of image sharpness required
– Lens with wide 20° x 20° field of view
– Programmable acoustic and visual alarms
– 13-hour battery life
– Voice annotations for stored images via Bluetooth headset
– Integration of data from other measuring devices: current, humidity, dew point, …
– Export thermal images using free software and SD card in .bmp format (e.g., to tablets)

Key Features of the CA 1950:

– Exceptional 13-hour battery life
– Ready to use in just 3 seconds
– Expandable table of emissivity values
– Ability to rename photos and thermal images based on location
– Save and recall camera configurations based on use case (e.g., buildings, switchboards)
– Record voice comments directly with the image
– Bluetooth connectivity to multimeters and current clamps for simultaneous access to measurement data

Description:

The CA 1950 thermal camera is designed for intuitive and easy operation, making it perfect for building technology, electrical, and mechanical maintenance applications.

Applications:

– Energy audits of buildings
– Identification of thermal bridges, heat leaks, or damp walls
– Electrical maintenance: detecting faulty contacts, uneven loads
– Mechanical maintenance: locating wear points, overheating, lubrication defects

User-Friendliness:

– Easy operation with one-handed access to all functions
– Stable placement on flat surfaces
– Large 2.8-inch display with automatic brightness adjustment
– Fixed-focus lens with 20° x 20° field of view for sharp images at any distance
– Contextual help to guide users and reduce errors
– Record voice comments directly with images
– Integrated, non-detachable lens cover

Software – CAmReport:
The software provides comprehensive tools for analyzing thermal images:
– Cursors with automatic temperature display at selected points
– Thermal profiles showing min, max, and average temperatures
– Analyze image areas using rectangles, circles, or polygons
– Automatically generated result tables and reports
– Export reports in Word or PDF format

Technical Specifications:

– Sensor Type: 80 x 80 microbolometer UFPA, 8 ~14 μm
– Spatial Resolution (IFOV): 4.4 mrad
– Temperature Range: -20 °C to +250 °C
– Display Mode: Thermal and photo image with parallax correction, overlay via PC software
– Measurement Aids: Manual cursor, auto detection, min/max display in adjustable area, temperature profile, isotherms
– Parameter Settings: Emissivity, ambient temperature, distance, relative humidity
– Storage: Micro-SD card (2 GB for ~4000 images, expandable to 32 GB)
– Protection: IP54
– Dimensions/Weight: 225 x 125 x 83 mm / 700 g with batteries
