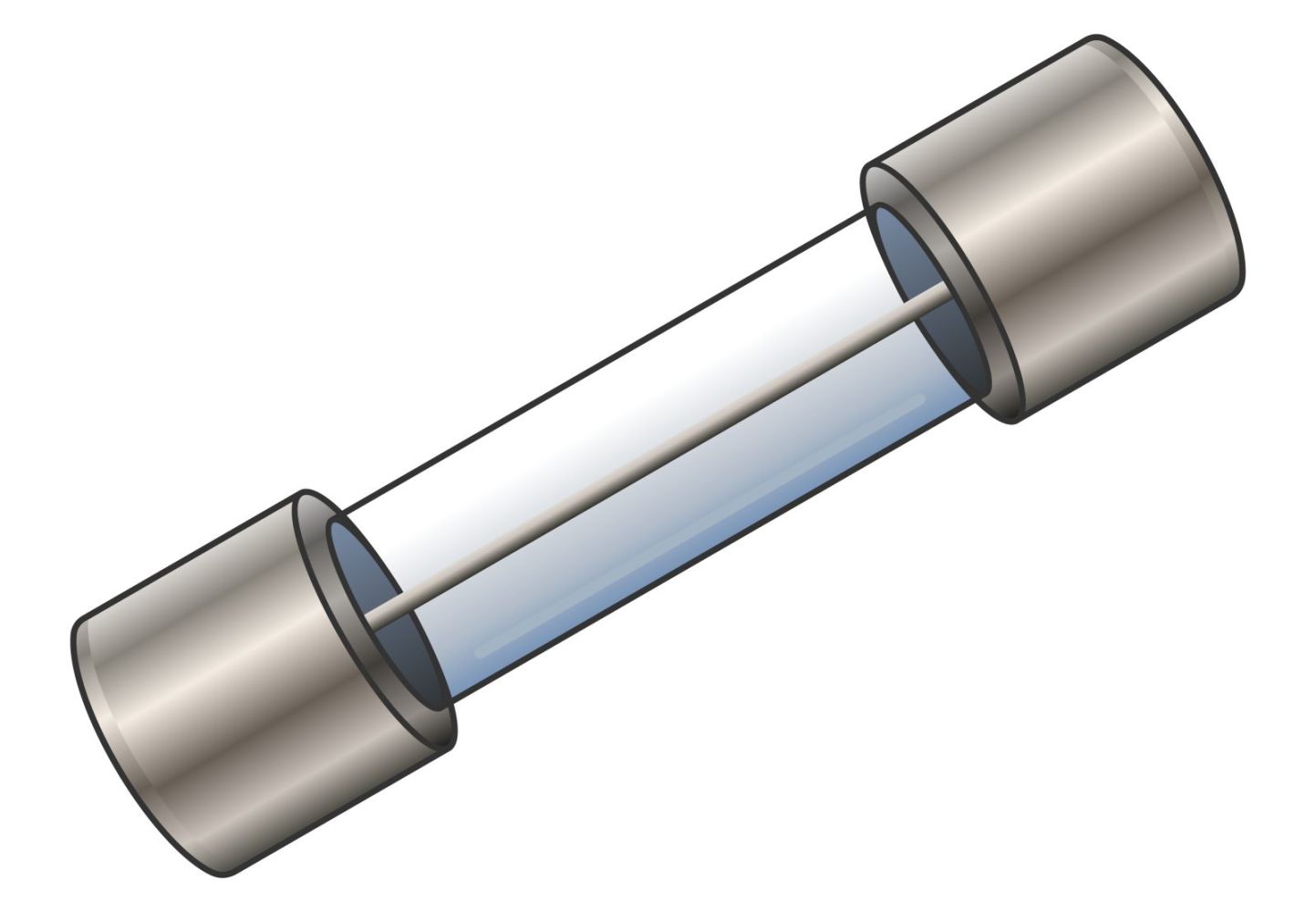

Chauvin Arnoux P01297012 10 pcs fuse superflink 100 mA (250 V / 30 kA / 6x32 mm) content_copy

These replacement fuses from Chauvin Arnoux are specifically designed for the protection of measuring instruments and their internal components. They feature a rated current of 100 mA and a superfast tripping characteristic, enabling rapid response to current surges. The fuses are rated for a nominal voltage of 250 V and have an interrupting capacity of 30 kA, making them suitable for use in demanding electrical environments. Their compact dimensions of 6 x 32 mm allow for easy integration into the designated devices. The set includes 10 pcs, making them ideal for replacement or as a stock for maintenance work.

Applications
The fuses are intended for use in measuring instruments of types C.A 2, 5260G, 6292, 6421, 6423, 6425, 6460, and 6462. They serve as protective components to safeguard the devices against excessive current loads caused by short circuits, overvoltages, or other electrical disturbances. Their use in these specific devices ensures proper functionality and prevents damage to sensitive electronic components.

Features and Equipment in Detail
The superfast tripping characteristic ensures that the fuse trips quickly even at loads slightly above the rated current, which is particularly important for protecting sensitive measuring instruments from thermal or electrical overloads. The interrupting capacity of 30 kA ensures that the fuse can safely and reliably interrupt even high short-circuit currents without failure. The nominal voltage of 250 V covers most applications in the field of measurement and testing technology.

Technology Explained Simply
The term superfast describes a tripping characteristic where the fuse trips quickly at a current value only slightly above the rated current. This is especially important for devices containing sensitive electronic circuits. The interrupting capacity indicates the maximum current that can be handled without the fuse failing during a short circuit. The dimensions 6 x 32 mm correspond to a standard format used in many measuring instruments, ensuring interchangeability and compatibility.

Compatibility and Accessories
The fuses are specifically designed for the mentioned measuring instrument types from Chauvin Arnoux. Compatibility with models C.A 2, 5260G, 6292, 6421, 6423, 6425, 6460, and 6462 is confirmed by the manufacturer. These are replacement parts that can be directly inserted into the existing fuse holders of the devices without requiring additional adjustments or tools.

Installation and Mounting
Installation is carried out by simply inserting the fuse into the designated fuse holder of the measuring instrument. The fuse is designed to be installed without tools or additional mounting aids. Correct alignment is ensured by the shape and dimensions. A special mounting instruction is not required, as the fuse is standardized and fits into the designated holders.

Operational Advantages
The use of these fuses ensures reliable protection of measuring instruments against overloads. The fast tripping during current surges minimizes the risk of damage to sensitive components. The high interrupting capacity ensures safe interruption even at high short-circuit currents. The delivery in a pack of 10 pcs enables efficient maintenance and stock keeping, avoiding downtime due to missing spare parts.

General
Rated voltage	250 V
Switching capacity	30 kA

---
