Chauvin Arnoux P01295525 HV test lead 15 kV (15 m) with crocodile clip (black) Guard content_copy

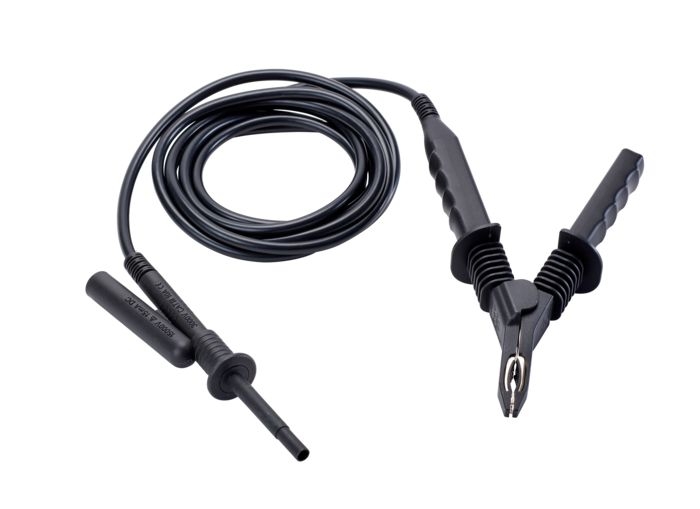

The Kroko cable HV 15kV earth conductor black 15 meters from Chauvin Arnoux is a high-voltage test lead for use in electrical installations with rated voltages up to 15 kV. It serves as an earth conductor for safe grounding or equipotential bonding in high-voltage environments and is specifically designed for use in laboratories, during maintenance work, or for testing high-voltage installations. The cable is equipped with an insulated high-voltage crocodile clip, which is permanently attached to the cable to ensure a secure and reliable connection. The crocodile clip is black and allows for easy and quick attachment to metallic conductors or grounding points. The cable length is 15 meters, providing sufficient reach for many application scenarios.

Applications

The cable is designed for use in high-voltage installations up to 15 kV and is particularly suitable for testing and maintenance work where safe grounding or equipotential bonding is required. It is frequently used in electrical engineering, for the maintenance of transformers, switchgear, or other high-voltage equipment. The cable is used in environments where high electrical safety is required, such as in industrial plants, power supply companies, or during testing of electrical devices. The integrated rear plate improves handling and prevents the clip from accidentally releasing.

Functions and Equipment in Detail

The cable features an insulated high-voltage crocodile clip, which is directly attached to the cable end and cannot be removed. The clip is designed for secure contact with metallic surfaces and provides a stable connection. The black color serves as visual identification and is standard for earth conductors in high-voltage installations. The length of 15 meters allows for flexible use, even in larger installations, without requiring additional extensions. The rear plate on the clip improves handling and prevents the clip from accidentally opening during operation.

Technology Explained Simply

The high-voltage crocodile clip is specifically designed for use at voltages up to 15 kV. The insulation protects the user from unintended electrical contact and ensures safe handling. The cable itself is designed for use in high-voltage environments and features appropriate insulation to ensure the required electrical strength. The permanent connection between cable and clip prevents accidental disconnection, which is critical during high-voltage work. The rear plate on the clip provides better control and prevents the clip from opening during use.

Compatibility and Accessories

The cable is designed as an earth conductor for high-voltage installations up to 15 kV and can be combined with other high-voltage test equipment or accessories designed for this voltage class. It is specifically intended for use in high-voltage installations and is used in conjunction with test instruments, grounding devices, or other safety components. Use with other devices requires compliance with the respective safety regulations and standards.

Installation and Mounting

Installation is performed by simply connecting the crocodile clip to the desired grounding point or equipotential bonding. The clip is designed to open and close easily to establish a secure connection. The rear plate on the clip facilitates handling and prevents accidental opening. The cable should be inspected before use for visible damage to the insulation or clip to ensure safety.

Advantages in Operation

The cable provides a safe and reliable grounding in high-voltage installations. The permanent connection between cable and clip prevents accidental disconnection, enhancing safety. The length of 15 meters allows for flexible use, even in larger installations. The rear plate on the clip improves handling and prevents accidental opening. The black color is standard for earth conductors and facilitates visual identification.
