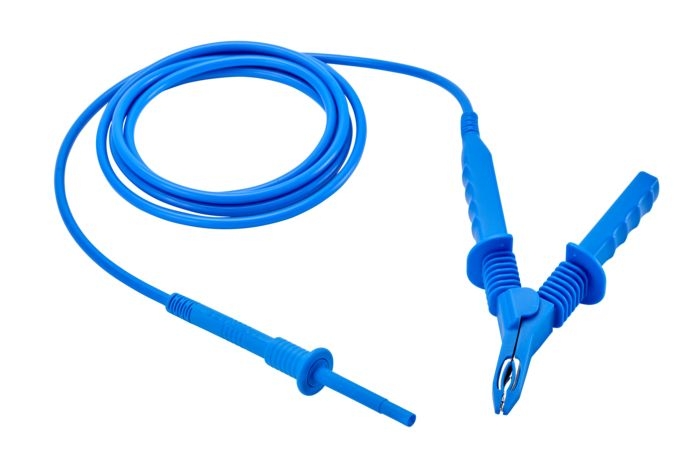

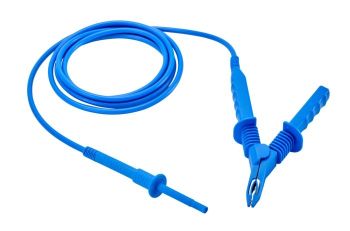

Chauvin Arnoux P01295520 HV test lead 15 kV (3 m) with crocodile clip (blue) content_copy

This product is a high-voltage cable from the brand Chauvin Arnoux, designed for measurement applications in the 15 kV range. It is a 3-meter-long cable with an integrated, insulated high-voltage crocodile clip in blue color. The clip is permanently connected to the cable and serves for secure and stable connection to measurement points or electrical installations. The cable is specifically designed for use in high-voltage installations, where a reliable and insulated connection is required to minimize electrical hazards.

High-voltage cable with a rated voltage of 15 kV enables the safe transmission of measurement signals or the connection of measuring instruments to high-voltage sources. The use of an insulated cable with an integrated crocodile clip reduces the risk of short circuits or electrical discharges. The crocodile clip is permanently mounted and provides a mechanically stable connection that remains secure even under slight vibration or movement. The insulated design protects the user and the environment from dangerous voltages by ensuring electrical isolation between the cable and the surroundings.

Applications include primarily the testing and maintenance of high-voltage installations, such as transformers, switchgear, or electrical machines. The cable is used in electrical engineering practice, where a safe and reliable connection between measuring instrument and test object is required. The length of 3 meters provides sufficient flexibility during work without making the connection excessively long or cumbersome.

Functions and equipment in detail include the permanent connection of the crocodile clip to the cable, preventing it from detaching or shifting during operation. The blue-colored insulation serves as a visual identifier and facilitates recognition during use. The clip itself is designed for high-voltage applications and features sufficient insulation thickness to ensure the required voltage safety. The material selection takes into account requirements for electrical insulation, mechanical strength, and resistance to environmental influences.

Technology explained simply means that the cable is not merely an electrical conductor but specifically dimensioned for the high-voltage range. The insulation must safely withstand 15 kV, requiring appropriate thickness and material quality. The crocodile clip is designed to establish a secure contact without damaging the insulation. The blue color serves as a standard identifier for specific applications, particularly in high-voltage technology, where color coding is used to distinguish between cables and functions.

Compatibility and accessories refer to use with other high-voltage measuring instruments or installations that utilize a crocodile clip as a connection point. The cable is not specifically designed for a particular device but can be universally used in installations requiring a 15-kV measurement connection. No additional accessories or adapters are required, as the clip connects directly to the test object.

Installation and mounting are performed by simply attaching the crocodile clip to the corresponding measurement point. The permanent connection requires no additional fastening elements. Installation is tool-free, as the clip operates mechanically and self-closing. The 3-meter length allows flexible positioning of the measuring instrument relative to the test object.

Operational advantages lie in the high safety provided by the insulated design and the secure clip connection. The cable connection is robust and resistant to mechanical stress. The color coding facilitates identification and prevents incorrect connections. The cable construction is designed for use in professional electrical installations, with electrical safety being the primary focus.

General
Rated voltage	15 kV
Insulation

---
