Chauvin Arnoux P01295513 HV test lead 5 kV (3 m) with crocodile clip (black) Guard content_copy

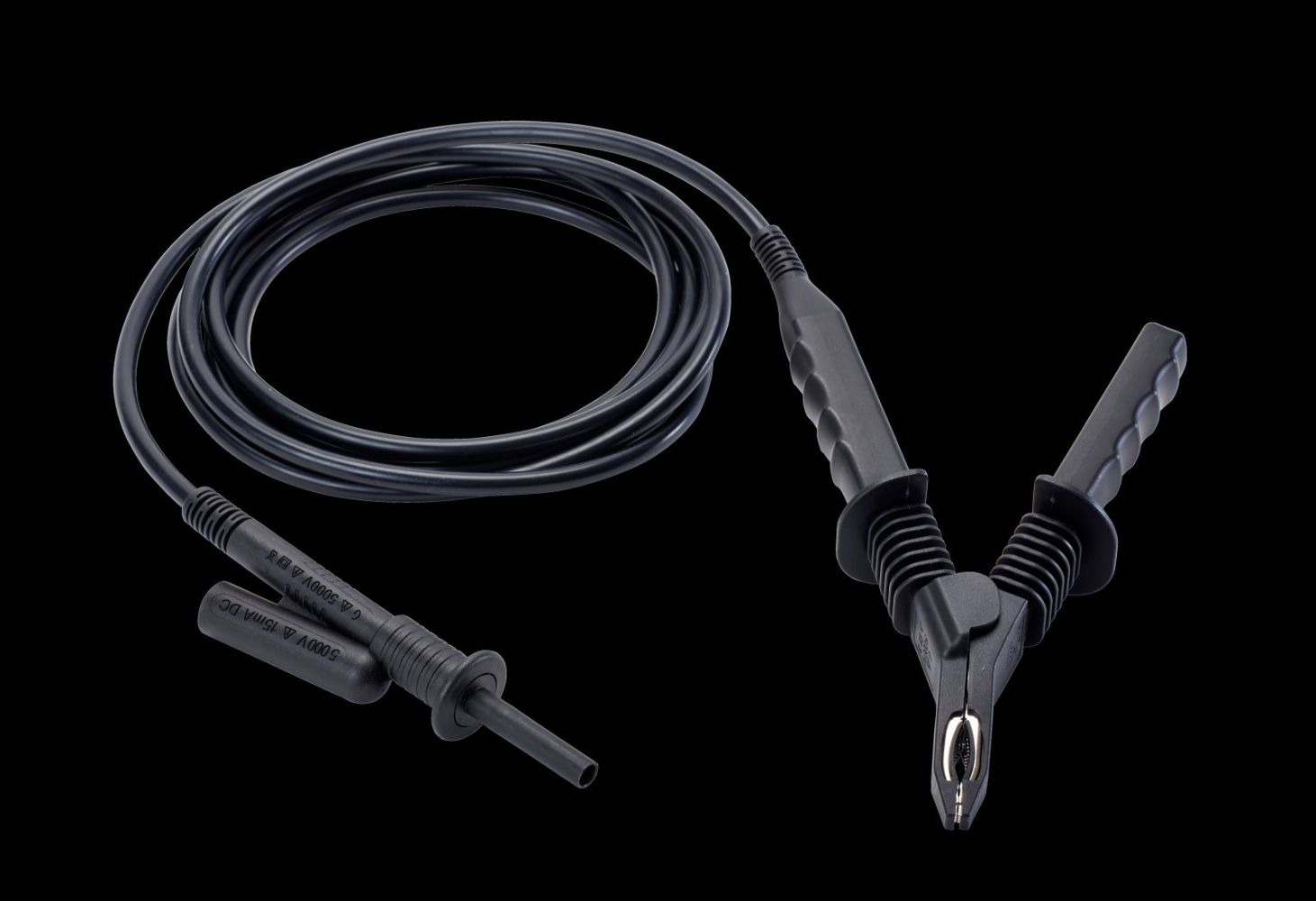

The HT alligator test lead 5kV black 3m from Chauvin Arnoux is a high-voltage test lead specifically designed for use with voltages up to 5 kV. The product consists of a 3-meter-long, insulated high-voltage cable, with a permanently attached, insulated alligator clip at one end. The entire lead is black and features a rear reattachment mechanism that enables a secure and repeatable connection. This design is intended for use in electrical installations and high-voltage measurement environments where high insulation strength and mechanical stability are required.

High-voltage test lead
The lead is designed for operation with voltages up to 5 kV, making it suitable for a wide range of applications in electrical engineering and high-voltage environments. The insulation of the cable and the alligator clip ensures reliable protection against electrical discharges and provides high safety for the operator. The alligator clip is permanently connected to the cable, preventing accidental detachment or loss during operation.

Insulated connection
The alligator clip is fully insulated, meaning it does not expose any conductive parts that could pose an electrical hazard upon contact. The insulation is designed to withstand the required voltage rating of 5 kV and is mechanically robust to avoid damage even with frequent use. The rear reattachment mechanism ensures that the clip remains securely attached to the cable after use, preventing loss.

Applications
The HT alligator test lead is typically used in professional electrical practice, particularly for measurements on high-voltage installations, transformers, switchgear, or during testing of electrical equipment. It is suitable for applications requiring a safe and reliable connection to a measuring instrument or test device, without compromising the insulation of the cable or clip. The 3-meter length provides sufficient flexibility for the user without becoming excessively long and cumbersome.

Compatibility and accessories
The lead is designed as a single component and can be combined with various measuring instruments and test devices that use an alligator clip as a connection point. It is used in conjunction with appropriate measuring instruments approved for high-voltage measurements.

Installation and mounting
Installation is performed by simply connecting the alligator clip to the desired measurement point. The rear reattachment mechanism ensures the clip remains attached to the cable after use, enabling safe storage and reuse. No additional tools or mounting aids are required. The lead is ready for immediate use and requires no additional preparation.

Operational advantages
The HT alligator test lead offers high safety due to the complete insulation of both cable and clip. The permanent connection of the clip to the cable prevents accidental detachment, which is particularly beneficial in moving or vibrating installations. The 3-meter length allows for flexible handling, and the rear reattachment mechanism ensures proper storage and reuse. The product is designed for professional use in electrical engineering and meets the requirements for safety and reliability in high-voltage measurements.
