Chauvin Arnoux P01295502 Adapter DIN 8-pin to S7 and jack (pH) content_copy

The DIN plug S7/JA

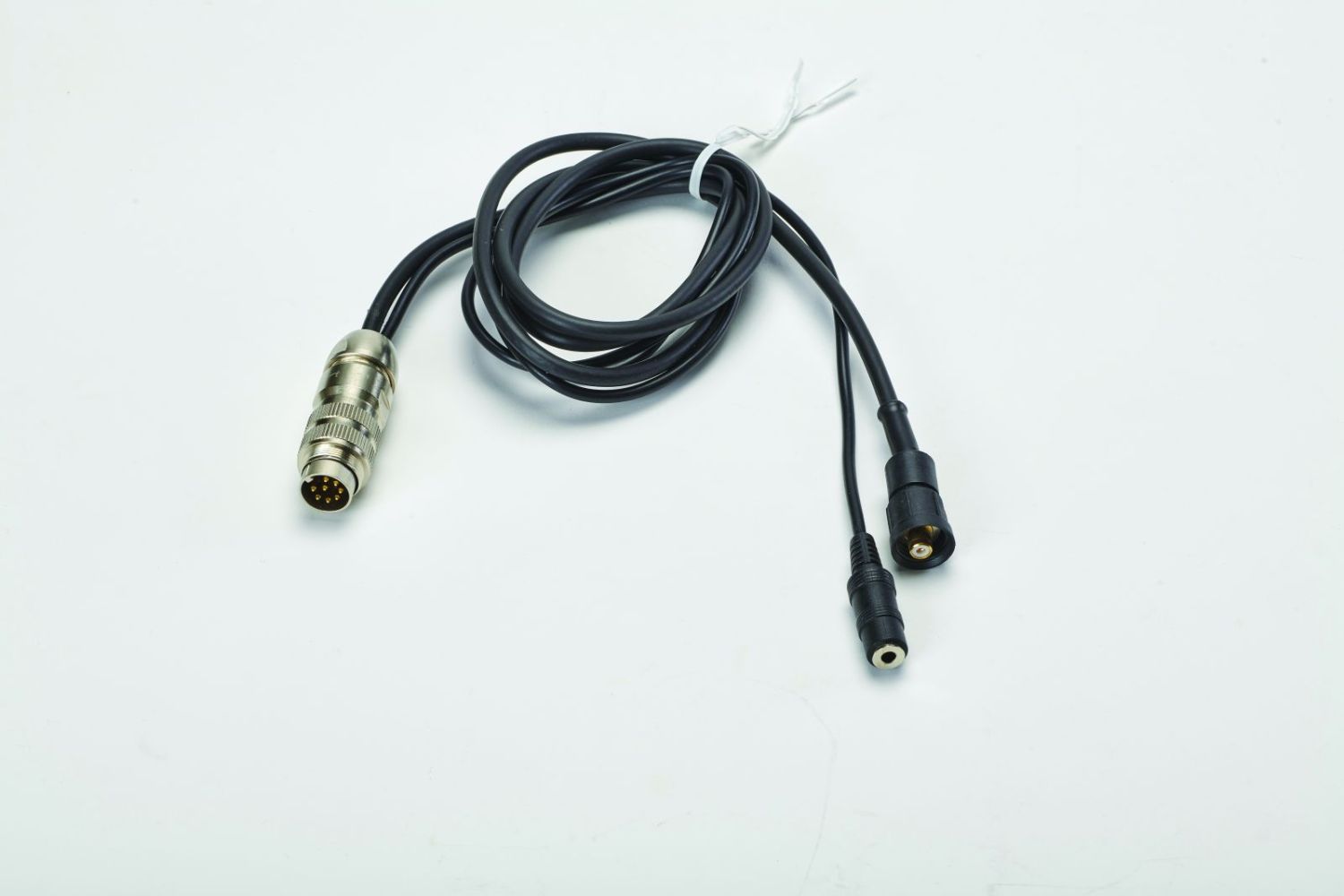

CK socket adapter from Chauvin Arnoux serves as a transition component between an 8-pin DIN plug and two separate socket connections: an S7 socket for pH or redox electrodes and a jack socket for temperature sensors. It is specifically designed for use with the pH meter CA 10101 to enable the connection of measurement sensors to the device. The design allows simultaneous operation of pH and temperature measurement via a single cable, thereby reducing connection complexity.

Applications

The adapter is intended for laboratory and process environments where pH values and temperature are measured simultaneously. It is typically used in the chemical industry, food technology, or environmental analytics, where precise and reliable measurement values are required. Use with the pH meter CA 10101 enables integrated measurement, with automatic temperature compensation occurring when the temperature sensor is connected via the jack socket.

Functions and equipment in detail

The adapter features an 8-pin DIN plug, which is inserted into the corresponding input of the pH meter CA 10101. On the other side, two separate sockets are integrated: an S7 socket designed for pH and redox electrodes, and a jack socket used for temperature sensors. The S7 socket is standardly designed for electrodes with S7 plug connection, which are common in pH measurement technology. The jack socket enables connection for temperature sensors connected via a jack cable.

Technology explained simply

The adapter functions as a mechanical and electrical transition, concentrating signals from two different sensors (pH/redox and temperature) onto a single cable system. The 8-pin DIN plug connection is a standard in measurement technology, particularly for devices from Chauvin Arnoux. The S7 socket is designed for connection with pH and redox electrodes, commonly used in laboratory setups. The jack socket enables connection with temperature sensors connected via a jack cable.

Compatibility and accessories

The adapter is specifically designed for the pH meter CA 10101. It enables the use of pH and redox electrodes with S7 plug connection, as well as temperature sensors with jack connection. For use with the CA 10101, the adapter is essential when simultaneous pH and temperature measurement is required.

Installation and mounting

Installation is carried out by simply inserting the 8-pin DIN plug into the corresponding input of the pH meter CA 10101. On the other side, the pH or redox electrode is inserted into the S7 socket and the temperature sensor into the jack socket. No additional tools or mounting procedures are required. The connection is mechanically stable and enables secure signal transmission.

Advantages in operation

The adapter reduces the number of required cables and plug connections, simplifying handling in the laboratory or production. Simultaneous measurement of pH value and temperature enables more precise analysis, as temperature compensation can be performed directly in the measuring device. Using the adapter with the CA 10101 ensures a standardized and reliable measurement environment suitable for scientific and industrial applications.
