Chauvin Arnoux P01295501 Adapter DIN 8-pin to BNC and jack (pH) content_copy

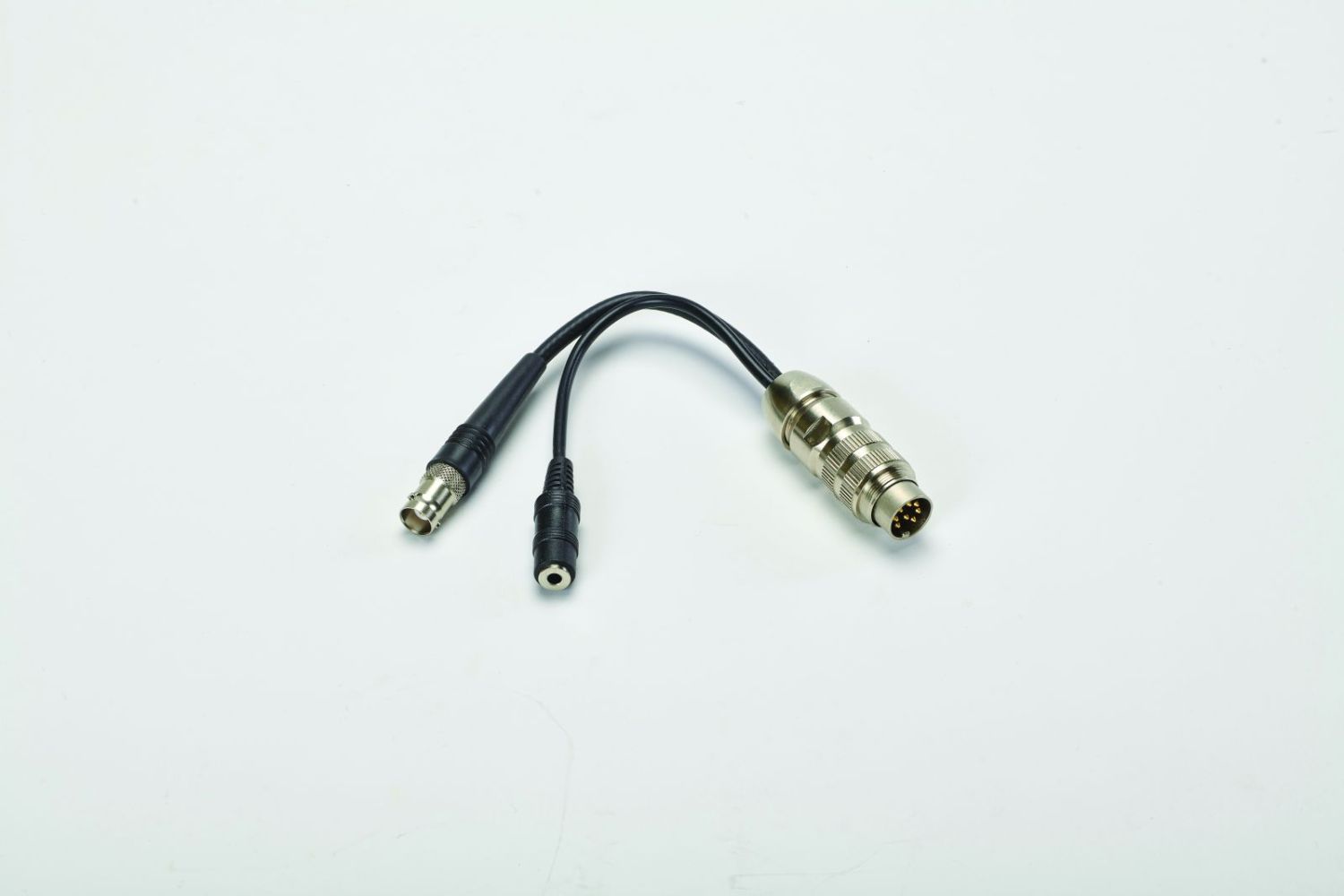

The DIN plug BNC/JA
CK socket adapter from Chauvin Arnoux serves as a transition component between an 8-pin DIN plug and two separate socket connections: one BNC socket and one JA
CK socket. It is specifically designed for use with the pH meter CA 10101 to enable the connection of pH or redox electrodes (via BNC) and temperature sensors (via JA
CK). The construction ensures secure and reliable signal transmission between the sensors and the measuring device, with electrical contacts precisely aligned to avoid contact issues or signal loss.

Applications

The adapter is used in laboratory and industrial applications where pH values and temperature values must be measured simultaneously. It is particularly relevant in process monitoring, the food industry, the chemical industry, and environmental analytics, where accurate and continuous measurement of pH values and temperature is required. Use with the pH meter CA 10101 enables integrated data acquisition, with automatic temperature compensation occurring when the temperature sensor is connected via the JA
CK socket.

Functions and Equipment in Detail

The adapter features an 8-pin DIN plug that is inserted into the measuring device CA 10101. On the other side, a BNC socket and a JA
CK socket are integrated, each intended for the connection cables of the pH/redox electrode and the temperature sensor, respectively. The BNC socket enables a secure, twist-resistant connection for the electrode, while the JA
CK socket ensures the connection of the temperature sensor via a standard jack cable. The design ensures that the signals from the two sensors are transmitted independently without interfering with each other.

Technology Explained Simply

The adapter functions as a mechanical and electrical transition connecting different plug systems (DIN 8-pin, BNC, JA
CK). The 8-pin DIN plug connection is a standard in measurement technology for connecting sensors to measuring devices. The BNC socket is a widely used plug system for high-frequency and measurement signals, especially in pH measurement technology. The JA
CK socket (also known as a jack socket) is used here for the temperature sensor, as it provides a simple, robust, and cost-effective connection. The electrical separation of the two sensors within the adapter ensures that the signals are not overlapped.

Compatibility and Accessories

The adapter is exclusively intended for use with the pH meter CA 10101.

Mounting and Installation

Installation is performed by simply inserting the 8-pin DIN plug into the corresponding connection on the pH meter CA 10101. Subsequently, the sensors are connected via the BNC and JA
CK sockets. No additional tools or mounting procedures are required. The connection is mechanically stable and can be disconnected without tools.

Advantages in Operation

The adapter reduces the number of required connections and enables compact, clear cabling. Simultaneous measurement of pH value and temperature is possible without additional devices or adapters, increasing measurement accuracy as temperature compensation occurs directly in the measuring device. The use of standard plug connections (BNC, JA
CK) facilitates maintenance and sensor replaceability.

The adapter is specifically developed for use with the pH meter CA 10101, ensuring optimal signal transmission and compatibility. The construction is robust and designed for daily use in laboratory and industrial environments. Sensor connections are made via standardized plug systems, enabling secure and reproducible measurements.
