Chauvin Arnoux P01295483 Set of 5 test leads, 5 crocodile clips and 1 set of identification parts content_copy

This replacement kit from Chauvin Arnoux is specifically designed for Qualistar network analysers with 5 voltage measurement inputs. It serves as a replacement or supplementary set for voltage measurement and includes all necessary components to ensure safe and precise measurement. The set is intended for use in electrical engineering and measurement technology, particularly for analysing electrical networks and monitoring voltage conditions.

Applications
This kit is primarily used in conjunction with Qualistar network analysers, which are employed in industrial electrical engineering, energy supply, and maintenance of electrical installations. The 5 measurement leads enable simultaneous measurement at multiple voltage inputs, which is relevant for diagnosing network quality, harmonics, or phase shifts. The crocodile clips provide a flexible and quick connection to wires or terminal blocks, thereby accelerating the installation and disassembly of the measurement setup.

Functions and Equipment in Detail

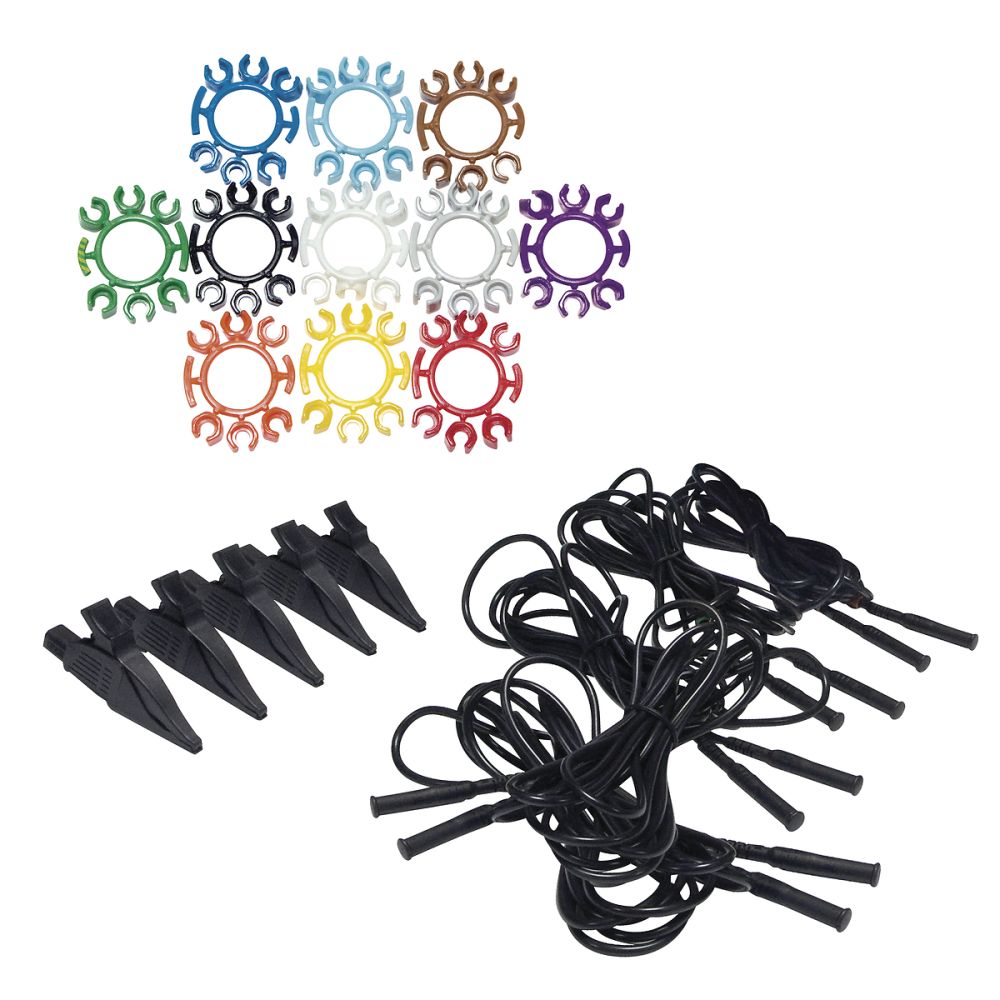

The set consists of 5 measurement leads, each equipped with banana-banana connectors (4 mm). This connector type is standard in measurement technology and ensures a stable electrical connection. The leads are fitted with crocodile clips, which allow secure attachment to wires or terminals. The crocodile clips are designed for voltage measurement applications and support reliable contact. Additionally, the set includes a set of 12 coloured identification parts, used for marking measurement leads, current transformers, and measurement inputs. These identification parts improve clarity in complex measurement setups and reduce the risk of connection errors.

Technology Explained Simply
The measurement leads are designed for transmitting voltage signals and serve as a connection between the network analyser and the electrical system under test. The banana connectors (4 mm) are a standard in measurement technology and enable a secure, vibration-free connection. The crocodile clips are flexible and can adapt to different terminal surfaces, making them suitable for various connection types. The coloured identification parts serve as visual aids to clearly assign each measurement lead to the corresponding input or current transformer. This is particularly important in complex measurement setups involving multiple phases or voltage sources.

Compatibility and Accessories
The replacement kit is exclusively intended for Qualistar network analysers with 5 voltage measurement inputs. It is not suitable for other devices or different numbers of inputs. Compatibility is based on the number of measurement leads and the connection type (banana-banana 4 mm). The identification parts are universally usable and can also be used for other measuring instruments or installations, provided marking of leads or connections is required.

Installation and Mounting
Installation is carried out by directly connecting the measurement leads to the corresponding inputs of the network analyser and then securing the crocodile clips to the wires or terminals to be measured. The identification parts are attached to the leads or to the device inputs to ensure clear assignment. No additional tools or mounting aids are required.

Operational Advantages
Using this replacement kit increases efficiency when performing voltage measurements. The pre-assembled measurement leads with crocodile clips reduce installation time, while the coloured identification parts prevent errors in lead assignment. Compatibility with Qualistar network analysers ensures safe and precise measurement without additional adjustments.

Scope of Delivery
The set includes 5 measurement leads, 5 crocodile clips, and a set of 12 coloured identification parts. These components are explicitly mentioned in the description and constitute the complete scope of delivery.

General
Number of measurement lines	5

---
