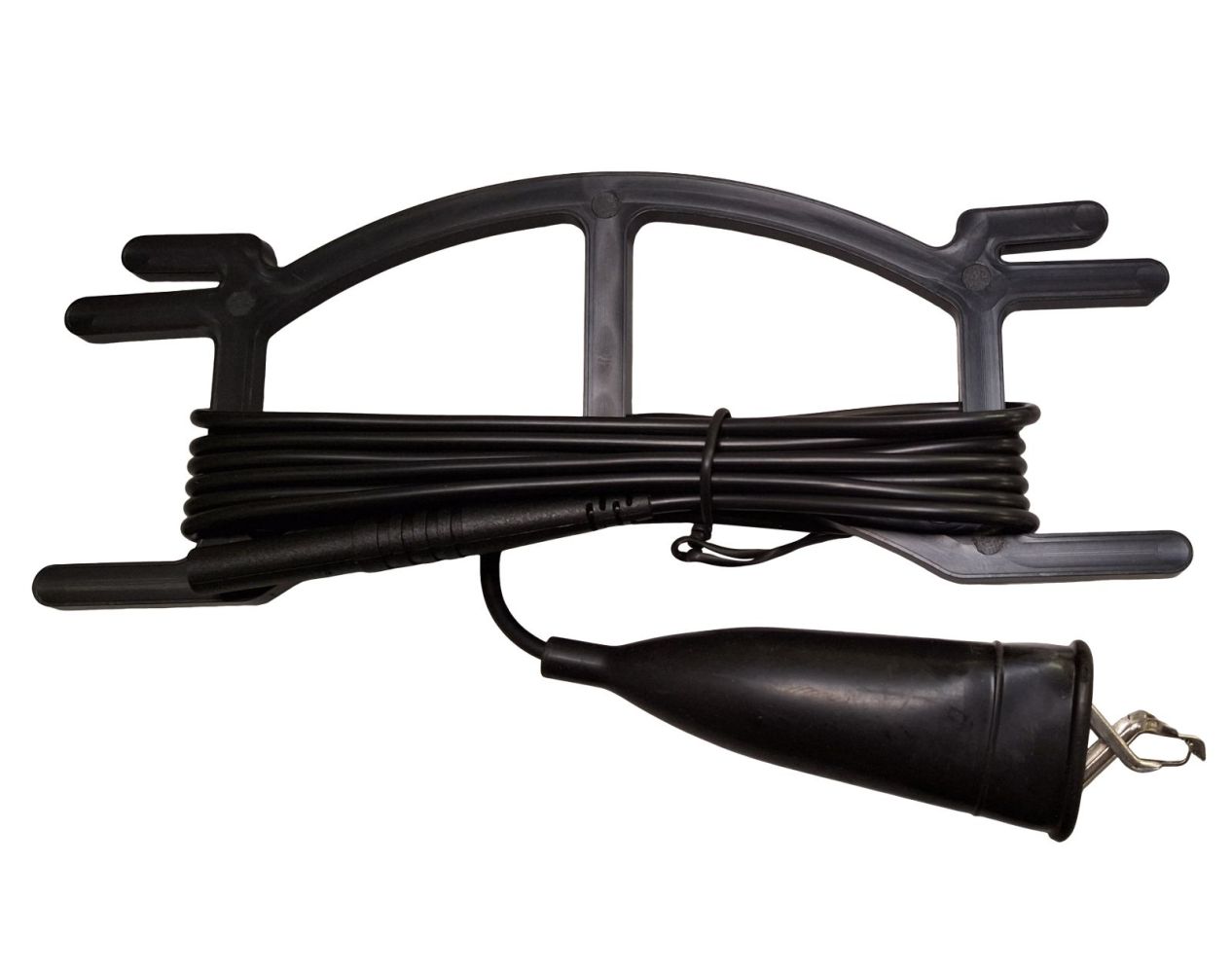

Chauvin Arnoux P01295270 Test lead 2 m for current clamps content_copy

This product is a replacement cable for the clamp connection, specifically designed for use with the grounding tester CA 6472 from Chauvin Arnoux. It is intended for selective grounding measurement, where individual grounding points in the network are specifically checked to evaluate the quality of the grounding connection. The test lead enables a safe and reliable connection between the grounding tester and the clamp to be measured, ensuring measurement accuracy.

Test lead for grounding tester
The cable is designed as a replacement part for the clamp connection and is used when the original cable is worn or damaged. It is designed for use in the field of electrical safety technology, particularly for testing grounding systems in buildings, industrial facilities, or during maintenance of electrical installations. The cable is used in conjunction with the CA 6472, a specialized device for grounding measurement, which features a current clamp to analyze grounding conductivity.

Functions and equipment in detail
The test lead has a length of 2 meters, providing sufficient reach for most application scenarios in craftsmanship and industry. The cable construction is designed for use in electrical testing environments, with mechanical stability and electrical conductivity being the primary focus. The connectors are optimized for connection to the grounding tester CA 6472 and to the current clamp, ensuring a secure and interference-free measurement. The cable is designed for selective grounding measurement, where individual grounding points are checked one after another to identify faults or poor contacts.

Technology explained simply
The test lead transmits electrical signals between the grounding tester and the current clamp, which measures the grounding current. The current clamp encircles the grounding conductor and detects the flowing current, which is then transmitted via the cable to the measuring device. The 2-meter length allows flexible positioning of the testing device without impairing the measurement. The cable construction is designed to withstand mechanical stress while ensuring high electrical conductivity to avoid measurement errors.

Compatibility and accessories
The cable is specifically developed for the grounding tester CA 6472 from Chauvin Arnoux and is offered as a replacement part for the clamp connection. It is not intended for other devices or measurement systems. Compatibility is limited to the CA 6472 system, where the cable serves as a replacement part for the clamp connection.

Installation and mounting
Installation is performed by simply connecting the cable to the clamp connection of the CA 6472 and to the current clamp. No additional tools or mounting aids are required. The connection is mechanically robust and can be securely connected and disconnected without tools. The cable is designed for use in electrical testing environments, with mounting typically being part of the daily testing process.

Advantages in operation
The use of the replacement cable ensures continuous functionality of the grounding tester CA 6472, even in case of wear or damage to the original cable. The 2-meter length provides sufficient flexibility for testing in various environments without affecting measurement accuracy. The special construction for selective grounding measurement enables precise analysis of individual grounding points, which is crucial for the safety of electrical installations. The cable is designed for professional use and supports the efficient execution of grounding tests.
