Chauvin Arnoux P01295261 Spool with 100 m test lead red content_copy

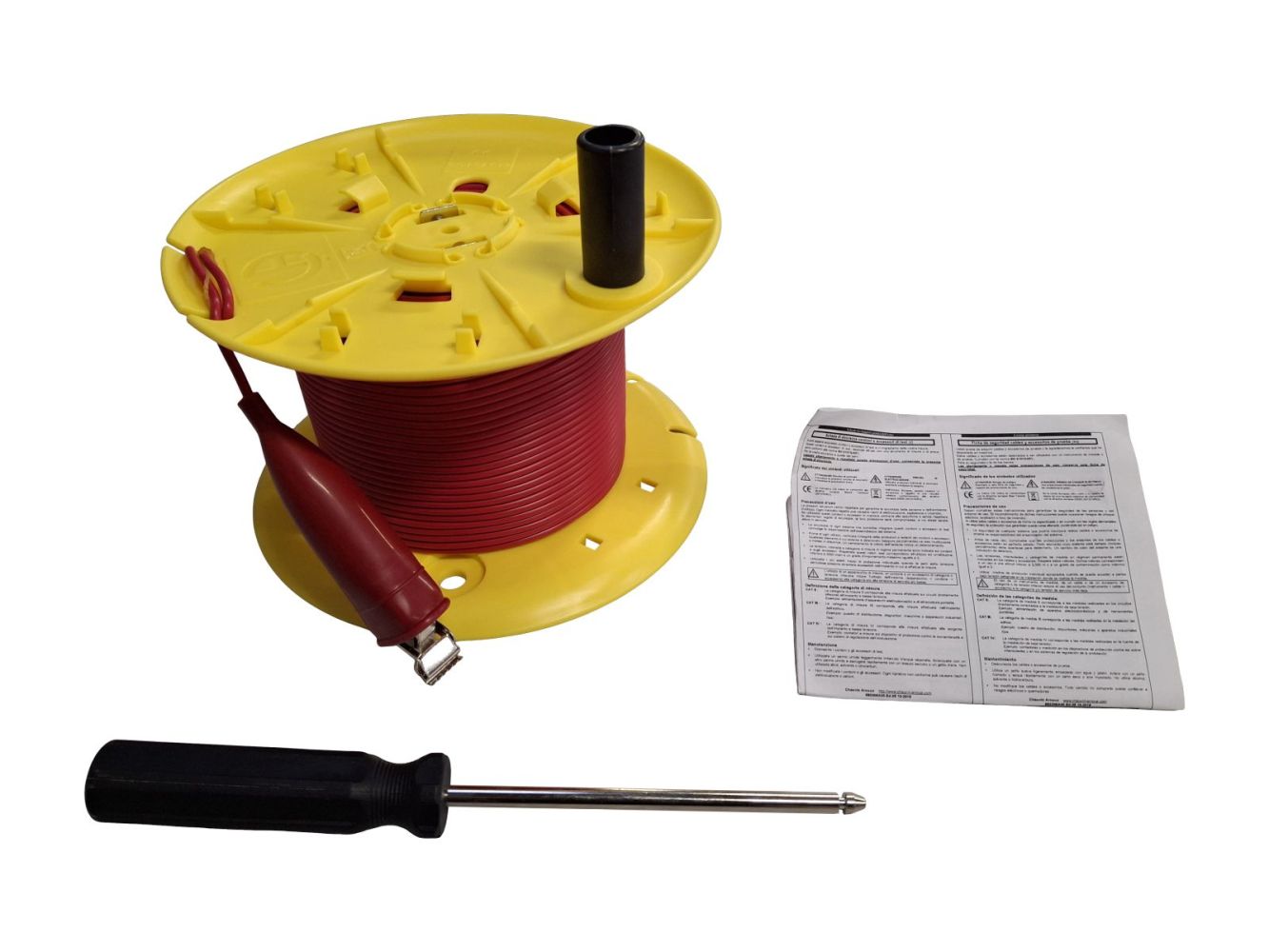

This test lead from Chauvin Arnoux is a high-quality accessory for grounding measurements and is used to determine grounding resistances as well as specific earth resistances. The product consists of a 100 m long, red-coloured test lead wound onto a reel. The reel features a handle that facilitates transport and handling. The lead is specifically designed for use with grounding test instruments operating according to the 1-, 3-, or 4-wire method. The red colour serves for visual distinction in the test setup, especially when multiple leads are used in parallel.

Applications

The test lead is used in the fields of electrical engineering and safety technology to check the effectiveness of grounding systems. It is suitable for measurements outdoors, where long connections between the test instrument, grounding electrode, and measurement points are required. Applications include testing protective and functional grounding in industrial plants, buildings, or during the installation of lightning protection systems. Use in the 4-wire method enables precise measurements, as current and voltage measurement are performed separately.

Functions and Equipment in Detail

The lead is wound onto a reel with a handle, enabling compact storage and easy transport. The reel is designed to allow the lead to be unwound without tangling. The red colour is standard for grounding leads in electrical engineering, distinguishing them from other leads (e.g. black or blue). The length of 100 m allows measurements over long distances, which is particularly relevant for testing grounding systems over large areas or for determining specific earth resistance.

Technology Explained Simply

The test lead serves as a connecting element between the grounding test instrument and the measurement points (e.g. grounding electrode, auxiliary anodes). During measurement, current is fed through the lead into the earth, and voltage is measured at a separate point to calculate the resistance. The length of the lead affects measurement accuracy, especially when determining specific earth resistance, where the lead must be laid over a sufficiently large distance to avoid distorting the measurement due to local grounding structures. The use of a reel with a handle simplifies handling, especially for long measurement runs in the field.

Compatibility and Accessories

The test lead is designed for use with grounding test instruments from Chauvin Arnoux and other manufacturers that support the 1-, 3-, or 4-wire method. It can be combined with additional accessories, such as adapters with cable lugs or banana sockets, grounding rods (T-shaped), or additional reels of different colours and lengths. Combining it with a set of 5 adapters (cable lugs / 4 mm banana socket) allows flexible adaptation to various test instruments. Using multiple reels (e.g. red and black) supports distinction of test leads in the setup.

Installation and Mounting

Installation is performed by unwinding the lead from the reel and connecting it to the appropriate terminals of the test instrument and the grounding system. The reel can be placed at the measurement site during work, with the handle enabling safe handling. The lead should be laid as straight as possible and without unnecessary bends to avoid measurement errors.

Operational Advantages

Using a reel with a handle reduces effort when handling long leads. The clear colour coding (red) supports identification of the lead in the test setup, especially in complex measurement arrangements. The 100 m length enables measurements over large distances, which is necessary for testing grounding systems in large industrial facilities or for determining specific earth resistance. The robust construction of the lead ensures a reliable connection even under harsh outdoor conditions.
