Chauvin Arnoux P01295231 Set of 2 simplified HV test leads content_copy

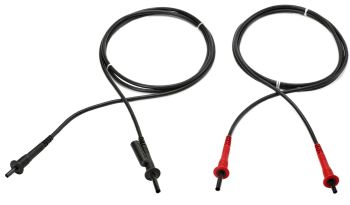

This item is a set of two high-voltage test leads, specifically developed as accessories for insulation testers of the brand Chauvin Arnoux with a test voltage of 5 kV. The test leads are intended for use with the models C.A 6505, C.A 6545, C.A 6547 and C.A 6549. They are used to perform insulation measurements in electrical installations and enable a safe and efficient connection between the measuring device and the object under test. The leads are available in black and red, allowing clear differentiation between positive and negative poles and enhancing work safety.

Applications

The test leads are designed for use in electrical engineering and in the field of electrical safety testing. They are particularly used for testing insulation resistance in electrical installations, machines, transformers and other high-voltage systems. The use takes place in environments where safe and reliable measurement under high voltage is required, for example in maintenance, servicing or during the installation of electrical systems.

Functions and equipment in detail

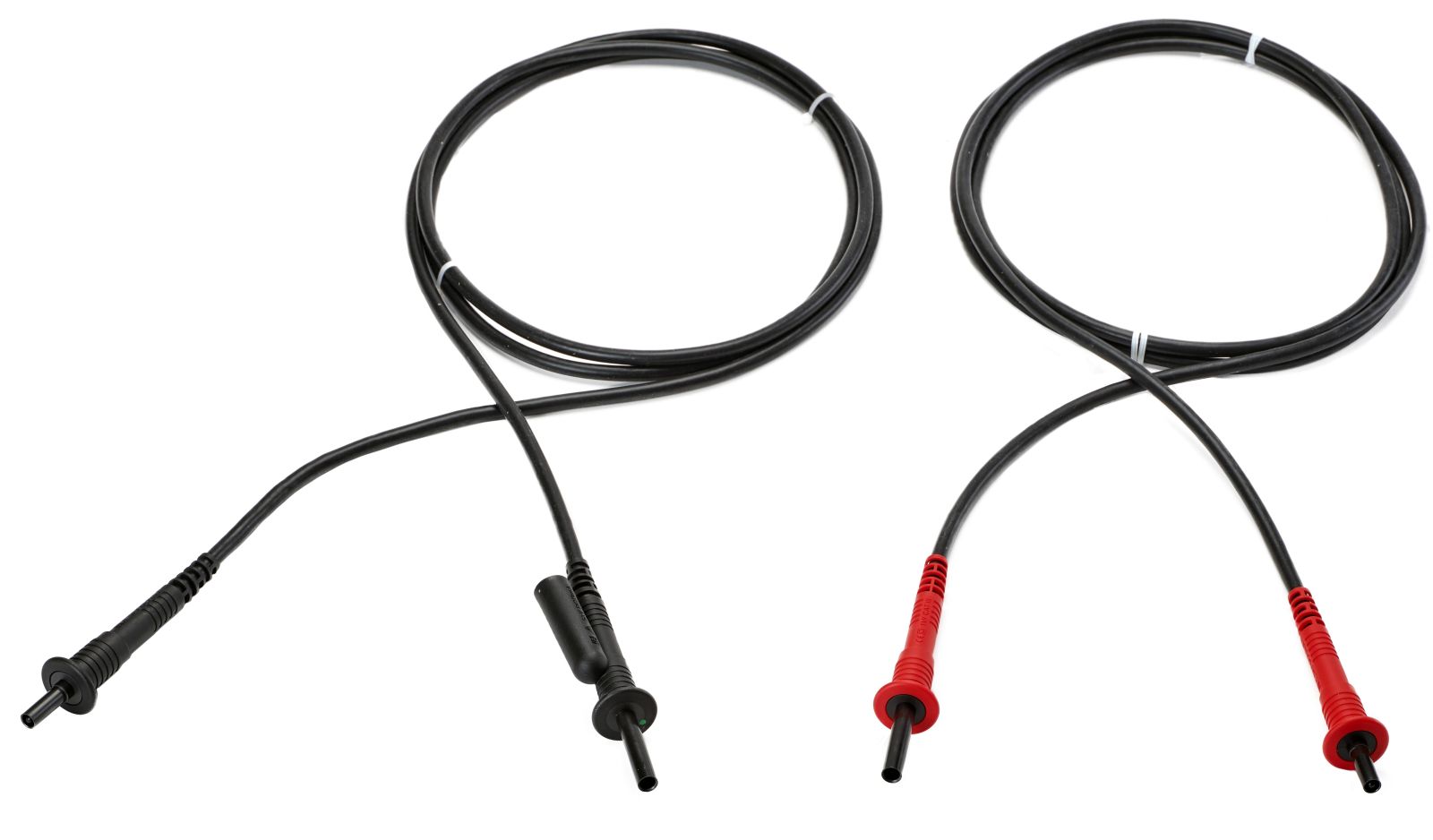

The set consists of two individual test leads, each with a length of 3 m. The black and red colour coding supports clear identification of polarity and reduces the risk of incorrect connections. The leads are equipped with a rear storage loop, which facilitates handling and storage. The construction is designed to meet the requirements of high-voltage measurement, with the leads rated for a test voltage of 5 kV. The connection parts are designed to ensure a secure and stable connection to the insulation tester and the test object.

Technology explained simply

The test leads are designed as high-voltage (HV) leads, meaning they are designed for the transmission of electrical signals under high voltage. The rated voltage of 5 kV defines the maximum operating value at which the leads function safely. The length of 3 m provides sufficient freedom of movement during measurement without being excessively long, which could impair control and safety. The rear storage loop allows for compact storage and prevents confusion or loss of the leads.

Compatibility and accessories

The test leads are exclusively intended for insulation testers of the Chauvin Arnoux series C.A 6505, C.A 6545, C.A 6547 and C.A 6549. The connection parts are matched to the plug connections of these devices to ensure a secure and reliable electrical connection.

Installation and mounting

Installation is carried out by simply plugging the lead connectors into the corresponding sockets of the insulation tester and into the test contacts on the object to be measured. The rear storage loop facilitates storage of the leads after use. No additional tools or mounting aids are required. The leads are designed for direct use without additional preparation.

Advantages in operation

The test leads offer clear colour coding, which simplifies polarity assignment and reduces sources of error. The length of 3 m provides sufficient freedom of movement without losing control of the leads. The rear storage loop ensures orderly storage and prevents confusion. The specific design for the mentioned insulation testers ensures optimal compatibility and a secure connection. The leads are designed for use in high-voltage systems and support the performance of insulation measurements in accordance with the requirements of electrical engineering.

General
Test voltage	5 kV

---
