Chauvin Arnoux P01295172 RS 232 cable DB9M-DB25Fx2 content_copy

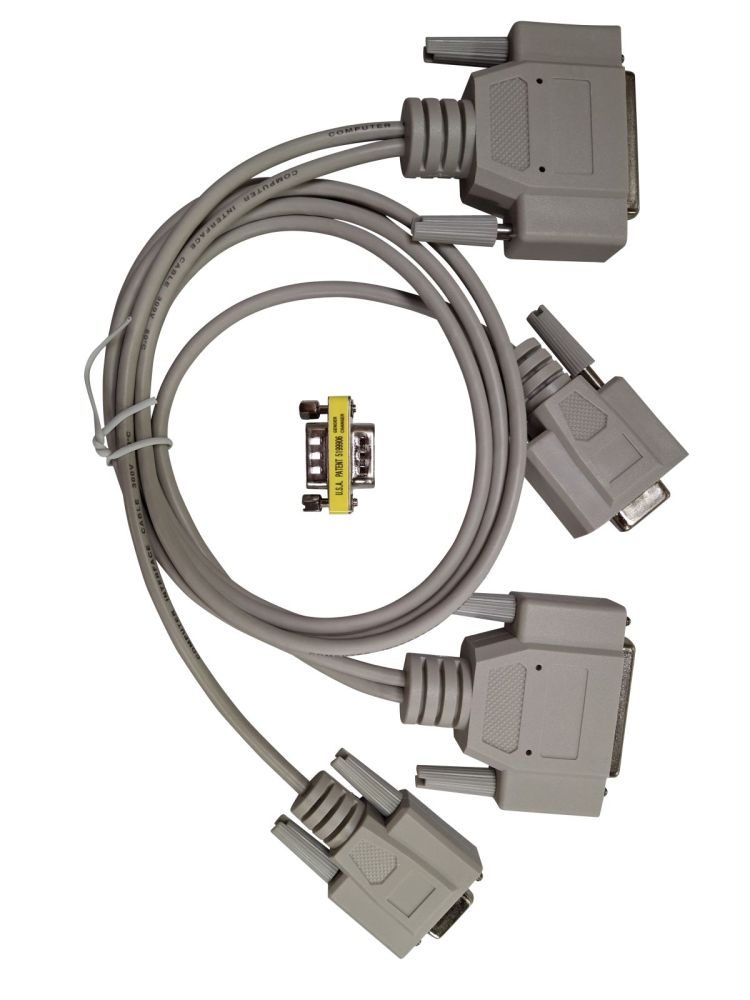

The RS232 communication cable from Chauvin Arnoux is used to connect devices equipped with serial interfaces featuring DB9 and DB25 female connectors. It enables data transmission between two end devices, with a 9-pin DB9 female connector and a 25-pin DB25 female connector installed at each end of the cable. This configuration is typical for applications in industrial measurement technology, where communication between measuring instruments and control systems is required, or for integrating legacy systems into existing infrastructures.

RS232 cable is the general term for serial communication cables based on the RS-232 standard. This standard defines the electrical and mechanical characteristics for serial data transmission over cables. The cable is used in environments where a direct, point-to-point connection between two devices is necessary, for example, during configuration of measuring instruments, data transmission to PC systems, or connection to industrial controls.

Functions and equipment in detail

The cable features identical connector connections at both ends: a DB9 female connector and a DB25 female connector. These female connectors ensure a secure mechanical connection and guarantee reliable electrical contact. The use of female connectors at both ends is designed for connecting to devices with corresponding female ports, where the pin count (9 or 25) determines the number of available signal lines. The exact pin assignment is crucial for correct data transmission, with the standardisation of the RS-232 protocol ensuring compatibility between different manufacturers.

Technology explained simply

Serial communication via RS232 operates bit by bit, with data transmitted over a single cable (or multiple, depending on requirements). The cable transmits signals representing electrical voltage levels to encode bits (0 or 1). The transmission rate (baud rate) is synchronised between the connected devices and may vary depending on the device type. The use of female connectors at both ends allows flexible adaptation to different device configurations, especially when one device has a DB9 port and another has a DB25 port. The cable construction is designed to minimise interference and ensure stable signal transmission.

Compatibility and accessories

The cable is designed for devices equipped with DB9 and DB25 female connectors for serial interfaces. It is particularly suitable for industrial measurement technology and for connecting measuring instruments to control or computer systems. It is used in environments where direct, wired communication is required, for example, during configuration or data logging of measuring instruments. No special accessories are required, as the connectors plug directly into the device ports.

Installation and mounting

Installation is performed by simply plugging the female connectors into the corresponding ports on the devices. The mechanical connection is secured by the shape of the connectors and sockets, with reliable electrical contact ensured by the metallic contacts. No additional mounting or tools are required. Correct pin assignment is essential for functionality; this relies on the standardisation of the RS-232 protocol, which defines the pinout.

Advantages in operation

The cable provides a reliable and simple way to connect devices with DB9 and DB25 female ports. The use of female connectors at both ends allows flexible adaptation to different device configurations. Serial communication via RS232 is widely used and supported in many industrial and technical applications, ensuring compatibility with existing systems. The cable construction ensures stable signal transmission and minimises interference, which is particularly important when transmitting measurement data.
