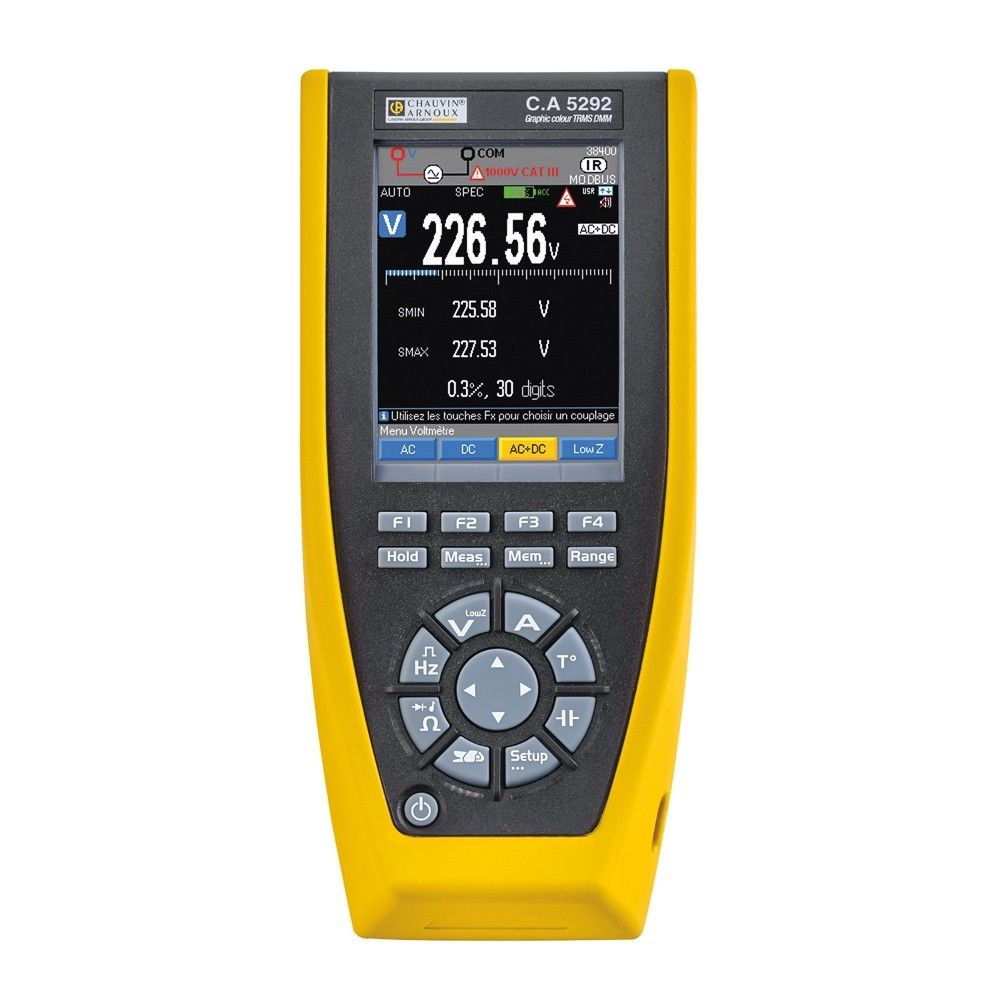

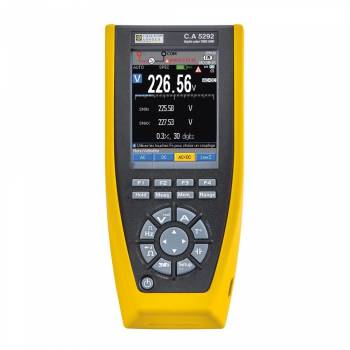

Chauvin Arnoux P01196802 CA 5292 color graphics multimeter

Highlights:

• The reference for multimeters in both laboratory and field applications
• Graphical color display with data logger function for instant visualization of trends, waveforms, and other parameters
• Bandwidth up to 100 kHz
• Basic accuracy of 0.03 %
• Numerous functions and analysis tools: Monitoring MIN, MAX, AVG, and PEAK values with timestamps, math functions …
• Optical USB interface for data processing and analysis with SX-DMM software

Description:

Key Features

• Display: Graphical trend display, simultaneous multi-parameter visualization, waveform display up to 600 Hz
• Analysis Tools: MIN, MAX, AVG, and PEAK display with timestamps, filtering functions, duty cycle measurement, …
• Ergonomics: IP67 protection rating, IEC61010-compliant safety terminals for 1000 V CAT III/600 V CAT IV, USB charging
• Performance: 100 k counts, bandwidth up to 200 kHz, accuracy of 0.02 %
• Connectivity: USB, Bluetooth, and Android app compatibility via SX-DMM software, SCPI programmable

Description
ASYC IV series multimeters are portable devices with a graphical color display for measuring key electrical parameters. They enable instant visualization of signal trends and waveforms. Compact and robust, these IP67-rated devices are resistant to dust and water, ensuring reliability even in harsh conditions.

In addition to core measurement capabilities, the multimeters offer advanced features like relative measurement, MATH functions, and direct measurement of high currents using external current clamps, making them essential tools for precision metrology.

Functions and Features

• Color Display:
- 320 x 240-pixel matrix screen, clearly readable with a black background
- Graphical representation of multiple parameters and signal trends
- Waveform display up to 600 Hz
- Curve display with cursors and zoom for recorded values


• Data Logger:
- Stores up to 10,000 measurement values
- Adjustable measurement counts, intervals, and recording durations
- Internal storage of up to 10 measurement sequences
- Interactive zoom functionality for recorded values
- Monitoring mode for displaying MIN, MAX, AVG, and PEAK values with timestamps


• Rugged and Versatile:
- IP67 protection rating for tough environments
- Rechargeable Ni-MH AA batteries providing up to 100 hours of operation
- Rechargeable during use


• Connectivity:
- USB and Bluetooth interfaces
- Compatible with SX-DMM software for data analysis and programming


Technical Specifications:

• Measurement Ranges:
- Voltage: Up to 1000 V AC/DC
- Current: Measurable via external current clamps
- Frequency: Up to 100 kHz

• Accuracy: 0.03 %
• Storage Capacity: Stores up to 30 measurement sequences internally
• Power Supply: Rechargeable Ni-MH batteries

Included Accessories:

ASYC IV multimeter, USB cable, SX-DMM software, Ni-MH batteries, user manual.
