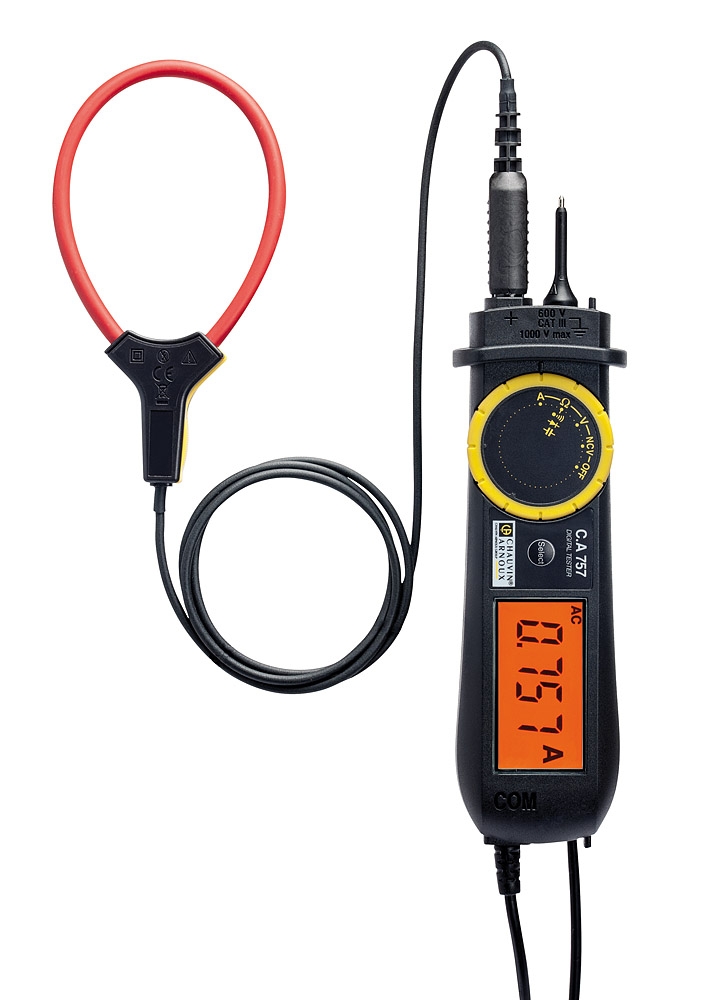

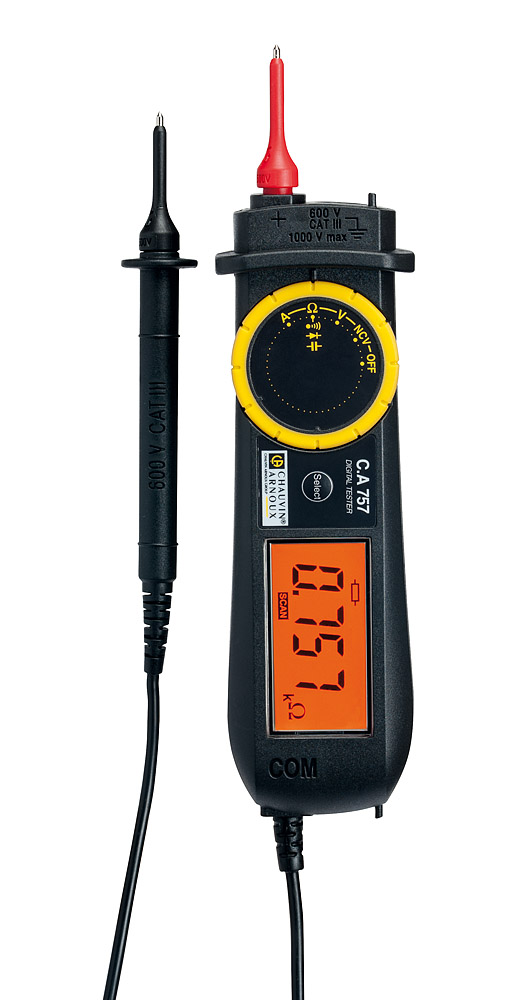

Chauvin Arnoux CA 757 digital voltage tester with current transformer Miniflex
|
251,86 EUR |
|||||||||||
|
( 299,71 EUR incl. VAT ) ≈ £210.05 | ≈ $281.33 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 1927766 | ||||||||||
| Mfg Part No: | P01191757 | ||||||||||
| UPC/EAN: | 3663653000116 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Measurement from Chauvin ArnouxFurther products in category Measurement
All products of Chauvin Arnoux
Product information for Chauvin Arnoux P01191757:
Description in English:
The C.A 755 digital multi-voltage tester is a compact, user-friendly, and safe tool for a wide range of electrical measurement tasks. With multiple automatic functions, such as automatic detection of AC and DC voltages, resistances, diodes, and capacitances, this device is ideal for electricians, HVAC technicians, and maintenance personnel.Its robust design, featuring dust and splash protection (IP54) and drop resistance up to 2 m, and detachable test tips for easy adaptation, makes the C.A 755 a reliable companion for safe and efficient work.
Key Features and Functions:
- Automatic Detection: - AC and DC voltages
- Auto Range Selection: Ensures precise and fast measurements
- Non-Contact Voltage Detection: Enables safe operation near electrical systems
- Safety Features: - Protection against voltage spikes up to 6 kV
- One-Hand Operation: Function selection via practical rotary switch
- Illuminated Display: 3000-digit screen for optimal readability
- Resistances, diodes, and capacitances
- Double insulation compliant with IEC 61010-2-033
Technical Data:
- Voltage Measurement: 3 mV DC to 1000 V DC / 100 mV AC to 1000 V AC
- Resistance Measurement: 0.3 Ω to 30 MΩ
- Capacitance Measurement: 400 pF to 30 mF
- Continuity Test: Audible signal for R ≤ 30 Ω
- Diode Test: Yes
- Measurement Category: 600 V CAT III
- Protection Rating:(IP54 (dust and splash resistant)
Special Features:
- Indication of dangerously high voltages
- Automatic shutdown after 10 minutes of inactivity
- Detachable and easily replaceable test tips
- Durable and lightweight design for mobile use
Applications:
- Voltage and continuity testing in electrical installations
- Resistance and capacitance measurements for installations and maintenance
- Diode testing and non-contact voltage detection
Included Items:
- C.A 755 voltage tester
- Detachable test tips
- User manual
Highlights:
- Maximum safety with protection against voltage spikes up to 6 kV
- Intuitive operation with automatic functions
- Compact, robust design for demanding environments
| Eigenschaften | |
| Impedance | 10 MΩ |
| Dimensions / weight | 180 x 52 x 45 mm / 200 g |
