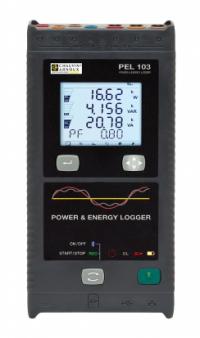

Chauvin Arnoux P01157153 PEL 103 power and energy recorder without current transformer
|
1.805,73 EUR |
|
|
( 2.148,82 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 350654 |
| Mfg Part No: | P01157153 |
| UPC/EAN: | 3760171418109 |
| Weight: | 0.2 kg |
Product information for Chauvin Arnoux P01157153:
Description in English:
The PEL103 data logger is a versatile measurement device designed for optimizing energy consumption, monitoring power quality, and analyzing energy costs. With its compact design and magnetic mount, the device is easy to install in all types of electrical cabinets without interrupting the power supply. It simultaneously records power and energy in single-phase, two-phase, and three-phase networks (with or without a neutral conductor) as well as other electrical installations.The free PEL Transfer software provides an intuitive platform for configuring the device, reading stored data, and displaying and analyzing measurement results. Results can be exported directly to Excel, simplifying data processing. The PEL103 supports multiple communication interfaces, including Bluetooth, Ethernet, and USB, and allows data storage on SD or SD-HC cards up to 32 GB.
Technical Data:
- Voltage: up to 1000 V
- Current: up to 10,000 A
- Voltage/Current transformer ratios: up to 650,000 V / up to 25,000 A
- Power range: 10 W to 10 GW/Gvar/GVA
- Energy measurement: up to 4 EWh / 4 EVAh / 4 Evarh
- Phase measurement: cos φ, tan φ, PF
- Harmonics analysis: up to the 50th order
- Data storage: 8 GB SD card (SD-HC up to 32 GB compatible)
Features:
- Connection without interrupting the power supply
- Real-time data exchange with PC
- Automatic recognition of current transformers
- Supported network types: Single-phase, two-phase, and three-phase networks
- Detailed analysis using the PEL Transfer software
Included Items:
- PEL103 data logger
- 8 GB SD card
- USB cable
- Ethernet cable
- Power adapter
- User manual
- PEL Transfer software
