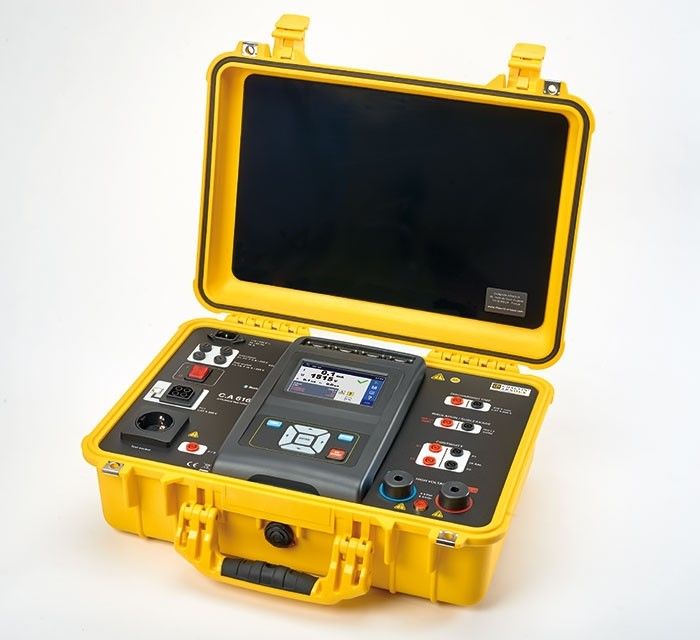

Chauvin Arnoux P01145851 CA 6165 machine tester

Highlights:

• Multifunctional device for electrical safety testing of electrical equipment, machines, and control cabinets per DIN VDE 0113
• User-friendly design with automated test sequences and capacitive color touchscreen
• Comprehensive additional functions: P, Q, S, PF, cosφ, THDU, THDI, U, and I for in-depth testing
• Stores measurement results on a large 32 GB memory card
• Includes MTLink software for easy test report creation in compliance with applicable standards

Description:

Strengths:

• Capacitive color touchscreen for intuitive operation
• Automatic test sequences for efficient workflows
• Stores test results on memory cards up to 32 GB
• High voltage testing: 5 kVAC / 6 kVDC
• Continuity testing: 25 A
• Insulation resistance testing: up to 1,000 V
• Measurements: substitute leakage current, protective conductor current, differential leakage current, and touch current
• External and internal discharge time measurements up to 10 s at 550 V peak
• Functional testing: P (active power), Q (reactive power), S (apparent power), PF (power factor), cos φ, THDU, THDI, U (voltage), and I (current)
• Ports for footswitch, warning lamps, and PC connection
• Compatible with TT, TN, and IT networks at 230 V / 115 V

Description:

The C.A 6165 is a multifunctional tester for comprehensive electrical safety testing of devices, machines, and control panels. It is ideal for conformity certification during final inspections, recurring tests, and maintenance tasks.

All measurements and test sequences required for conformity certification are included:

• Continuity testing with 200 mA, 4 A, 10 A, 25 A
• Leakage current and load current measurement in TRMS
• Voltage and frequency measurement
• Substitute leakage current testing
• Differential current measurement
• Touch current testing
• Protective conductor current testing
• Functional testing with consumption measurement
• Dielectric strength testing (AC/DC)
• Discharge time measurement
• Functional and visual inspections
• Insulation resistance measurement with 50 V, 100 V, 250 V, 500 V, and 1,000 V
• Power measurement (active, reactive, and apparent) and THD (Total Harmonic Distortion)

MTLink Software:

The included PC software MTLink simplifies test evaluation:

• Transfers test results from the device to the PC for archiving and report creation
• Imports test plans from the PC to the device for predefined tests
• Creates and manages automatic test sequences
• Generates detailed test reports
