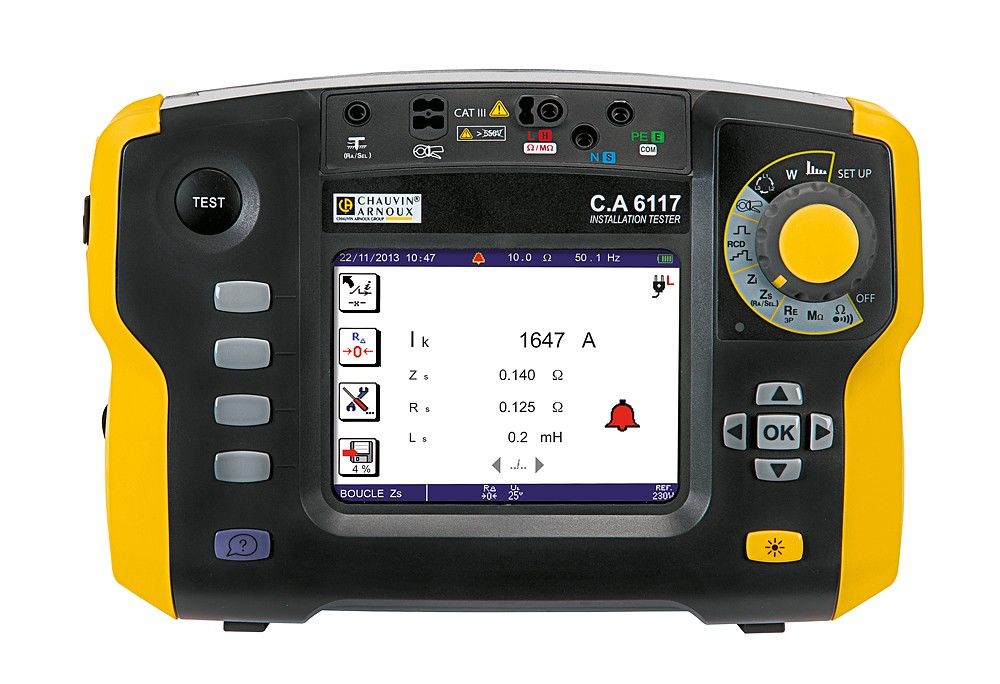

Chauvin Arnoux P01145460F CA 6117 installation tester including DataView software

Highlights:

• Comprehensive multifunctional device with advanced measurement and evaluation functions for demanding electrical installation tests per DIN VDE 0100-600, DIN VDE 0105-100, etc.
• Testing of RCDs / FIs (Types AC, A, B, B+, F, EV) in ramp or pulse mode, with or without tripping
• Powerful lithium-ion battery with up to 30 hours of operation
• Additional measurements: Selective earth resistance with clamp, voltage, current with clamp, power, waveforms, harmonics, voltage drop
• Structured data storage across 3 levels: Location / Room / Object
• Integrated fuse table for loop testing
• Efficient context-sensitive help for each measurement, including connection diagrams and safety warnings

Description:

The C.A 6117 is a versatile universal device for testing electrical installations per national and international standards such as IEC 60364-6, NF C 15-100, VDE 100, and FD C 16-600. It combines modern design, ease of use, high performance, speed, and precision. The device is suitable for all neutral conductor systems (TT, TN, IT) and is widely used in industrial, service, and residential applications.

Ergonomics:

The robust and compact C.A 6117 features a well-thought-out design for quick setup and ease of use. The color LCD graphical display with backlighting provides clear and comprehensive result visualization.
A rotary switch enables direct access to all functions. Audible signals and visual indicators facilitate standard-compliant interpretation of results. Context-sensitive help guides the user step-by-step. The device can store up to 1000 measurements, which can be exported via USB.

Measurement Functions:

The C.A 6117 delivers high stability, even in industrial environments. Supported tests include:

• Continuity testing
• Resistance measurement
• Insulation resistance
• Earth and selective earth resistance
• Loop impedance testing
• Fault current testing (Types A, AC, B, B+, F, EV)
• Voltage, frequency, and current measurement with clamp
• Active power and harmonic analysis
• Rotation direction
• Voltage drop measurement

An integrated fuse module enables testing of Type B RCDs and voltage drop measurements.

Result Analysis:

Measurement data can be analyzed with DataView® software and used to generate reports. DataView® automatically recognizes the device when connected to a PC. Stored data and configurations can be accessed via a tree structure.
Predefined report templates are available and customizable. The integrated ICT software allows rapid data analysis and easy management of stored measurements.

Technical Specifications:

• Power Supply: Lithium-ion battery, up to 30 hours of operation
• Memory: Up to 1000 measurements
• Display: Color LCD graphical display with backlighting
• Measurement Systems: TT, TN, IT
• Standards: IEC 60364-6, NF C 15-100, VDE 100, FD C 16-600
• Interface: USB for data transfer
• Weight: Lightweight and compact for mobile use

Accessories:

Includes carrying case, hand strap, and shoulder strap for hands-free operation.
