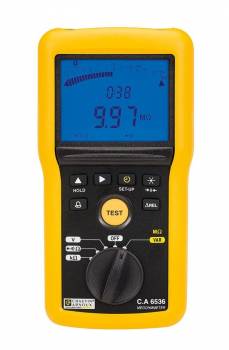

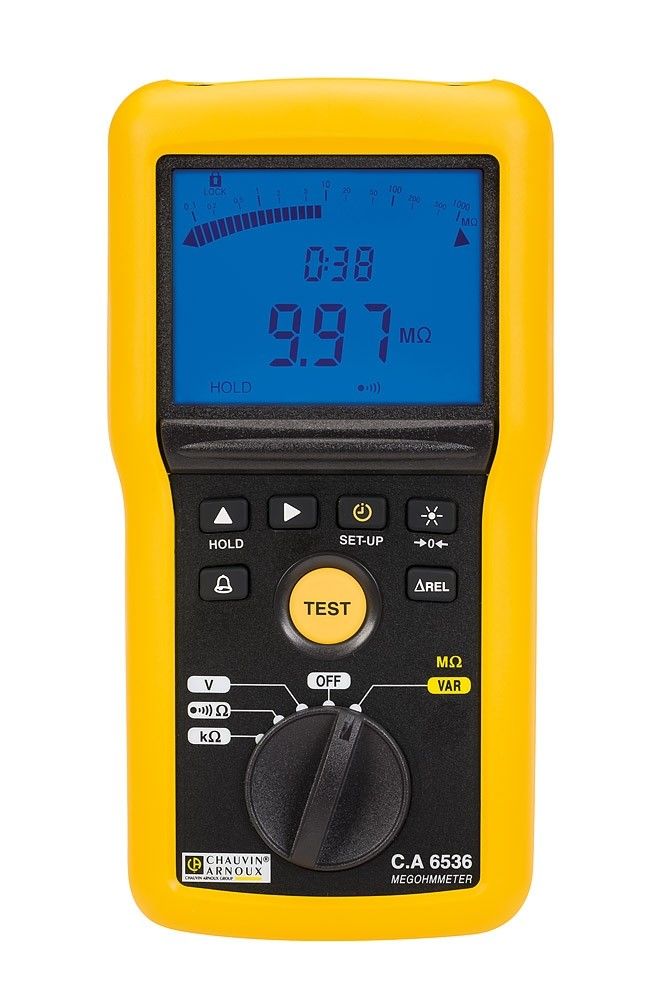

Chauvin Arnoux P01140836 CA 6536 insulation meter
|
841,50 EUR |
|
|
( 1.001,39 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 0 workdaysinfo_outline | |
| Lieske Part No.: | 1927833 |
|---|---|
| Mfg Part No: | P01140836 |
| Weight: | 0.12 kg |
Product information for Chauvin Arnoux P01140836:
Highlights:
• Digital insulation and continuity tester for insulation resistance measurements up to 20 GΩ
• Adjustable test voltage in 1-V increments from 10 V to 100 V for specialized applications (e.g., aerospace, defense)
• Large backlit display with 2x 4000 digits and logarithmic bargraph
• Standard-compliant continuity testing with 200 or 20 mA test current and lead compensation for improved accuracy
• Three test modes: Manual, continuous operation, timer
• Multimeter functions: Voltage (TRMS & DC), resistance
Description:
Strengths:
Insulation and continuity tester for special applications:
– High precision with customizable test voltages in 1-V increments
– Durable and ergonomic design for challenging environments
– Data storage and versatile test modes for efficiency and adaptability
Ergonomics:
– Compact, rugged housing (IP54, IK04) with ergonomic design for ease of use– Magnetic fold-out stand for hands-free operation on metal surfaces
– Large backlit dual digital display with bargraph for precise reading of measurements
– Remote control probe with built-in light for work in dark environments
Insulation Testing:
– Adjustable test voltages from 10 V to 100 V in 1-V increments– Measurement of insulation resistances up to 20 GΩ
– Various test modes: Manual, continuous, timer
Continuity Testing:
– Test currents per IEC 61557: 200 mA or 20 mA for extended battery life– Automatic voltage shutdown for overload protection
Customizable Measurements:
– User-defined alarm thresholds for precise measurement control– ΔREL function to display deviations from reference values
Additional Functions:
– Multimeter capabilities: TRMS voltage measurement up to 700 V, resistance measurement up to 1000 kΩ– Storage capacity for up to 300 measurements
Technical Specifications:
– Test voltage: Adjustable from 10 V to 100 V in 1-V increments– Insulation resistance range: Up to 20 GΩ
– Continuity testing: Test currents 200 mA / 20 mA
– Voltage measurement: Up to 700 V
– Resistance measurement: Up to 1000 kΩ
– Display: Dual digital display + logarithmic bargraph
– Storage capacity: 300 measurements
– Power supply: 6 x LR6 / AA batteries
– Protection rating:(IP54
– Dimensions: 211 x 108 x 60 mm
– Weight: 850 g
– Measurement category: 600 V CAT IV
