Chauvin Arnoux CA 6541 insulation tester content_copy

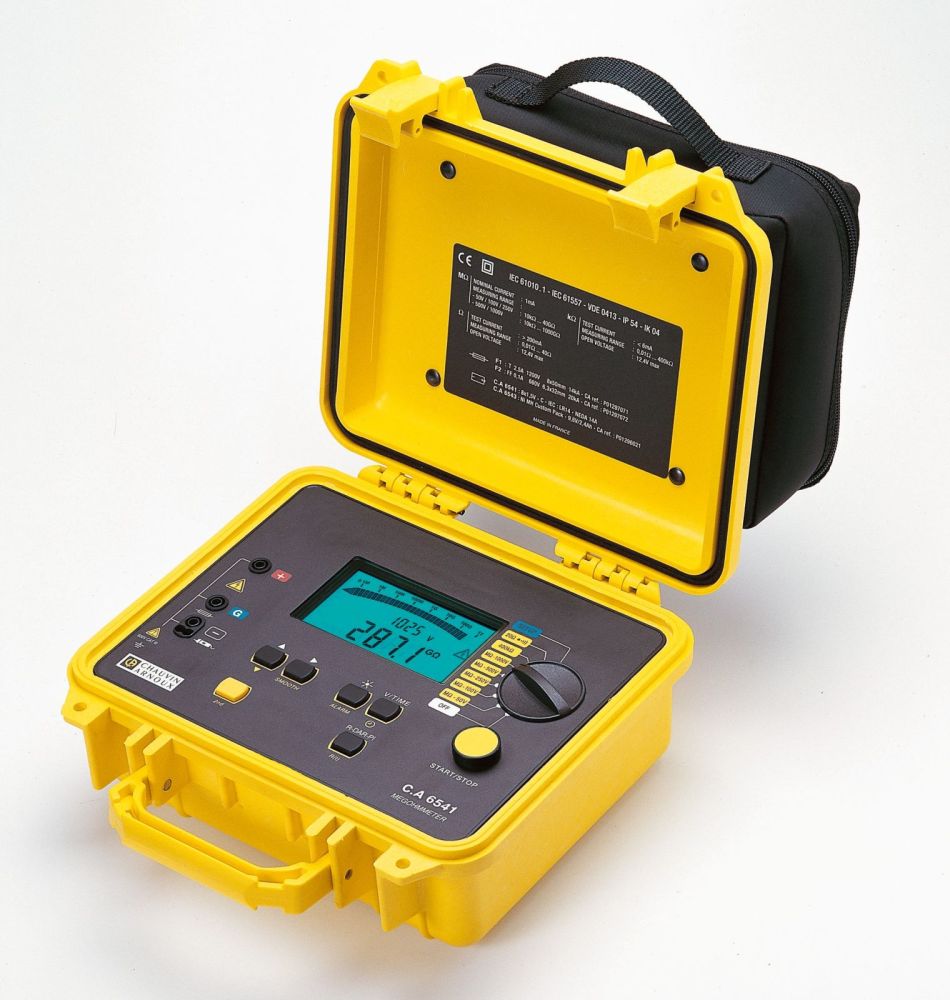

The Chauvin Arnoux CA 6541 is a robust insulation tester designed for use in demanding environments, particularly on construction sites. It is used for testing insulation resistance in electrical installations and equipment, and enables qualitative assessment of insulation quality through automatic calculation of polarization index (PI) and dielectric absorption ratio (DAR). The device is designed for test voltages from 50 V to 1000 V DC and measures insulation resistance up to 4 TΩ, with five different voltage ranges available. Measurement is performed via a microprocessor that processes the results and displays them on a large LCD display with backlighting and bar graph.

Applications
This device is designed for use in electrical installation, machine building, and maintenance of electrical systems. It is particularly suitable for testing in outdoor environments or in uneven, dusty, or damp conditions, as it is designed for use under construction site conditions. The protection class according to IEC 61010 600 V CAT III and IEC 61557 ensures safe operation in electrical installations up to 600 V in category III. The integrated voltage warning indicator and test inhibition above 25 V enhance safety during handling.

Functions and Equipment in Detail
The CA 6541 offers a programmable test duration from 1 to 59 minutes, with measurement values automatically saved. The R(t) curve drawing allows visualization of resistance changes over time, enabling identification of trends in insulation quality. Storage is performed in a 20-kilobyte memory capable of holding up to 20 measurement results. Additionally, after each insulation test, capacitance is automatically measured (0.005 to 4.999 µF). The continuity test measures resistances from 0.01 Ω to 40 Ω and supports line resistance compensation as well as an acoustic signal for quick evaluation.

Technology Explained Simply
Measurement is performed by applying a defined test voltage (50, 100, 250, 500, or 1000 V DC) and measuring the resulting leakage current, from which the insulation resistance is calculated. Accuracy is ±5 % of the value ± 3 digits in the range from 2 kΩ to 40 GΩ, and ±15 % of the value ± 10 digits in the range from 40 GΩ to 4 TΩ. The smoothing function (SMOOTH) reduces display value fluctuations, which is helpful under unstable measurement conditions. Voltage indication is automatically displayed before and after measurement in the range of 1 to 1000 V AC/DC.

Compatibility and Accessories
Compatible accessories include a remote control probe, a continuity test rod, a set of 3 alligator clips, a MN73 CV 2-200/2 clamp, fuses (2.5 A and 100 mA), test probes with 4 mm socket CAT IV and CAT III 1000 V PVC red/black, a C173 CV clamp for fault currents, and a carrying case. These components can be used to extend functionality and ensure safe handling.

Mounting and Installation
The device is designed as a portable measuring instrument and requires no mounting. It is connected directly to the system under test. Power supply is via 8 LR14 batteries, sufficient for up to 21,000 insulation tests of 5 seconds each.

Operational Advantages
The CA 6541 offers high measurement accuracy, comprehensive analysis functions, and high operational safety. The integrated memory function and graphical display of measurement values facilitate documentation and evaluation. Battery operation enables use in locations without power supply. The robust construction and IP53 protection class (according to manufacturer) ensure long service life under harsh conditions. The accessory case, which can be attached to the housing lid, provides space for small tools and cables.

Eigenschaften
Voltage warning indicator	Ja > 25 V
Dimensions / weight	240 x 185 x 110 mm / 3,4 kg

---
