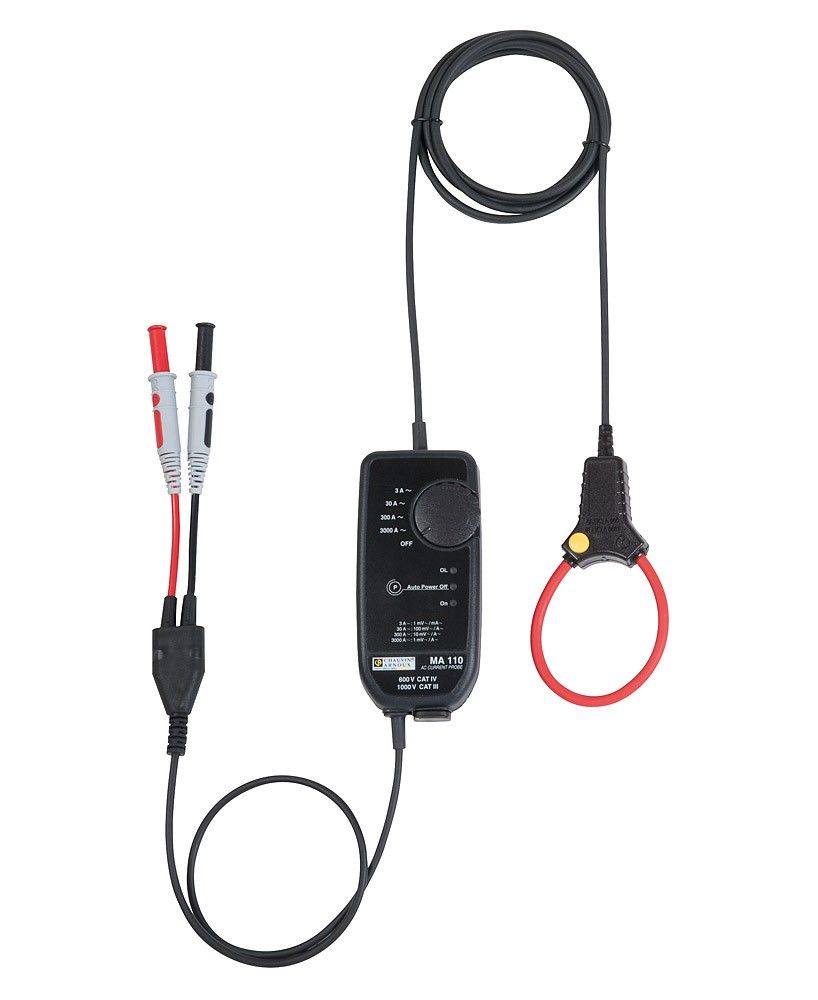

Chauvin Arnoux P01120662
MiniFlex MA110 3-30-300-3000A/3V 350mm
|
522,23 EUR 522,23 EUR |
|||||||||||
|
( 621,45 EUR incl. VAT ) ≈ £449.11 | ≈ $593.77 plus delivery charges: 53,00 € |
|||||||||||
| On order · Delivery time approx. 2 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1927805 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | P01120662 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Chauvin Arnoux P01120662:
Highlights:
- Flexible current transformer with high flexibility for measuring very low to high AC currents with wide bandwidth
- Enclosure Ø: 10 cm, 35 cm circumference
- Input: Measurement range 0.5 A…30 A | 0.5 A…300 A | 0.5 A…3000 A
- Output signal: Alternating voltage
- Transformation ratio: 1 V/A | 100 mV/A | 10 mV/A | 1 mV/A, Typical accuracy: ≤ 1%
- Output: via cable and plug (Ø 4 mm, insulated)
- Bandwidth: 10 Hz…20 kHz
- Suitable for power measurement (low phase shift)
Description:
The MiniFlex® MA110 series includes flexible current loops designed for use in hard-to-reach areas. They can be directly connected to multimeters, wattmeters, or recorders, enhancing their versatility and ease of use.
Thanks to their high flexibility and lightweight design, the loops can easily enclose various types of conductors. With a wide bandwidth of 10 Hz to 20 kHz, they are ideal for industrial applications and harmonic analysis. The low and consistent phase shift ensures precise power measurements without magnetic saturation effects or heating.
Technical Data:
- Measurement ranges: 0.5 A…30 A | 0.5 A…300 A | 0.5 A…3000 A
- Output signal: Alternating voltage
- Transformation ratio: 1 V/A | 100 mV/A | 10 mV/A | 1 mV/A
- Bandwidth: 10 Hz…20 kHz
- Enclosure diameter: 10 cm (additional options: 4.5 cm, 7 cm)
- Loop lengths: 35 cm, 17 cm, 25 cm
- Protection rating: IP67 (loop) / IP67 (housing)
- Power supply: 2 AA batteries or external via µUSB Type B 5V
- Battery runtime: 300 hours
- Safety category: 600 V CAT IV
- Application: AC current measurement, power measurement, harmonic analysis
Included Items:
- Flexible current transformer MiniFlex® MA110
- Connection cable with 2 straight safety banana plugs Ø 4 mm
- User manual
- Batteries (2x AA)
