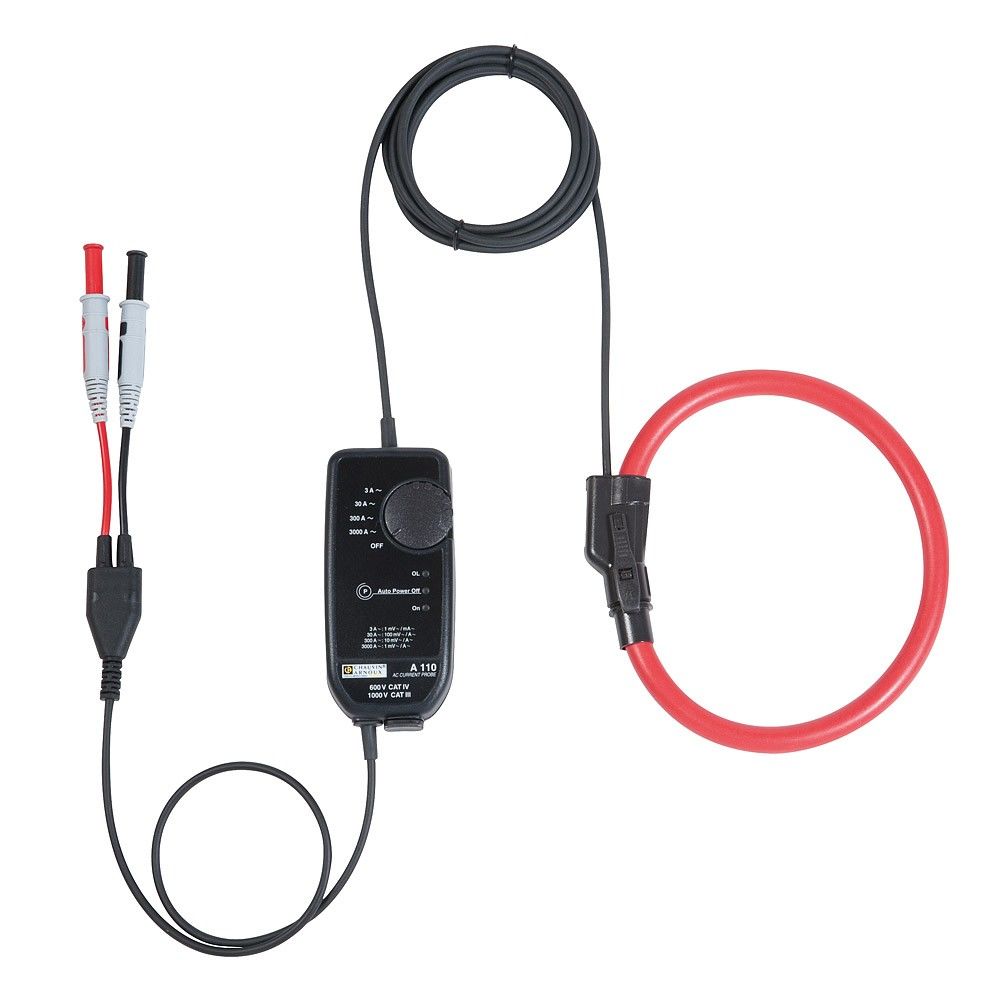

Chauvin Arnoux P01120631 AmpFlex A110 3-30-300-3000A/3V 080cm
|
509,85 EUR |
|
|
( 606,72 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 0 workdaysinfo_outline | |
| Lieske Part No.: | 1927809 |
|---|---|
| Mfg Part No: | P01120631 |
| Weight: | 0.12 kg |
Product information for Chauvin Arnoux P01120631:
Highlights:
- Flexible current transformer with high flexibility for measuring very low to high AC currents with wide bandwidth
- Enclosure Ø: 25 cm, 80 cm circumference
- Input: Measurement range 0.08 A…3 A | 0.5 A…30 A | 0.5 A…300 A | 0.5 A…3000 A
- Output signal: Alternating voltage
- Transformation ratio: 1 V/A | 100 mV/A | 10 mV/A | 1 mV/A, Typical accuracy: ≤ 1%
- Output: via cable and plug (Ø 4 mm, insulated)
- Bandwidth: 10 Hz…20 kHz
- Suitable for power measurement (low phase shift)
Description:
The AmpFlex® A110 series includes highly flexible current transformers designed for current measurements up to 30 kA. These measuring loops connect directly to multimeters, wattmeters, or recorders, offering exceptional versatility and ease of use.
Thanks to their high flexibility and lightweight design, the loops easily enclose conductors of all types, including cables, busbars, or cable bundles. With a bandwidth of 10 Hz to 20 kHz, they are ideal for industrial frequency measurements and harmonic analysis.
The AmpFlex® A110 ensures low and consistent phase shift, enabling precise power measurements. Additionally, it prevents magnetic saturation effects and heating.
Technical Data:
- Measurement ranges: 0.08 A…3 A | 0.5 A…30 A | 0.5 A…300 A | 0.5 A…3000 A
- Output signal: Alternating voltage
- Transformation ratio: 1 V/A | 100 mV/A | 10 mV/A | 1 mV/A
- Bandwidth: 10 Hz…20 kHz
- Enclosure diameter: 25 cm (additional options: 14 cm, 38 cm)
- Loop lengths: 80 cm, 45 cm, 1.20 m
- Protection rating: IP67 (loop) / IP67 (housing)
- Power supply: 2 AA batteries or external via µUSB Type B 5V
- Battery runtime: 300 hours
- Safety category: 1000 V CAT IV
- Application: AC current measurement, power measurement, harmonic analysis
Included Items:
- Flexible current transformer AmpFlex® A110
- Connection cable with 2 straight safety banana plugs Ø 4 mm
- User manual
- Batteries (2x AA)
