Chauvin Arnoux P01120612 CLIMP MH60 CVH for oscilloscopes
|
594,00 EUR |
|
|
( 706,86 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 0 workdaysinfo_outline | |
| Lieske Part No.: | 1927816 |
|---|---|
| Mfg Part No: | P01120612 |
| Weight: | 0.12 kg |
Product information for Chauvin Arnoux P01120612:
Highlights:
- Compact clamp current transformer for measuring very low to medium DC and AC currents
- Enclosure Ø: 26 mm
- Input: Measurement range 0.01 A…140 A peak
- Output signal: DC and AC voltage
- Transformation ratio: 1 A/10 mV, Typical accuracy: ≤ 1.5%
- Output: BNC (coaxial connector)
- With automatic DC zero adjustment
Description:

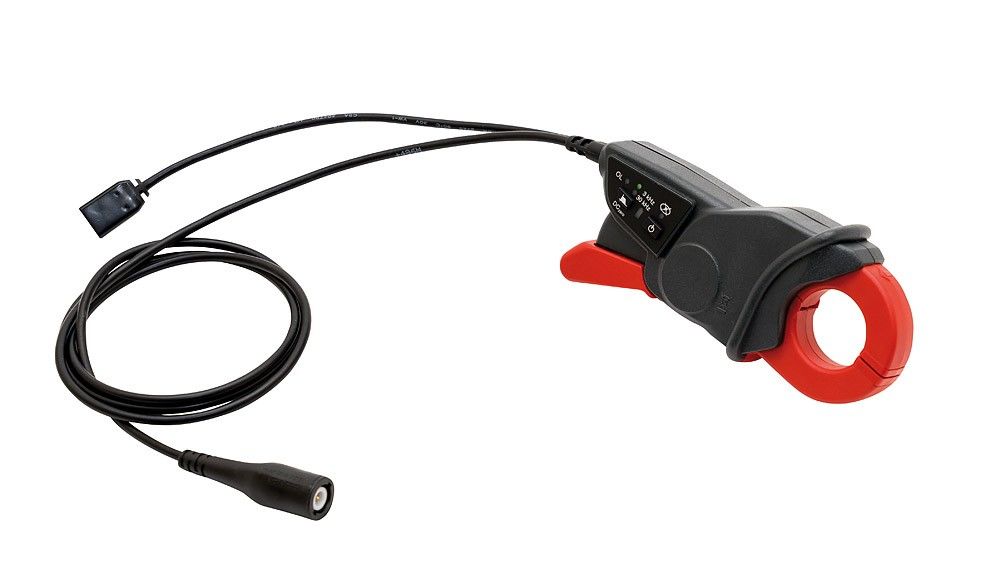

The MH60 current clamp is specifically designed for easy use with oscilloscopes. Simply enclose the conductor, and measure currents up to 100 A with high bandwidth.
Its compact design, with an enclosure diameter of 26 mm, makes the MH60 suitable for a wide range of applications, including power electronics, automotive technology, and the production of electrical equipment.
The MH60 can be powered via a mains adapter or through a fixed µUSB connection cable to an oscilloscope. Additionally, the built-in NiMH battery allows for up to 8 hours of cordless operation.
Technical Data:
- Current range: 10 mA to 100 A AC+DC (140 A peak)
- Output signal: 10 mV/A
- Bandwidth: 1 MHz
- Selectable filters: 30 kHz, 3 kHz
- Enclosure diameter: 26 mm
- Accuracy: ≤ 1.5%
- Output: BNC (coaxial connector)
- Power supply: Mains adapter or fixed µUSB cable
- Battery operation: Up to 8 hours with built-in NiMH battery
Included Items:
- Current clamp model MH60
- Mains adapter
- User manual
