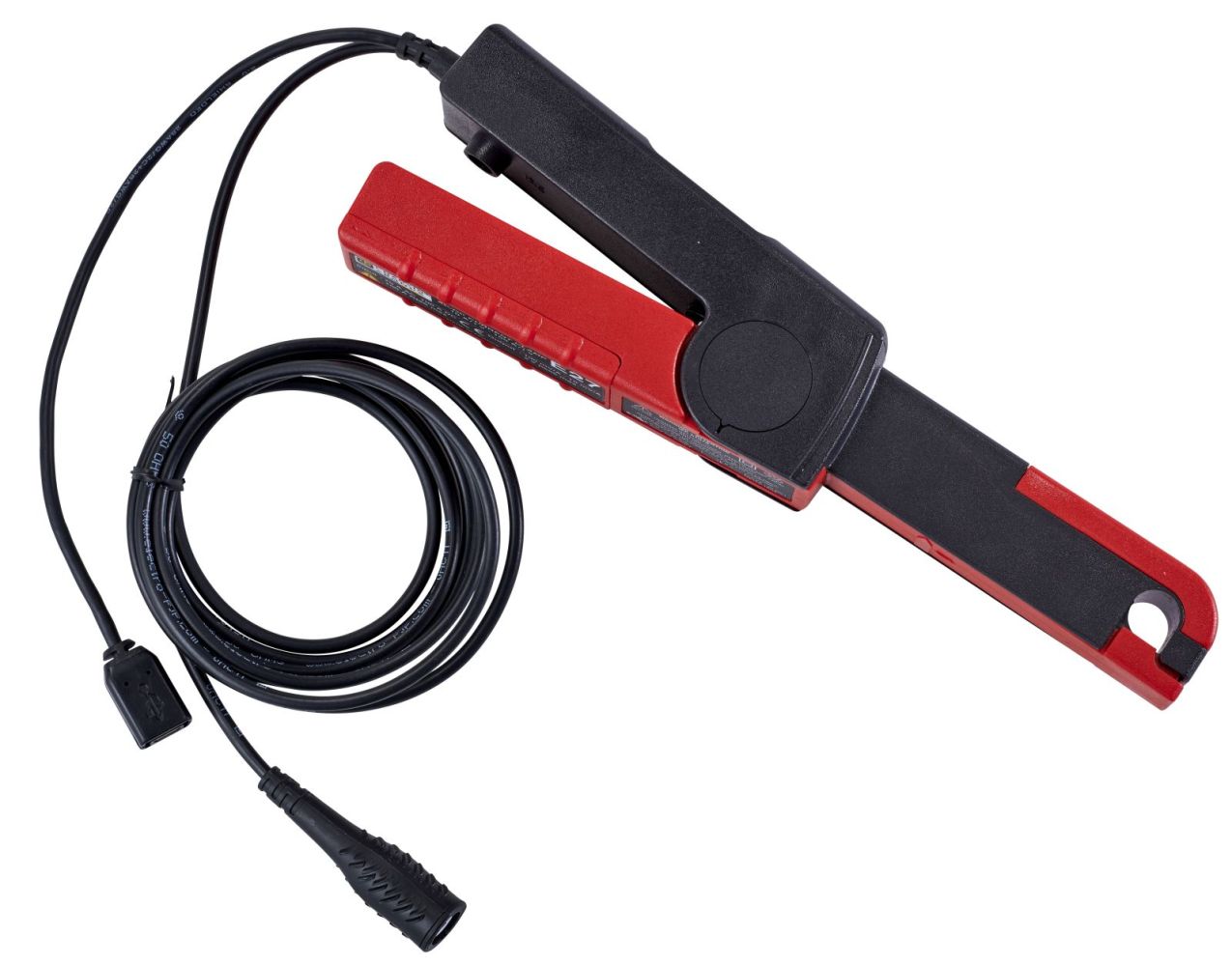

Chauvin Arnoux P01120027 Clamp E27 CVH for oscilloscopes
|
405,90 EUR |
|||||||||||
|
( 483,02 EUR incl. VAT ) ≈ £338.52 | ≈ $453.39 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1142479 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | P01120027 | ||||||||||
| UPC/EAN: | 3663653007757 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Chauvin Arnoux P01120027:
The E27 Insulated AC/DC Current Probe from Chauvin Arnoux is a current clamp designed for use with oscilloscopes, intended for measuring alternating and direct current in electrical circuits. The device enables non-invasive current measurement within a frequency range up to 100 kHz and is rated for maximum currents of 100 Ampere. The current probe is designed for use in electrical installations with voltage categories CAT III up to 600 V and CAT IV up to 300 V, making it suitable for measurements in industrial and commercial environments. The insulation ensures safe operation at high voltages and protects the user from electrical hazards.
Applications
The current probe E27 is particularly suitable for measuring AC and DC current in electrical installations, for example in the maintenance, servicing, and diagnosis of machines, drive systems, lighting installations, or industrial controls. Due to its high frequency bandwidth up to 100 kHz, it is also suitable for analyzing switching operations, pulse width modulation, or transient current waveforms. The combination with an oscilloscope enables the temporal representation of the current waveform, which is advantageous for troubleshooting and performance analysis.
Functions and Equipment in Detail
The current probe features a sensitivity of 100 to 10 mV per 1 Ampere, enabling precise current measurement. The sensitivity can be adjusted according to application and measurement range, with values ranging from 100 mV/A to 10 mV/A. The clamp has an opening with a diameter of 11.8 mm, sufficient to accommodate cables of corresponding diameter. The current probe is powered either by batteries or via an external 5-volt source, enabling flexible use in various environments.
Technology Explained Simply
The current probe operates based on the principle of magnetic induction. When current flows through a conductor cable, it generates a magnetic field, which is detected by the measuring clamp. The probe converts this magnetic field into a proportional electrical signal, which is then transmitted to an oscilloscope. The insulation of the probe protects the user and the measuring device from dangerous voltages. The frequency bandwidth of 100 kHz enables the capture of fast current waveforms, which occur in modern electronic circuits. The current probe is designed for operation in environments with voltage categories CAT III/600 V and CAT IV/300 V, ensuring safe measurement in industrial installations.
Compatibility and Accessories
The current probe is specifically designed for use with oscilloscopes. It features a BNC connector, which is standard on oscilloscopes. The current probe can be connected to various oscilloscopes, provided they have a BNC input. The current probe is not compatible with other measuring instruments such as multimeters or clamp meters, as it was specifically developed for use with oscilloscopes.
Mounting and Installation
The mounting of the current probe is done by simply opening the clamp, inserting the conductor to be measured into the opening, and closing the clamp. The current probe is directly connected to the oscilloscope by inserting the BNC plug into the corresponding input. The current probe requires no additional mounting or installation.
Advantages in Operation
The current probe E27 offers high measurement accuracy and a wide frequency bandwidth, making it suitable for analyzing current waveforms in complex electrical systems. The insulation protects the user and the measuring device from dangerous voltages. The flexible power supply enables use in various environments, whether with batteries or an external voltage source. The combination with an oscilloscope enables detailed analysis of the current waveform in the time domain, which is beneficial for troubleshooting and performance monitoring. The current probe is compact and easy to handle, facilitating measurements in tight or hard-to-reach areas.
Note: Batteries are not included in the delivery scope.
Applications
The current probe E27 is particularly suitable for measuring AC and DC current in electrical installations, for example in the maintenance, servicing, and diagnosis of machines, drive systems, lighting installations, or industrial controls. Due to its high frequency bandwidth up to 100 kHz, it is also suitable for analyzing switching operations, pulse width modulation, or transient current waveforms. The combination with an oscilloscope enables the temporal representation of the current waveform, which is advantageous for troubleshooting and performance analysis.
Functions and Equipment in Detail
The current probe features a sensitivity of 100 to 10 mV per 1 Ampere, enabling precise current measurement. The sensitivity can be adjusted according to application and measurement range, with values ranging from 100 mV/A to 10 mV/A. The clamp has an opening with a diameter of 11.8 mm, sufficient to accommodate cables of corresponding diameter. The current probe is powered either by batteries or via an external 5-volt source, enabling flexible use in various environments.
Technology Explained Simply
The current probe operates based on the principle of magnetic induction. When current flows through a conductor cable, it generates a magnetic field, which is detected by the measuring clamp. The probe converts this magnetic field into a proportional electrical signal, which is then transmitted to an oscilloscope. The insulation of the probe protects the user and the measuring device from dangerous voltages. The frequency bandwidth of 100 kHz enables the capture of fast current waveforms, which occur in modern electronic circuits. The current probe is designed for operation in environments with voltage categories CAT III/600 V and CAT IV/300 V, ensuring safe measurement in industrial installations.
Compatibility and Accessories
The current probe is specifically designed for use with oscilloscopes. It features a BNC connector, which is standard on oscilloscopes. The current probe can be connected to various oscilloscopes, provided they have a BNC input. The current probe is not compatible with other measuring instruments such as multimeters or clamp meters, as it was specifically developed for use with oscilloscopes.
Mounting and Installation
The mounting of the current probe is done by simply opening the clamp, inserting the conductor to be measured into the opening, and closing the clamp. The current probe is directly connected to the oscilloscope by inserting the BNC plug into the corresponding input. The current probe requires no additional mounting or installation.
Advantages in Operation
The current probe E27 offers high measurement accuracy and a wide frequency bandwidth, making it suitable for analyzing current waveforms in complex electrical systems. The insulation protects the user and the measuring device from dangerous voltages. The flexible power supply enables use in various environments, whether with batteries or an external voltage source. The combination with an oscilloscope enables detailed analysis of the current waveform in the time domain, which is beneficial for troubleshooting and performance monitoring. The current probe is compact and easy to handle, facilitating measurements in tight or hard-to-reach areas.
Note: Batteries are not included in the delivery scope.
| General | |
| Sensitivity | 100-10 mV/A |
Questions & answers
What is the delivery time of Chauvin Arnoux P01120027 Clamp E27 CVH for oscilloscopes?
The article Chauvin Arnoux P01120027 Clamp E27 CVH for oscilloscopes is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Chauvin Arnoux P01120027 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Chauvin Arnoux P01120027 Clamp E27 CVH for oscilloscopes always at the best possible price. We can give you a discount of 2% on Chauvin Arnoux P01120027 Clamp E27 CVH for oscilloscopes if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Chauvin Arnoux P01120027 Clamp E27 CVH for oscilloscopes we can offer you a price of 402,86 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
