Chauvin Arnoux P01102173 Accessories for continuity testing content_copy

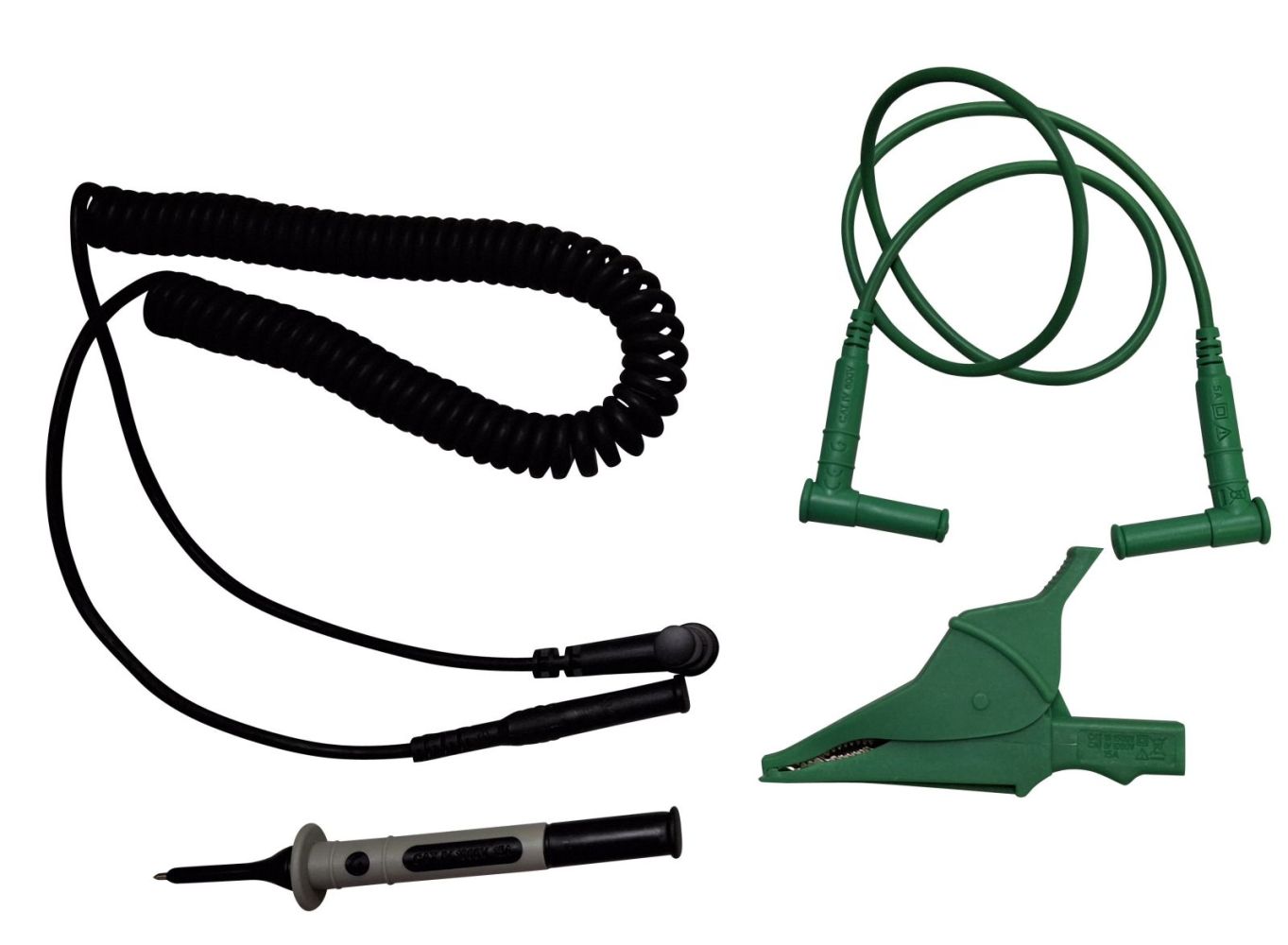

This accessory set for continuity testing from Chauvin Arnoux is specifically designed for use with the continuity tester model CA 6011. It serves as replacement or supplementary accessory and enables the performance of electrical continuity tests in electrical installation technology. The set consists of four components designed for safe and precise measurement: a black spiral cable, a green crocodile clip, a black test probe, and a green test lead with a length of 0.50 m. All parts are made of PVC, ensuring high mechanical stability and resistance to environmental influences.

Applications
This accessory set is primarily intended for professionals in the field of electrical installation and maintenance who regularly perform continuity tests on electrical systems, devices, or switchgear. It checks whether electrical conductors or contacts are connected, i.e., whether an electrical continuity exists. Using this set ensures reliable and reproducible measurements, especially when testing switchboxes, sockets, switches, or other electrical components.

Functions and Equipment in Detail
The set includes a black spiral cable, which, due to its spiral structure, offers high flexibility and mobility without twisting. The green crocodile clip enables a secure and stable connection to terminals or conductors, with the color green commonly used in electrical engineering for protective conductors or grounding. The black test probe is designed for precise contact with connection points, especially in tight or hard-to-reach areas. The green test lead with a length of 0.50 m provides sufficient mobility for testing in confined spaces, such as in enclosures or device housings.

Technology Explained Simply
The components of the set are designed to meet safety and accuracy requirements for continuity testing. The PVC material provides insulation and protects the user from electrical contact hazards. The combination of spiral cable and test lead allows for flexible handling, with the crocodile clip ensuring a firm connection and the test probe enabling precise contact. The test lead length of 0.50 m is sufficient for typical testing situations in electrical work without being unnecessarily long.

Compatibility and Accessories
The accessory set is specifically developed for the continuity tester CA 6011 and replaces the original accessory supplied with the device. It is not intended for other devices unless technical requirements and connection types match. The components are not designed for other testing procedures such as insulation measurements or voltage measurements.

Installation and Mounting
Installation is done by simply connecting the components to the CA 6011 tester. The crocodile clip is attached to the conductor or contact to be tested, and the test probe is placed at the second point to check for electrical continuity. The test lead is connected to the corresponding terminal on the testing device. No additional tools or mounting procedures are required.

Operational Advantages
Using this accessory set ensures fast and safe performance of continuity tests. The robust design of the components ensures long service life and reliable function. The clear color coding (green for grounding, black for conductors) supports correct assignment and reduces the risk of errors during testing. The combination of spiral cable and test lead offers optimal handling in various application scenarios.
