Chauvin Arnoux P01102103 Set of test leads for CA 6630

Your rating:
Average rating
product review for Chauvin Arnoux P01102103 Set of test leads for CA 6630
( 4.5 / 5 ) 18 ratings

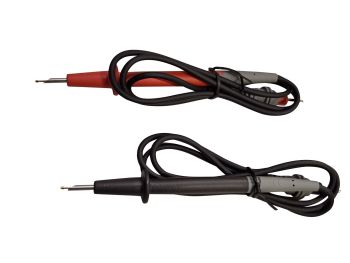

Chauvin Arnoux P01102103
This image may differ from the desired article.
59,78 EUR
( 71,14 EUR incl. VAT )
≈ £49.80  |  ≈ $65.58
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Chauvin Arnoux P01102103 Set of test leads for CA 6630
Lieske Part No.:815526
Mfg Part No: P01102103
UPC/EAN: 3663653005128
Weight:0.2 kg
Graduated prices net
From piecesPrice per pieces
659,33 EUR
1258,88 EUR
2458,43 EUR
3657,99 EUR

Product information for Chauvin Arnoux P01102103:

The MINI 102 current clamp transformer from Chauvin Arnoux is a compact measuring accessory for precise alternating current measurement in applications with low to medium power in commercial and industrial environments. It is particularly suitable for use in confined spaces, where a small clamping diameter of up to 16 mm offers advantages. The device is used as an accessory for multimeters to measure current consumption in electrical conductors without interrupting the power supply.

Applications
The MINI 102 is designed for measuring alternating currents in the range of 0.05 A to 200 A AC. It is used in maintenance, servicing, and diagnostics of electrical installations, particularly in areas where small conductors or limited space are present. The combination of compact design and high measurement accuracy makes it a suitable tool for technical inspections in electrical installation and machine building.

Functions and Equipment in Detail
The current clamp transformer operates on the principle of a current transformer, in which the current to be measured is enclosed by a clamp that functions as the primary winding. The secondary winding inside the device generates a proportional output signal, which is transmitted via a cable with an insulated 4-mm plug. The turns ratio is 1000/1, meaning that a current of 200 A at the input produces an output signal of 0.2 A. Typical accuracy is ≤ 1 %, which is sufficient for precise measurements in technical applications.

Technology Explained Simply
The device converts the primary alternating current into a proportional, smaller alternating current signal that can be evaluated by a multimeter or other measuring instrument. The integrated overvoltage protection at the output protects the device and the connected measuring instrument if voltage is present when disconnecting from the enclosed conductor. This increases safety and extends the service life of the current clamp transformer.

Compatibility and Accessories
The MINI 102 is designed as an accessory for multimeters that have a corresponding input for 4-mm plugs. The connection is made via the included cable with an insulated plug. Exact compatibility depends on the connection options of the respective multimeter, although standardization of the 4-mm plug enables broad usability.

Installation and Mounting
Installation is performed by simply clamping the conductor to be measured with the clamp. No additional mounting or tools are required. The clamp can be positioned directly on the conductor, taking into account the maximum clamping diameter of 16 mm. Connection to the measuring device is made via the cable with the 4-mm plug.

Operational Advantages
The MINI 102 offers high measurement accuracy in a compact design, making it particularly suitable for use in confined spaces. The integrated overvoltage protection increases safety and extends service life. The simple operation without tools and direct connection to the measuring device simplifies daily work in technical operations.

Scope of Delivery
The scope of delivery includes the MINI 102 current clamp transformer and the operating instructions.

General
Enclosure diameter16 mm
Measuring range0.05 to 200 A AC
Output signalAlternating current
Gear ratio1000/1
Typical accuracy≤ 1 %
OutputCable with 4 mm plug (insulated)
ProtectionOvervoltage protection at output


Questions & answers

What is the delivery time of Chauvin Arnoux P01102103 Set of test leads for CA 6630?

The article Chauvin Arnoux P01102103 Set of test leads for CA 6630 is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Chauvin Arnoux P01102103 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Chauvin Arnoux P01102103 Set of test leads for CA 6630 always at the best possible price. We can give you a discount of 2% on Chauvin Arnoux P01102103 Set of test leads for CA 6630 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Chauvin Arnoux P01102103 Set of test leads for CA 6630 we can offer you a price of 59,33 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
