Chauvin Arnoux P01101847 Set of 2 adapters BNC plug/4mm plug

Your rating:
Average rating
product review for Chauvin Arnoux P01101847 Set of 2 adapters BNC plug/4mm plug
( 4.7 / 5 ) 9 ratings

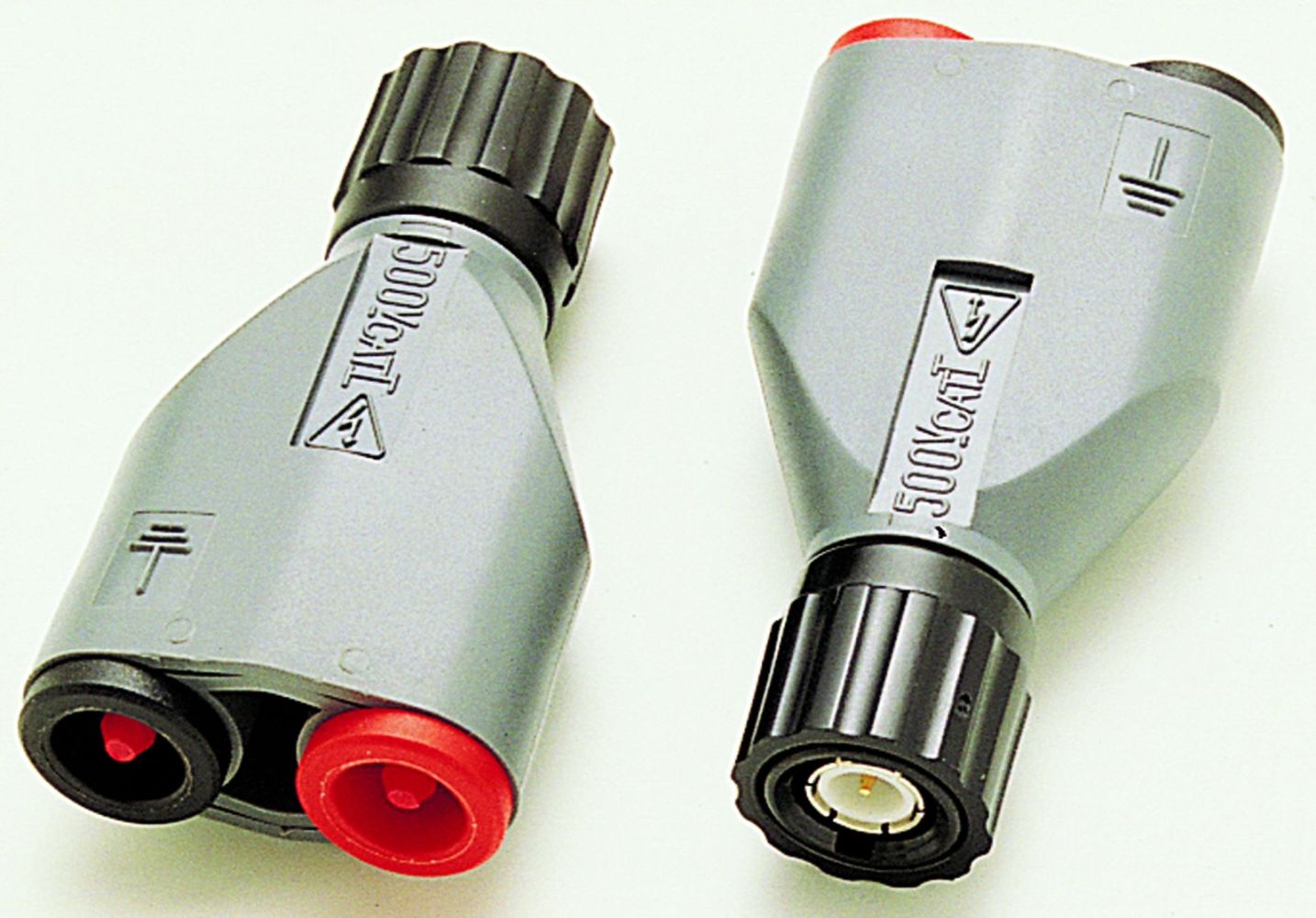

Chauvin Arnoux P01101847
This image may differ from the desired article.
98,00 EUR
( 116,62 EUR incl. VAT )
≈ £81.63  |  ≈ $107.51
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Chauvin Arnoux P01101847 Set of 2 adapters BNC plug/4mm plug
Lieske Part No.:970767
Mfg Part No: P01101847
UPC/EAN: 3760171411889
Weight:0.2 kg
Graduated prices net
From piecesPrice per pieces
697,27 EUR
1296,53 EUR
2495,80 EUR
3695,06 EUR

Product information for Chauvin Arnoux P01101847:

The BNC safety plug from Chauvin Arnoux is an adapter for measuring and testing equipment, specifically developed for use in technical and laboratory environments. It serves as an interface between BNC connectors and 4-mm banana plugs, with the colours red and black used to distinguish between conductors. The construction ensures a secure and reliable connection, particularly when working with oscilloscopes or other measuring devices that use BNC inputs. The insulated 4-mm plugs enable safe contact, while the 19 mm spacing between connectors ensures proper placement and prevents short circuits.

Applications
This plug is intended for use in measuring and testing environments, particularly in laboratory settings and for mobile measurement tasks. It is suitable for connecting BNC plug connections to devices equipped with 4-mm banana plugs, such as multimeters, oscilloscopes, or other measuring instruments. Outdoor use is supported by the robust design and safety categories.

Functions and Features in Detail
The BNC safety plug features an insulated diameter of 4 mm, ensuring safe handling and preventing contact hazards. The colour coding in red and black supports the identification of positive and negative poles or signal and ground conductors. Installation is simple and requires no additional tools, enabling quick and secure setup. High manufacturing quality ensures a stable electrical connection.

Technology Explained Simply
The plug is designed as a BNC-banana adapter, where BNC stands for Bayonet Nut Connector, a widely used connector in measurement technology. 4-mm banana plugs are standard in many measuring devices. The insulation of the 4-mm plug protects against unintended contact. The voltage rating of 500 V in CAT I and 150 V in CAT III ensures safe operation in corresponding environments. CAT I refers to protected indoor areas without direct connection to mains voltage, while CAT III refers to installations near distribution boards or in industrial facilities. These categories are critical for safety when measuring electrical quantities.

Compatibility and Accessories
The BNC safety plug is compatible with devices featuring BNC inputs and 4-mm banana plug connectors. It is commonly used in conjunction with oscilloscopes, multimeters, or other measuring devices. Use in combination with other BNC accessories such as extension cables or branch distributors is possible, provided the connectors are compatible. The red and black colours facilitate identification in complex measurement setups.

Mounting and Installation
Installation is done by simply inserting the plug into the BNC connector of the device and then connecting it to a 4-mm banana plug cable. No additional tools or mounting aids are required. The design ensures a secure and stable connection that remains intact even during movement.

Operational Advantages
Using the BNC safety plug enables flexible and secure connections between various measuring devices. The colour coding and insulation enhance safety during operation. The voltage ratings in CAT I and CAT III categories extend the range of applications in different technical environments. Simple installation and robust construction ensure reliable performance in daily use.

Contents: 1x BNC safety plug red, 1x BNC safety plug black.

General
ColoursRed and black
Diameter4 mm
Distance19 mm
Voltage withstand500 V CAT I, 150 V CAT III
Application rangeTest and measurement instruments
MountingSingle
InsulationYes


Questions & answers

What is the delivery time of Chauvin Arnoux P01101847 Set of 2 adapters BNC plug/4mm plug?

The article Chauvin Arnoux P01101847 Set of 2 adapters BNC plug/4mm plug is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Chauvin Arnoux P01101847 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Chauvin Arnoux P01101847 Set of 2 adapters BNC plug/4mm plug always at the best possible price. We can give you a discount of 2% on Chauvin Arnoux P01101847 Set of 2 adapters BNC plug/4mm plug if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Chauvin Arnoux P01101847 Set of 2 adapters BNC plug/4mm plug we can offer you a price of 97,27 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
