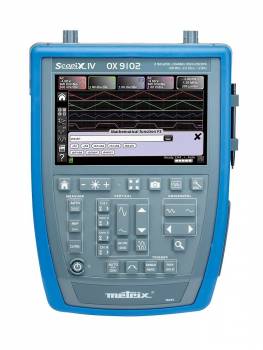

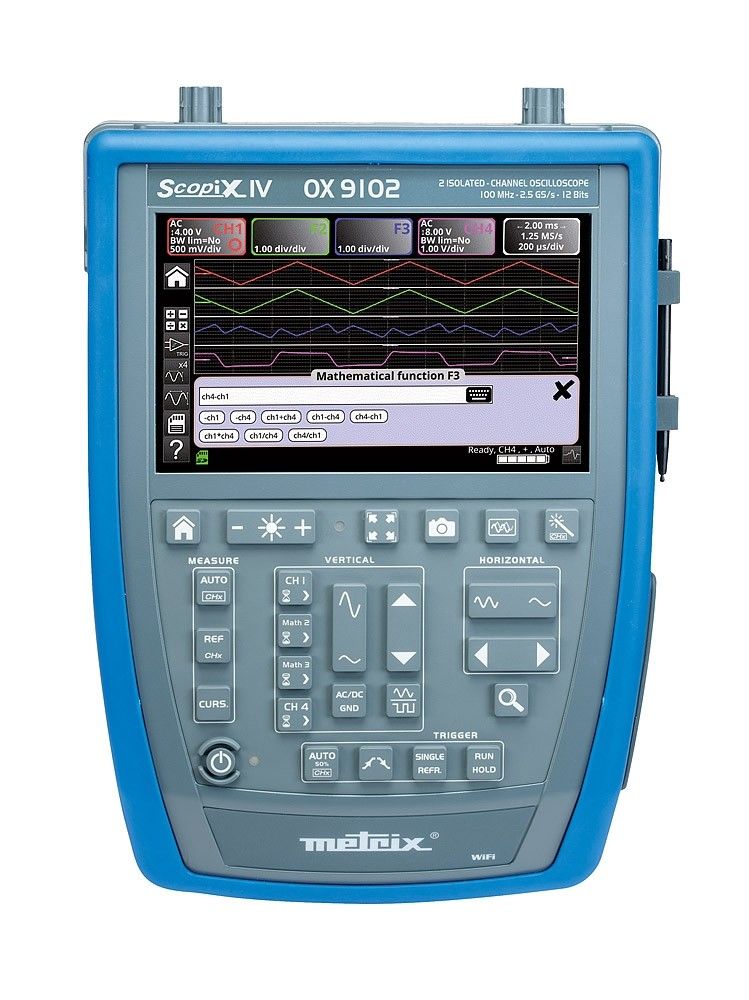

Chauvin Arnoux OX9102 OX 9102 Portable Oscilloscope 2 x 100 MHz
|
3.718,69 EUR |
|
|
( 4.425,24 EUR incl. VAT ) plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 0 workdaysinfo_outline | |
| Lieske Part No.: | 1927977 |
|---|---|
| Mfg Part No: | OX9102 |
| Weight: | 0.12 kg |
Product information for Chauvin Arnoux OX9102:
Highlights:
• Modern, portable oscilloscope with 2 isolated channels and 100 MHz bandwidth
• 4-in-1 device: Oscilloscope, multimeter, harmonic analyzer, recorder
• High safety: Channels isolated from each other and ground
• Large color touchscreen with optimized keypad for user comfort
• Versatile oscilloscope functions: complex triggering, automatic measurements, MATH, FFT, etc.
• Advanced communication interfaces: Ethernet, WiFi, USB
• ScopeNet software for data transfer and PC analysis
Description:
Strengths:
Functions as an oscilloscope, multimeter, analyzer, and recorder, displaying stored data directly on the screen. High safety with channels isolated from each other and ground, compatible with 600 V CAT III & PROBIX accessories.
The OX 9102 is a portable, standalone digital oscilloscope from the SCOPIX IV series, featuring 2 fully isolated channels up to 600 V and 100 MHz bandwidth, allowing extensive signal recording with a 100 KPoints memory depth per channel.
User Comfort:
Equipped with a 7″ WVGA TFT color touchscreen for excellent readability, illuminated menus in 13 languages, and an optimized keypad and case design for comfort.Features:
The OX 9102 offers comprehensive functions, including a 12-bit A/D converter with 0.025% vertical resolution. Advanced triggering and 20 automatic measurements per channel, as well as cursor measurements, are supported. Extended MATH functions and real-time FFT analysis enable detailed signal checks.The multimeter mode supports TRMS measurements up to 200 kHz with 8000 digits, component tests, and a recorder function with automatic graphical signal recordings.
The harmonic analyzer identifies harmonics up to the 63rd order. Print and export options for screen captures and data are included.
Technical Details:
• 25 direct command buttons• Sampling rate: 2.5 GS/s (SingleShot), up to 100 GS/s (ETS mode)
• Battery life: up to 8 hours; quick recharge in 2 hours
• Connectivity: Ethernet/WiFi/USB/µSD
• Storage: µSD card (>32 GB) + internal storage (2 GB)
• PROBIX accessories for quick and secure configuration
• Delivered with a carrying case and accessories
