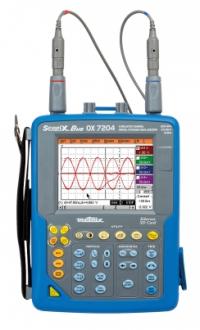

Chauvin Arnoux OX7204-BUS PORTABLE SCOPE 4X200MHZ 2,5GS COLOR BUS

Description
Scopix III-BUS is a stand-alone oscilloscope with 4 totally-isolated 600 V channels with 200 MHz bandwidth. It is now equipped with an extended 50k memory (option), considerably increasing the recording durations available.


OSCILLOSCOPE + MULTIMETER + RECORDER + FIELDBUS ANALYSER
Ergonomic: 14,5 cm ( 5,7 inch ) TFT monochrome or colour touch screen with backlighting for easier reading,
Control: 33 direct command keys / Windows-like menus / touch screen.

Rich with original functions, like the whole SCOPIX range, the OX 7204-BUS four-channel 200 MHz digital oscilloscope, a multi-instrument with a minimum footprint, provides outstanding performance, thanks in particular to its 12-bit / 2.5 GS/s converter.
In addition to its advanced triggering functions (pulse width, count, delay, TV), SCOPIX III offers triggering and automatic storage of faults on the basis of the measurement thresholds.


This OSCILLOSCOPE also has MATH functions which can be used to define, for each trace, a mathematical function and a vertical scale with the definition of the true physical unit.
Thanks to FFT, the qualitative analysis of harmonics, signal distortion and pulse response, and the investigation of noise sources in logic circuits lead to effective diagnostics.
The multi-channel TRMS digital MULTIMETER - 8,000 counts, 200 kHz - measures amplitudes, resistances, continuity, capacitances, frequencies and temperatures, and performs tests on components. It includes a recorder with windows from 5 min to 24 hours.
The 2-CHANNEL PHYSICAL FIELDBUS ANALYSER for testing the physical integrity of the main fieldbuses: verification of transmission quality according to the applicable standards.
The 4-channel DIGITAL RECORDER (optional) allows acquisition intervals of 500µs between 2 measurements, for records that can extend over 1 month, based on the monitoring of tolerance thresholds in particular.
2-hour fast charging; battery life up to 8 hours
The patented PROBIX plug-and-play system of accessories ensures rapid implementation of the instrument, with no risk of error. The sensor coefficients, scales, and units and the configurations of the channels are managed automatically; the probes and adapters are recognized as soon as they are connected .

Multi-interface communication: RS232/USB and the Ethernet interface with ScopeNet web server (except in BUS mode) make it possible to take control of the instrument remotely, and to transfer curves and screen shots without additional software.
Whatever your internet browser, you can dialogue with SCOPIX via its built-in ScopeNet web server
A ScopeNet ANDROID application is available from Google Store.


Full information, photos and documentation available at
www.chauvin-arnoux/scopix.com
