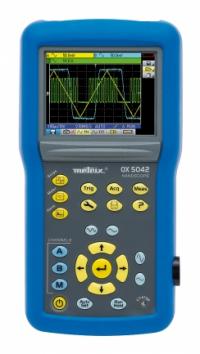

Chauvin Arnoux OX5042-CK OX5042 MANUAL SCOPE 2x40 MHz - Set
|
1.736,33 EUR |
|||||||||||
|
( 2.066,23 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 433777 | ||||||||||
| Mfg Part No: | OX5042-CK | ||||||||||
| UPC/EAN: | 3760171417744 | ||||||||||
| Weight: | 0.2 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Chauvin Arnoux OX5042-CK:
Highlights:
• Modern, portable oscilloscope with 2 isolated channels and 60 MHz bandwidth
• 4 devices in one: Oscilloscope, multimeter, harmonic analyzer, recorder
• High safety: Channels isolated from each other and ground
• Large color touchscreen with optimized keypad for enhanced user comfort
• Versatile oscilloscope functions: Complex triggering, automatic measurements, MATH, FFT, …
• Advanced communication interfaces: Ethernet, Wi-Fi, USB
• ScopeNet software for data transfer and PC analysis
Description:
Strengths:
Functions as an oscilloscope, multimeter, analyzer, recorder, and displays stored data directly on-screen. Safety: channels isolated from each other and ground, 600 V CAT III & PROBIX accessories.
The OX 9062 is a portable, battery-powered digital oscilloscope from the SCOPIX IV series featuring 2 fully isolated channels up to 600 V and a 60 MHz bandwidth. Each channel supports 100 KPoints of memory for extensive signal recording.
User Comfort:
The 7″ WVGA TFT color touchscreen, with a black background, ensures superior readability. The menus are available in 13 languages, and the SCOPIX IV’s design prioritizes optimal user experience.Functionality:
The dual-channel digital oscilloscope OX 9062, like the entire SCOPIX IV series, boasts a comprehensive feature set in a compact form. The 12-bit A/D converter provides a vertical resolution of 0.025%. With advanced triggering, 20 automatic measurements per channel, and cursor measurement, detailed signal analysis is straightforward.The real-time FFT analysis for both waveforms and harmonic analysis help identify distortions and noise sources. The TRMS multimeter feature supports measurements up to 200 kHz and 8000 digits, covering amplitude, resistance, continuity, capacitance, frequency, and temperature.
Recorder and data logger modes allow automatic signal recordings with timestamps. Screen copies and printouts are available in all modes.
Technical Details:
- 25 direct command keys
- Sampling rate: 2.5 GS/s (SingleShot), 100 GS/s (ETS)
- Battery operation up to 8 hours, 2-hour recharge
- Networking: Ethernet/Wi-Fi/USB/µSD
- µSD capacity over 32 GB, internal memory 2 GB
- PROBIX plug-and-play accessories for rapid deployment
- Complete with carrying case and measurement accessories
