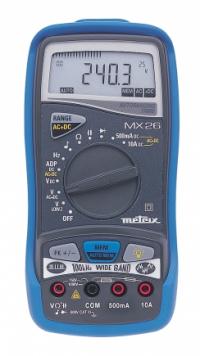

Chauvin Arnoux MX0026-G MX 26 + Shockproof
|
342,79 EUR |
|||||||||||
|
( 407,92 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 826500 | ||||||||||
| Mfg Part No: | MX0026-G | ||||||||||
| Weight: | 0.2 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Chauvin Arnoux MX0026-G:
Highlights:
• Simple and efficient AC+DC-TRMS benchtop multimeter with 100 kHz bandwidth and 6,000-digit display
• Stable readings with VLowZ measurement range to suppress ghost voltages
• Reliable measurements for speed controllers with a 300 Hz PWM filter
• Monitoring of measurements using MIN, MAX, and PEAK functions
• Data recording possible with optional SX-DMM2 software on a PC
• Optimized safety: Double insulation according to IEC 61010, 1000 V CAT III
• Basic functions: VLowZ, V AC, V AC+DC, frequency, capacitance, resistance, continuity, temperature, current, diode test
Description:
The MX5006 TRMS benchtop multimeter is housed in a practical, lightweight, and compact design with a tiltable handle for flexible placement. It is also stackable for optimal space management. The power cord can be wrapped around the device’s feet for easy storage. Its transreflective, backlit LCD display offers a large viewing angle, featuring a main display with 16 mm height and a secondary display for clear readings in any lighting condition. The 6,000-count dual display is enhanced by a 61-segment bar graph.
With a 0.09% accuracy and adjustable true RMS measurements for AC, DC, or AC+DC, the multimeter meets rigorous demands. Automatic or manual range selection ensures precise measurement results.
In addition to standard functions like voltage, current, resistance, continuity testing, and diode test, the MX5006 includes extended capabilities such as capacitance, frequency, and period measurements, and displays relative values in percentages.
Safe measurements across all ranges are assured by VLowZ inputs, which suppress ghost voltages, and an adjustable PWM filter for stable measurements in motor speed controllers. The MIN/MAX recording (100 ms) and PEAK function (1 ms) facilitate error detection. Automatic range selection for current from 50 µA to 20 A minimizes operator errors.
Technical Details:
- Display: 6,000 counts, dual display with bar graph
- Bandwidth: 100 kHz
- Voltage range: VLowZ, V AC, V DC, V AC+DC
- Current range: 50 µA to 20 A
- Frequency: up to 100 kHz
- Capacitance measurement: Yes
- Resistance measurement: Yes
- Diode test and audible continuity test: Yes
- Installation category: 1000 V CAT III
- Safety standards: IEC 61010
- Software compatibility: SX-DMM2 for PC connection (optional)
Included Items:
- MX5006 benchtop multimeter
- Power cable
- User manual
