Chauvin Arnoux MTX1032-C Differenzspannunssonde 2x50 MHz in the case of MTX Pack

Highlights:

• Differential voltage probe as an accessory for analog or digital oscilloscopes
• For displaying signals without a ground reference

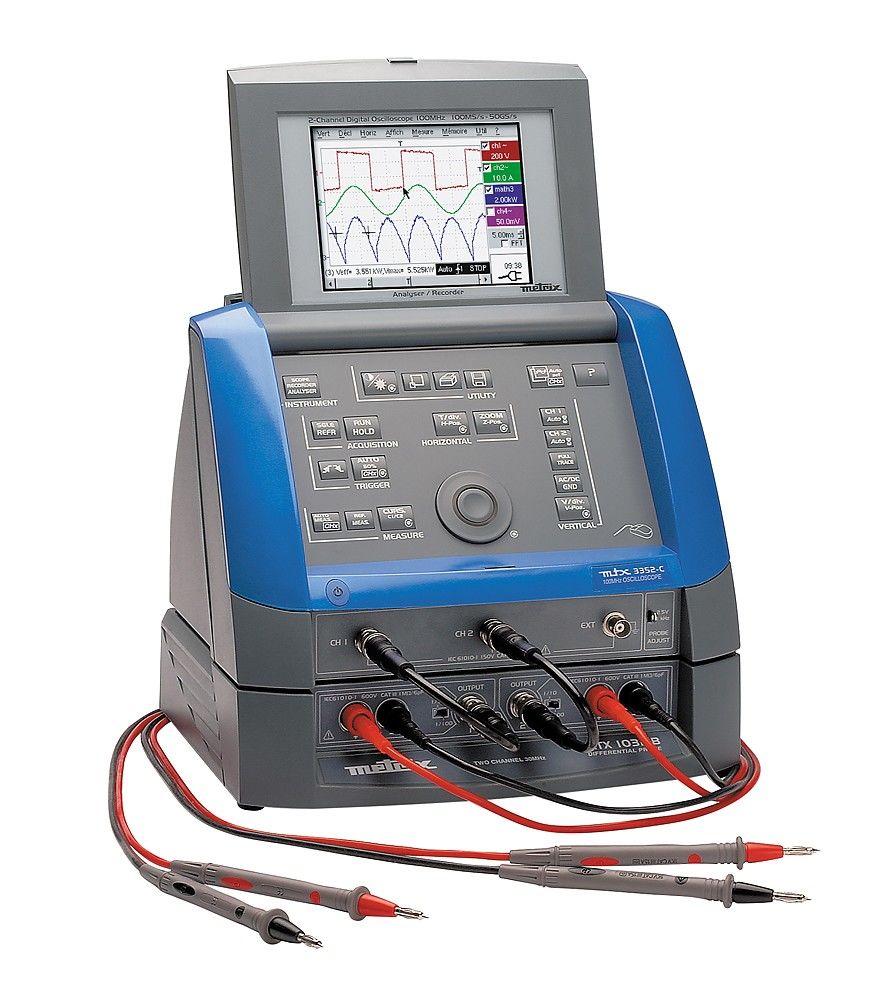

• Designed in a laboratory housing for standalone use or mechanically connected to MTX oscilloscopes
• 2 differential channels with coaxial connectors for use with oscilloscope probes
• 2 x 50 MHz bandwidth
• Suitable for Class 1 oscilloscopes

Description:

Our differential voltage probes, including the MTX 1032-B and MTX 1032-C models, are high-quality accessories designed for analog and digital oscilloscopes. These probes allow precise display of signals without a ground reference and provide flexibility with a laboratory housing design that supports standalone use or mechanical connection to MTX oscilloscopes. The MTX 1032-C offers a 50 MHz bandwidth and is rated for applications up to 600 V CAT II, compatible with coaxial connectors, banana plugs, and oscilloscope probes. The MTX 1032-B features a 30 MHz bandwidth and meets 600 V CAT III standards, primarily using banana plug connections.

Common technical specifications include two differential inputs with coaxial connectors, supporting a wide input voltage range of ±0.1V to ±400V. Powered via mains, these probes adhere to IEC 61010-1 safety standards, ensuring secure operation. They are also EMC-compliant according to NF EN 61326-1, providing robustness against electromagnetic interference.

Technical Details:

• Models:
- MTX 1032-B: 30 MHz bandwidth, 600 V CAT III, banana plugs
- MTX 1032-C: 50 MHz bandwidth, 600 V CAT II, coaxial and banana plugs

• Inputs: 2 differential inputs / coaxial connectors
• Differential voltage range: ±0.1V to ±400V
• Power supply: Mains
• Safety standards: IEC 61010-1
• EMC standards: NF EN 61326-1 + A1 + A2
• Dimensions: 270 x 250 x 63 mm
• Weight: 1.2 kg

Included Items:

• MTX 1032-B or MTX 1032-C differential voltage probe
• Power supply
• Documentation
