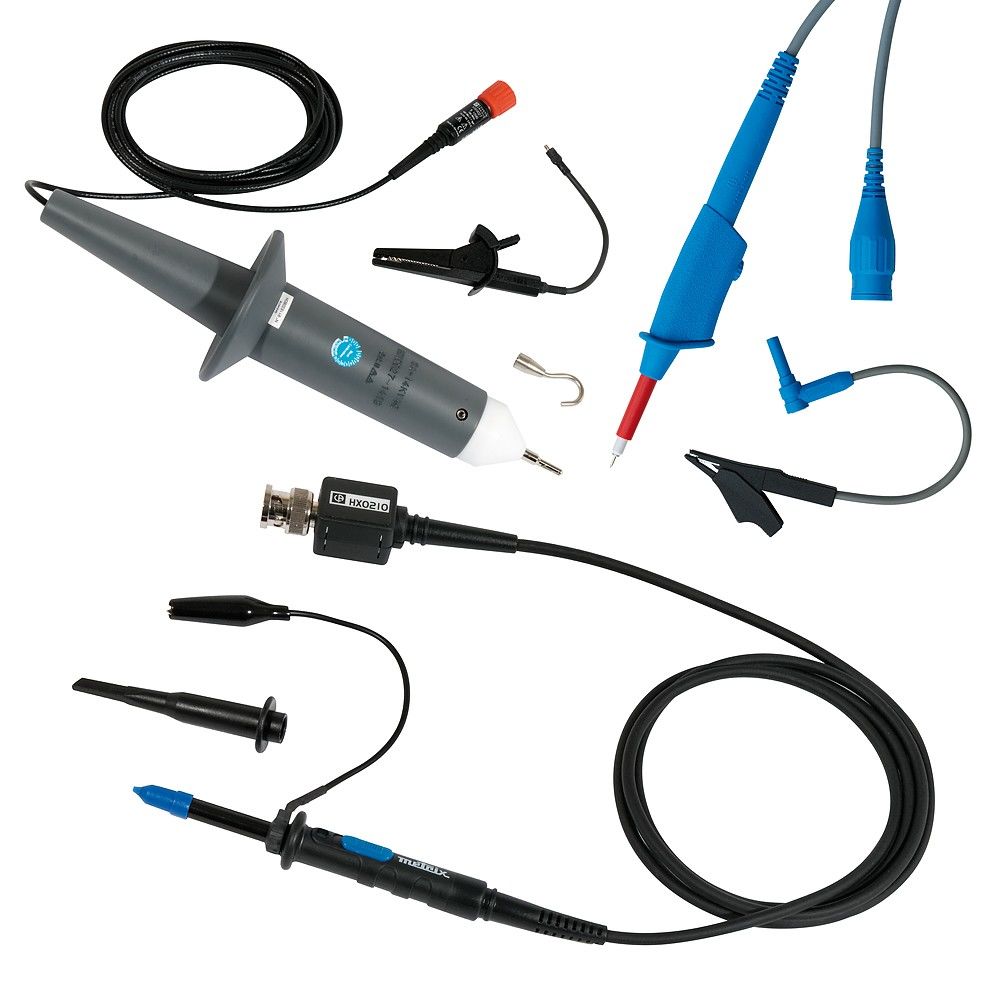

Chauvin Arnoux HX0057 Carrying case with accessories (each 1 pc + HX0030 HX0039 HX0031 + + SX-Metro)
485,57 EUR |
|||||||||||
( 577,83 EUR incl. VAT ) plus delivery charges |
|||||||||||
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
Lieske Part No.: | 134151 | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Mfg Part No: | HX0057 | ||||||||||
Weight: | 0.2 kg | ||||||||||
Graduated prices net
|
Product information for Chauvin Arnoux HX0057:
Highlights:
• Spectrum analyzer for versatile frequencies from 400 kHz to 1 GHz
• Suitable for EMC precompliance testing
• Direct connection to a PC via USB
• Horizontal display of up to 5000 points on the PC screen
• Report generation, screenshots, data export to Excel, …
• Q-Peak detection possible with near-field probes (HX0082) to simplify EMC precompliance tests
Description:
The MTX 1050 is a compact and economical spectrum analyzer specifically designed for EMC precompliance testing, functioning as a “blind” device without its own display and intended for direct PC connection. Its lightweight and portable design makes the MTX 1050 perfect for use in small and medium-sized businesses (SMBs) as well as educational institutions like engineering schools and technical colleges.
Covering a frequency range of 400 kHz to 1 GHz, the analyzer allows for versatile measurements. It offers high frequency stability at ±5 ppm per year and a wide dynamic range from -90 dBm to +20 dBm, ensuring precise and reliable results. The MTX 1050 features 6 sweep speeds and 3 analysis and 3 video filters, enabling it to adapt to various measurement needs. Combined with near-field probes such as the HX0082 and HX0083, Q-Peak detection can be utilized to simplify EMC testing.
Measurement data is displayed in color and high resolution on the PC, with a horizontal resolution of up to 5,000 points for detailed analysis. Up to four simultaneous measurements (Peak-Auto, marker, two delta cursors) can be performed. The Windows-compatible software supports report generation, screenshot capture, and data export to Excel. The “Plug & Play” USB connection ensures quick and easy setup, and the multilingual software enhances user experience.
Technical Data:
- Frequency range: 400 kHz to 1 GHz
- Application: EMC precompliance testing
- PC connection: USB “Plug & Play”
- Screen resolution: Horizontal resolution up to 5,000 points
- Dynamic range: -90 dBm to +20 dBm
- Frequency stability: ±5 ppm/year
- Sweep speeds: 6
- Analysis filters: 3
- Video filters: 3
- Demodulation: FM demodulation integrated
- Simultaneous measurements: 4 (Peak-Auto, marker, 2 delta cursors)
- Windows software: Report generation, screenshots, data export to Excel
- Storage: Unlimited configurations with plain text naming
Usage:
The MTX 1050 spectrum analyzer is ideal for technicians and engineers who need to conduct precise EMC precompliance tests or frequency analyses. Its compact design and direct PC connection make it perfect for both laboratory and field use. The comprehensive Windows software supports professional data analysis and report generation, making it a valuable resource for SMBs and educational institutions.
