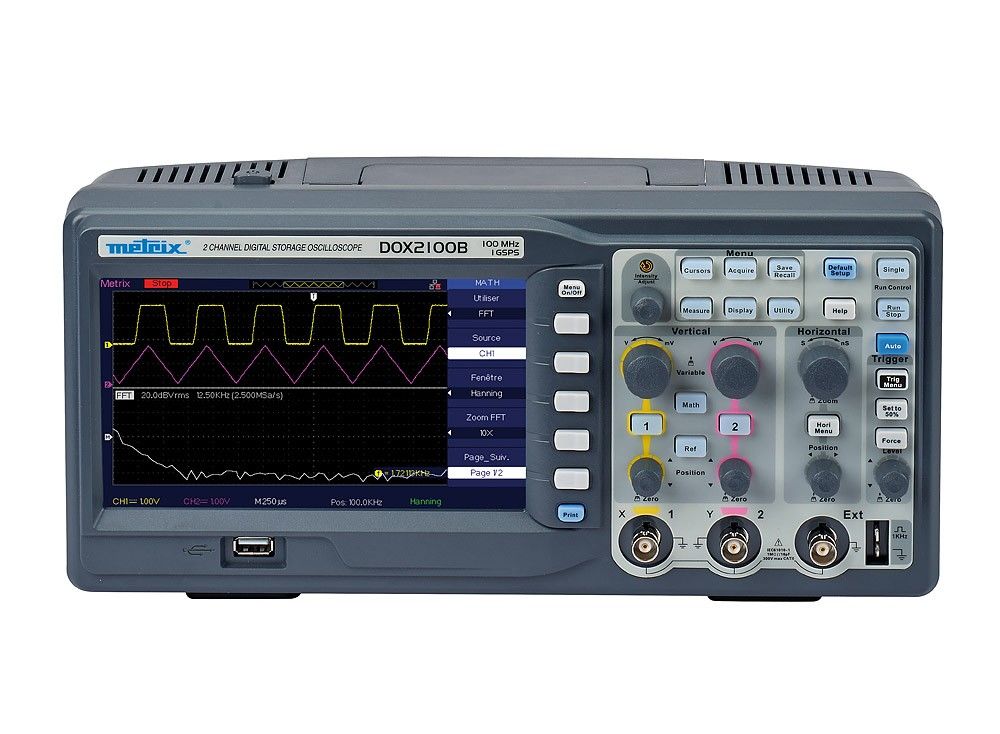

Chauvin Arnoux DOX2100B DOX 2100B Dig. Oscilloscope 2x100 MHz, color display, USB, Ethernet

Highlights:

• Digital benchtop oscilloscope with 2 channels, bandwidth up to 100 MHz, and large panoramic color display
• Maximum sampling rate of 500 MS/s (2 channels) or 1 GS/s (1 channel) in Single Shot mode, 50 GS/s in repetitive mode
• 12 measurement ranges with vertical sensitivity from 2 mV/div to 10 V/div
• 32 simultaneous automatic measurements on the screen and manual cursor measurements
• 5 MATH functions (including FFT) for detailed real-time analysis on 2 different displays
• Wide range of advanced functions: digital filters, auto-calibration, Pass/Fail, ROLL, RECORDER, etc.
• Multiple communication interfaces for data transfer to PC with EASYSCOPE software

Description:

The METRIX DOX2100B is a high-performance, digital benchtop oscilloscope that is easy to operate, with a compact design specifically suited for laboratory use. With two channels and a bandwidth of up to 100 MHz, the DOX2100B enables precise signal recording and in-depth analysis. The maximum sampling rate is 500 MS/s with two channels, 1 GS/s with a single channel in Single Shot mode, and up to 50 GS/s in repetitive mode.

The 7-inch ¼-VGA color display features up to 18 horizontal divisions and is fully customizable for optimal viewing. Vertical sensitivity ranges from 2 mV/div to 10 V/div, with a time base of 2.5 ns/div to 50 s/div. With a maximum memory depth of 2 million points, this oscilloscope provides detailed and thorough signal capture for professional analysis. Advanced functions include 5 MATH operations, real-time FFT analysis, auto-calibration, and multiple filtering options. The convenient PASS/FAIL function enables rapid testing against predefined envelopes.

The EASYSCOPE software facilitates remote control and data transfer to a PC, allowing for waveform and screenshot storage. Multiple interfaces, including USB Host and Device, enhance communication and integration with other devices. Equipped with a foldable handle and non-slip feet, the DOX2100B is easy to transport and stable on the workbench.

Technical Data:

• Bandwidth: 2 channels at 100 MHz + 1 external trigger channel
• Time base: 2.5 ns/div to 50 s/div
• Sampling rate: Single Shot mode 500 MS/s (2 channels), 1 GS/s (1 channel) / ETS mode 50 GS/s
• Max. memory depth: 2 million points
• Display: 7-inch ¼-VGA color screen
• Interface languages: Menu in 5 languages, contextual help in English
• Measurement capabilities: 32 automatic measurements + manual cursor measurements
• Data transfer: USB Host and Device for PC connection
• Safety standard: IEC 61010-1 / 300 V CAT II
• Additional functions: 5 MATH functions incl. FFT, digital filters, auto-calibration, PASS/FAIL test, ROLL, RECORDER
