Chauvin Arnoux DOX2070B DOX 2070B Dig. Oscilloscope 2x70 MHz, color display, USB, Ethernet

Highlights:

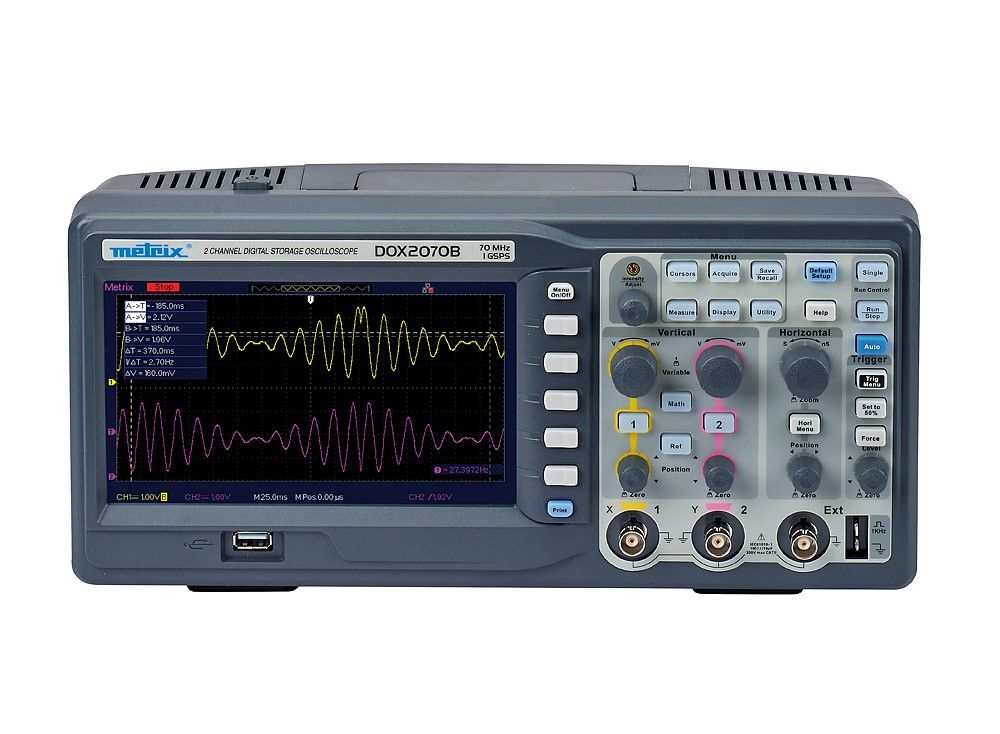

• Digital benchtop oscilloscope with 2 channels, bandwidth up to 70 MHz, and large panoramic color display
• Maximum sampling rate of 500 MS/s (2 channels) or 1 GS/s (1 channel) in Single Shot mode, 50 GS/s in repetitive mode
• 12 measurement ranges with vertical sensitivity from 2 mV/div to 10 V/div
• 32 simultaneous automatic measurements on the screen and manual cursor measurements
• 5 MATH functions (including FFT) for detailed real-time analysis on 2 different displays
• Wide range of advanced functions: digital filters, auto-calibration, Pass/Fail, ROLL, RECORDER, etc.
• Multiple communication interfaces for data transfer to PC with EASYSCOPE software

Description:

The METRIX DOX 2000B series digital benchtop oscilloscopes deliver high performance and user-friendly operation in a compact design, making them ideal for laboratory use. Equipped with two channels and up to 70 MHz bandwidth, the DOX 2070B model enables detailed measurements and precise signal recording. The maximum sampling rate is 500 MS/s with two channels or 1 GS/s with a single channel in Single Shot mode, and up to 50 GS/s in repetitive mode.

The 7-inch WVGA color LCD display (800x480 resolution) provides a generous view with up to 16 horizontal divisions, and the display settings are fully customizable. With vertical sensitivities ranging from 2 mV/div to 10 V/div and a time base from 2.5 ns/div to 50 s/div, the device provides highly accurate data. Five integrated MATH functions, including FFT, allow comprehensive real-time analysis and simultaneous display of signal curves. Additional features such as auto-calibration, digital filters, and the PASS/FAIL function make this oscilloscope highly versatile for various measurement requirements.

Intuitive operation is facilitated through rotary knobs and illuminated function buttons on the front panel. For data transfer to a PC, USB and Ethernet (RJ45) interfaces are available, supported by EASYSCOPE software, which allows device control and data storage. With its handle and non-slip feet, the oscilloscope is easily transportable and can be securely positioned on a workstation.

Technical Data:

• Bandwidth: 2 channels at 70 MHz + 1 external trigger channel
• Time base: 2.5 ns/div to 50 s/div with adjustable digital filters
• Sampling rate: Single Shot mode 500 MS/s (2 channels), 1 GS/s (1 channel) / Repetitive 50 GS/s
• Display: 7-inch WVGA color screen, resolution 800x480
• Interface language: 5 languages with on-screen help in FR/EN
• Signal acquisition: 2 channels + external trigger channel and complex trigger functions
• Vertical resolution: 8-bit
• Measurement capabilities: 32 automatic measurements, manual and automatic cursor measurements
• Data transfer: USB and Ethernet (RJ45) for PC connection
• Safety standard: IEC 61010-1 / 300 V CAT II
• Additional functions: 5 MATH functions incl. FFT, auto-calibration, digital filters, PASS/FAIL test, ROLL, RECORDER
