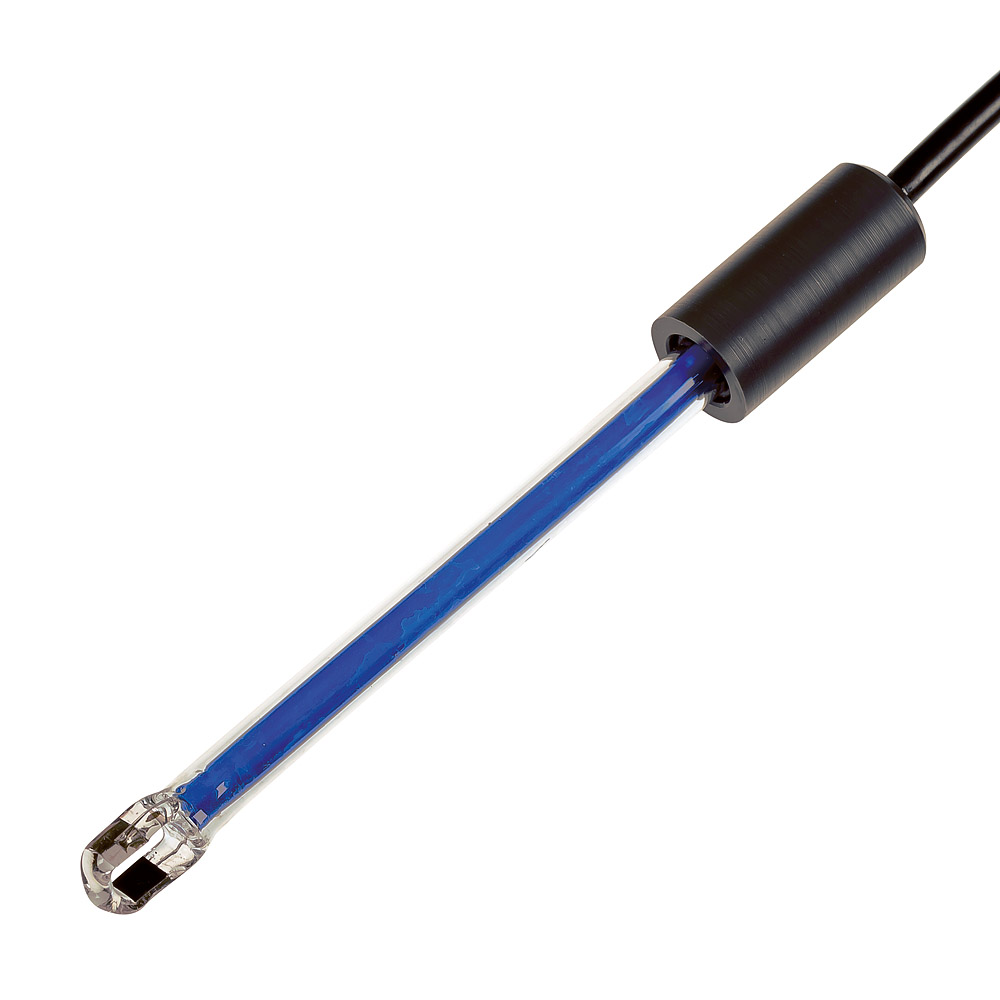

Chauvin Arnoux BCP4 conductivity cell S7 plug

Your rating:
Average rating
product review for Chauvin Arnoux BCP4 conductivity cell S7 plug
( 0 / 5 ) 0 ratings
Chauvin Arnoux BCP4-S7
This image may differ from the desired article.
360,00 EUR
( 428,40 EUR incl. VAT )
≈ £299.88  |  ≈ $394.92
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x Chauvin Arnoux BCP4 conductivity cell S7 plug
Datasheet:file_download Download
Lieske Part No.:1142354
Mfg Part No: BCP4-S7
UPC/EAN: 3663653005821
Weight:0.123 kg
Graduated prices net
From piecesPrice per pieces
4357,30 EUR
8354,60 EUR
12351,90 EUR
16349,20 EUR

Product information for Chauvin Arnoux BCP4-S7:

The BCP4-S7 is a conductivity cell from the manufacturer Chauvin Arnoux, specifically designed for precise measurements in laboratory environments. It features two parallel platinum electrodes integrated into a glass body, ensuring a cell constant of approximately 1 cm⁻¹. This design enables reliable and accurate measurements in the conductivity range from 0.1 µS to 200 mS. The cell is not equipped with an integrated temperature sensor, so for temperature-compensated measurements, an external temperature sensor must be included in the measurement system to refer the conductivity to a reference temperature.

Applications

The BCP4-S7 is particularly suitable for applications in the laboratory where high measurement accuracy is required, even at low conductivity levels. Due to its robust glass construction, it is suitable for viscous samples or liquids containing suspended particles, as the electrodes are not easily clogged. The cell is not intended for use with aggressive chemicals or at temperatures above 80 °C, as the operating temperature according to the manufacturer's specifications reaches up to 80 °C.

Functions and Equipment in Detail

The cell consists of a glass body enclosing the two platinum electrodes, ensuring a uniform field distribution. The platinum electrodes are arranged in a two-pole configuration, allowing for easy integration into standard conductivity meters. The cell constant of approximately 1 cm⁻¹ is standard for many laboratory applications and enables direct conversion of measured resistances into conductivity values. The cell is equipped with an S7 connector, designed for connection to compatible measuring instruments.

Technology Explained Simply

The conductivity of a liquid is determined by the mobility of ions in the solution. The BCP4-S7 measures the electrical resistance between the two platinum electrodes and calculates the conductivity from this. Since conductivity is strongly temperature-dependent, temperature compensation is necessary to obtain comparable measurement results. The cell itself does not measure temperature, so an external temperature sensor must be integrated into the measurement system to correct the readings accordingly.

Compatibility and Accessories

The BCP4-S7 is equipped with an S7 connector, suitable for connection to measuring instruments from Chauvin Arnoux and other manufacturers that support this connector type. Various ordering variants for connectors are available to ensure compatibility with different devices.

Mounting and Installation

The BCP4-S7 is mounted by screwing the S7 connector to the measuring instrument. The cell is directly immersed into the liquid to be measured. The cable length is 1 m, which is sufficient to position the cell in a laboratory beaker or test tube while the device remains outside the container. The glass construction requires careful handling to avoid damage.

Advantages in Operation

The BCP4-S7 offers high measurement accuracy, especially at low conductivity values, making it particularly suitable for precise laboratory analyses. The robust glass construction protects the electrodes from contamination and allows use with viscous or particulate samples. The use of an S7 connector ensures a simple and secure connection to compatible measuring instruments. The cell is designed for use in laboratory environments where high reproducibility of measurement results is required.

General
Cell constantca. 1 cm⁻¹
Measuring range0.1 µS
ConnectionS7 for screwing
Electrode materialPlatinum
Electrode shaftGlass
Operation temperature0 to 80 °C
Cable length1 m
Temperature sensorNo


Product data sheet
Datasheet for Chauvin Arnoux BCP4-S7, EAN: 3663653005821

Questions & answers

What is the delivery time of Chauvin Arnoux BCP4 conductivity cell S7 plug?

The article Chauvin Arnoux BCP4 conductivity cell S7 plug is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Chauvin Arnoux BCP4-S7 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Chauvin Arnoux BCP4 conductivity cell S7 plug always at the best possible price. We can give you a discount of 2% on Chauvin Arnoux BCP4 conductivity cell S7 plug if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Chauvin Arnoux BCP4 conductivity cell S7 plug we can offer you a price of 357,30 EUR per piece. The more you buy, the cheaper the article will be.
